- ABB AF146-30-11-13
AF146-30-11-13

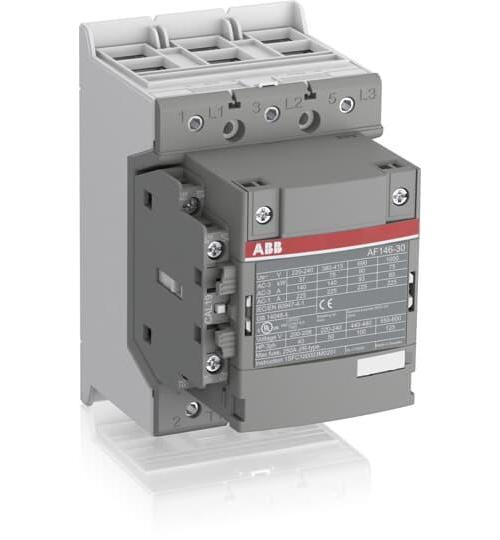

ABB AF146-30-11-13 AF Series Non-Reversing Line Contactor, 100 to 250 VAC/VDC V Coil, 200 A, 3NO Contact, 3 Poles
- CP#:
- Item#: AF146-30-11-13
- Mfr#: AF146-30-11-13
- UPC: 888614167636
- For connection with built-in cable clamps
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 225 A at 1000 V, 200 A at 1000 V, 175 A at 1000 V, 225 A at 690 V, 200 A at 690 V, 175 A at 690 V rated operational current AC-1
- 60 A at 1000 V, 146 A at 220/230/240 V, 146 A at 380/400 V, 146 A at 415 V, 146 A at 440 V, 93 A at 500 V, 93 A at 690 V rated operational current AC-3
- 40 hp at 200 VAC 3 ph, 40 hp at 208 VAC 3 ph, 50 hp at 220 to 240 VAC 3 ph, 100 hp at 440 to 480 VAC 3 ph, 125 hp at 550 to 600 VAC 3 ph
- 75 kW at 1000 V, 45 kW at 220/230/240 V, 75 kW at 380/400 V, 75 kW at 415 V, 90 kW at 440 V, 90 kW at 500 V, 90 kW at 690 V
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
A 3 ph Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100 to 250 V, 50/60 Hz and DC.
ABB Line Contactor, Non-Reversing, Series: AF Series, 100 to 250 VAC/VDC Coil, 200 A Maximum Load Current, 40 hp, 50 hp, 100 hp, 125 hp Coil, 3 Pole, 75/45/90 kW Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 225 A at 1000 V Contact, AF146 Size, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 90 mm W x 126 mm D x 150 mm H Dimensions
SPECIFICATIONS
| Enclosure Type | : | IP00/IP20 |
| Type | : | Non-Reversing |
| Coil Voltage | : | 100 to 250 VAC/VDC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -40 to 70 deg C |
| Dimensions | : | 90 mm W x 126 mm D x 150 mm H |
| Size | : | AF146 |
| Terminal Type | : | Screw |
| Wattage | : | 75/45/90 kW |
| Coil Power Rating | : | 40 hp, 50 hp, 100 hp, 125 hp |
| Contact Rating | : | 225 A at 1000 V |
| Operating Cycles | : | 5000000 Cycles |
| Series | : | AF Series |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 200 A |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1020/ABB_AF146-30-11-13_Specification_Sheet.pdf
