- ABB AF145-30-11-70
AF145-30-11-70

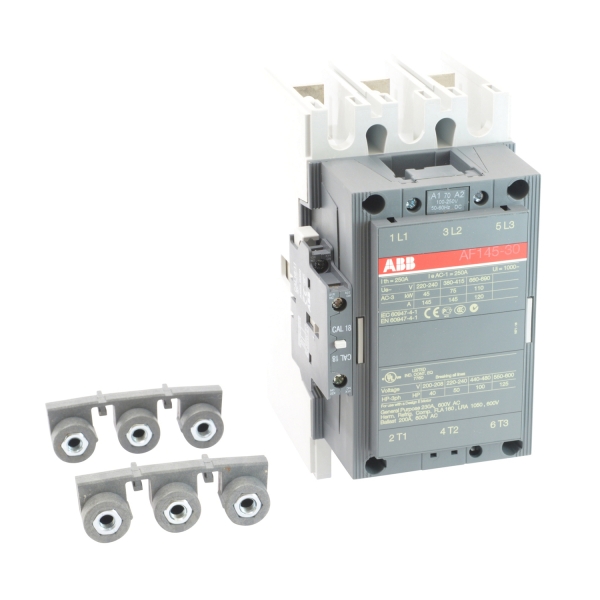

ABB AF145-30-11-70 IEC Contactor, 100/250 VDC V Coil, 145 A, 3NO Contact, 3 Poles
- CP#:
- Item#: AF145-30-11-70
- Mfr#: AF145-30-11-70
- UPC: 662019824079
- 110 kW at 690/1000 VAC, 90 kW at 500 VAC, 75 kW at 415/440 VAC, 75 kW at 380/400 VAC, 45 kW at 220/230/240 VAC wattage
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB IEC Contactor, Series: AF Series, 100/250 VDC Coil, 145 A Maximum Load Current, 100 hp Coil, 3 Pole, 50/60 Hz Frequency, 110 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Terminal, IP20 Enclosure, 300 Cycles Operating Cycles, -40 to 70 deg C Operating, DIN Rail Mounting, 8.96 in H x 4.13 in W x 6.29 in D Dimensions
SPECIFICATIONS
| Mounting Type | : | DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP20 |
| Coil Voltage | : | 100/250 VDC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -40 to 70 deg C |
| Dimensions | : | 8.96 in H x 4.13 in W x 6.29 in D |
| Terminal Type | : | Screw |
| Wattage | : | 110 kW |
| Contact Type | : | Non-Reversing |
| Coil Power Rating | : | 100 hp |
| Operating Cycles | : | 300 Cycles |
| Series | : | AF Series |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 145 A |
DOCUMENTS
-
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1503822619499.pdf
