AF12-30-10-13

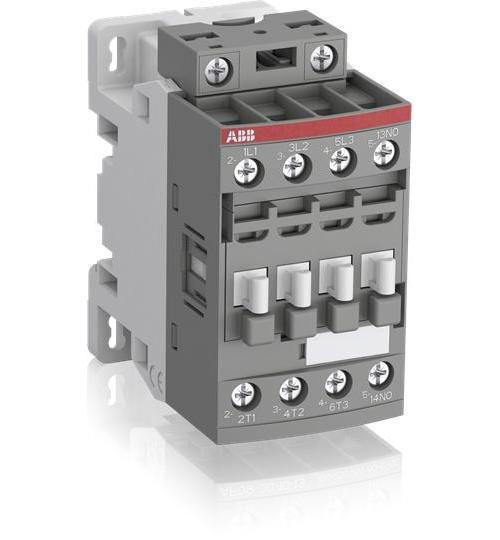

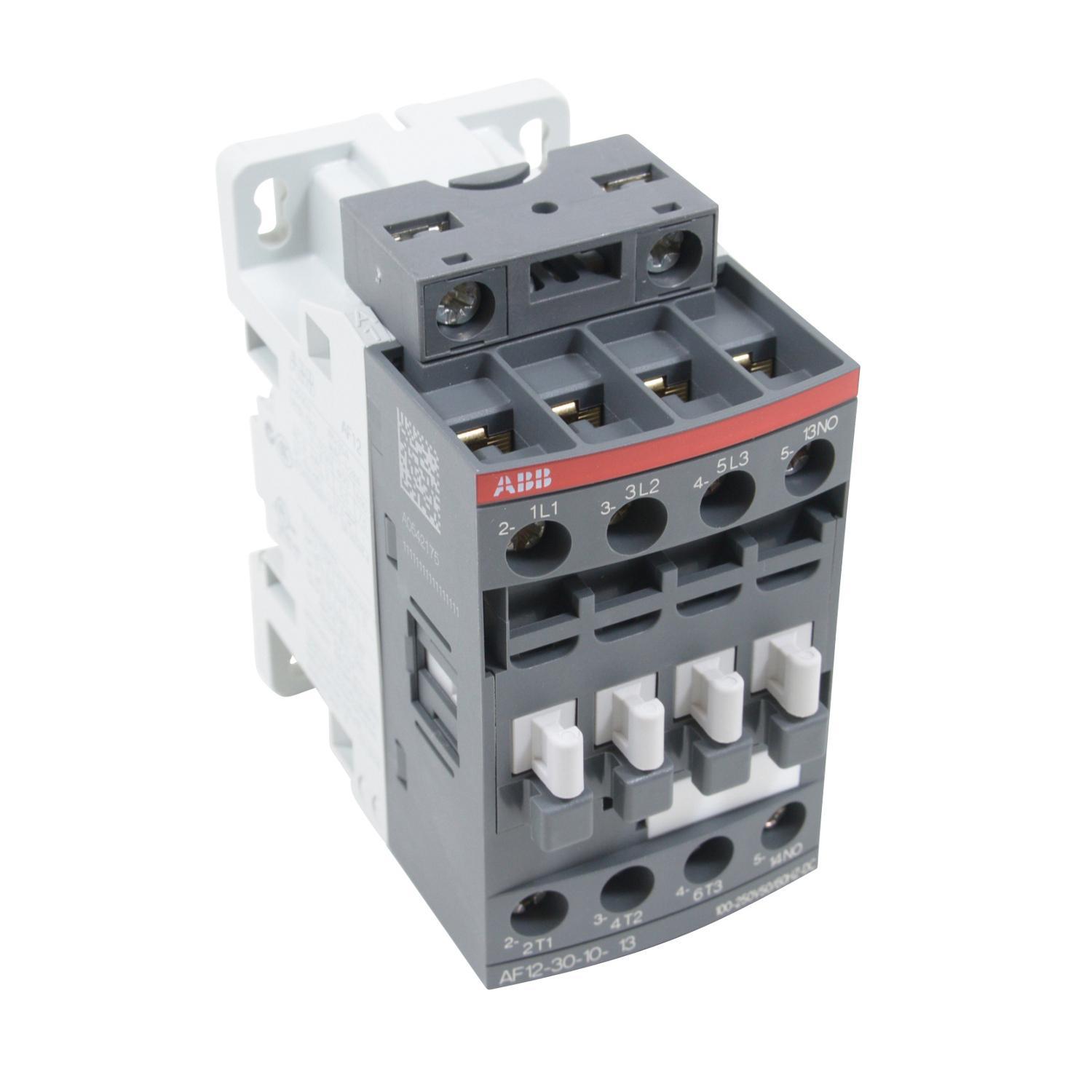

ABB AF12-30-10-13 AF12 3-Phase Contactor, 100 VAC, 250 VDC V Coil, 28 A, 3NO Contact, 3 Poles
- CP#:
- Item#: AF12-30-10-13
- Mfr#: AF12-30-10-13
- UPC: 804325538404
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives and together with ABB wide product offering, an optimal configuration, every time.
ABB Contactor, 3-Phase, Series: AF12, 100 VAC, 250 VDC Coil, 28 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 7.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1 Auxiliary Contact, 690 VAC Contact, 45 x 86 x 77 mm Size, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 77 mm D Dimensions
SPECIFICATIONS
| Mounting Type | : | DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP20 |
| Type | : | 3-Phase |
| Coil Voltage | : | 100 VAC, 250 VDC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -60 to 80 deg C |
| Dimensions | : | 86 mm H x 45 mm W x 77 mm D |
| Size | : | 45 x 86 x 77 mm |
| Terminal Type | : | Screw |
| Wattage | : | 7.5 kW |
| Contact Type | : | Non-Reversing |
| Contact Rating | : | 690 VAC |
| Operating Cycles | : | 3600 Cycles |
| Series | : | AF12 |
| Number of Auxiliary Contacts | : | 1 |
| Maximum Load Current | : | 28 A |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/10000/ABB_AF12-30-01-41_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/10000/ABB_AF12-30-10-11_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1019/ABB_AF12-30-10-13_Specification_Sheet.pdf
