AF116-30-11-13

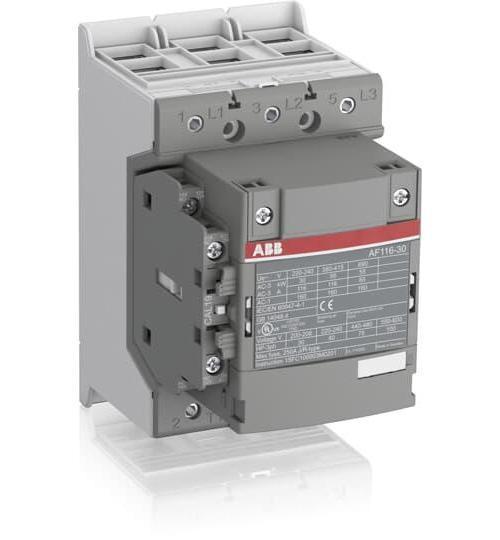

ABB AF116-30-11-13 3-Phase AC/DC Operated IEC Contactor, 100 to 250 VAC/VDC V Coil, 104 A, 3NO Contact, 3 Poles
- CP#:
- Item#: AF116-30-11-13
- Mfr#: AF116-30-11-13
- UPC: 888614152649
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 55 kW at 3-phase 400 V IEC, 75 hp at 440 to 480 VAC, 100 hp at 550 to 600 VAC
- 104 A at 220 to 240 VAC 3-phase UL/CSA
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB IEC Contactor, 3-Phase AC/DC Operated, 100 to 250 VAC/VDC Coil, 104 A Maximum Load Current, 55 kW, 75 hp, 100 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP00/IP20 Enclosure, 5000000 Cycles Operating Cycles, -25 to 50 deg C Operating, 150 mm H x 90 mm W x 126 mm D Dimensions
SPECIFICATIONS
| Connection Type | : | Cable Clamp |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP00/IP20 |
| Type | : | 3-Phase AC/DC Operated |
| Coil Voltage | : | 100 to 250 VAC/VDC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -25 to 50 deg C |
| Dimensions | : | 150 mm H x 90 mm W x 126 mm D |
| Terminal Type | : | Screw |
| Coil Power Rating | : | 55 kW, 75 hp, 100 hp |
| Operating Cycles | : | 5000000 Cycles |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 104 A |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1019/ABB_AF116-30-11-13_Specification_Sheet.pdf
