AF110-30-11-70

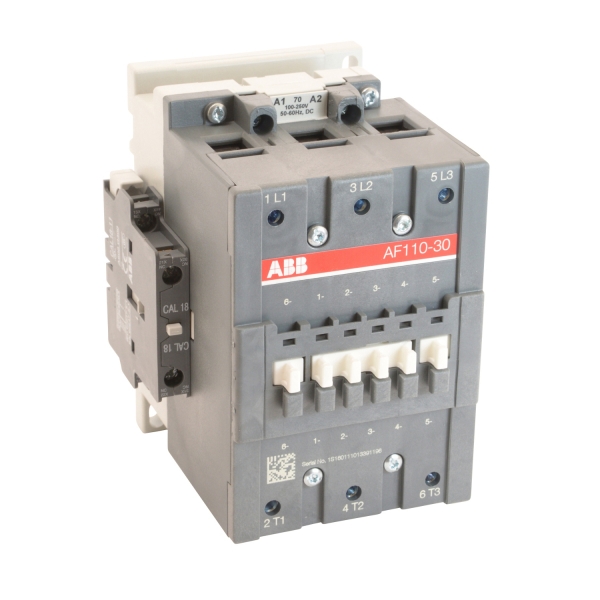

ABB AF110-30-11-70 Contactor, 100 VAC, 250 VDC V Coil, 150 A, 3NO Contact, 3 Poles

  • Item#: AF110-30-11-70
  • Mfr#: AF110-30-11-70
  • UPC: 662019870786
  • Non-reversing across the line contactor
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives and together with ABB wide product offering, an optimal configuration, every time.

ABB Contactor, Series: AF110, 100 VAC, 250 VDC Coil, 150 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 75 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 690 VAC Contact, Screw Terminal, NEMA 4/8 Enclosure, -60 to 80 deg C Operating, Snap-On/DIN Rail Mounting, 148 mm H x 102 mm W x 123.5 mm D Dimensions

SPECIFICATIONS

Mounting Type      :      Snap-On/DIN Rail
Frequency Rating      :      50/60 Hz
Enclosure Type      :      NEMA 4/8
Coil Voltage      :      100 VAC, 250 VDC
Contact Configuration      :      3NO
Number of Poles      :      3
Operating Temperature      :      -60 to 80 deg C
Dimensions      :      148 mm H x 102 mm W x 123.5 mm D
Terminal Type      :      Screw
Wattage      :      75 kW
Contact Type      :      Non-Reversing
Contact Rating      :      690 VAC
Series      :      AF110
Number of Auxiliary Contacts      :      1NO-1NC
Maximum Load Current      :      150 A

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_AF09_30_01_11_Catalog.pdf
  • pdf
    Datasheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_AF110_30_11_70_Datasheet.pdf
