- ABB ACS880-01-206A-2
ACS880-01-206A-2

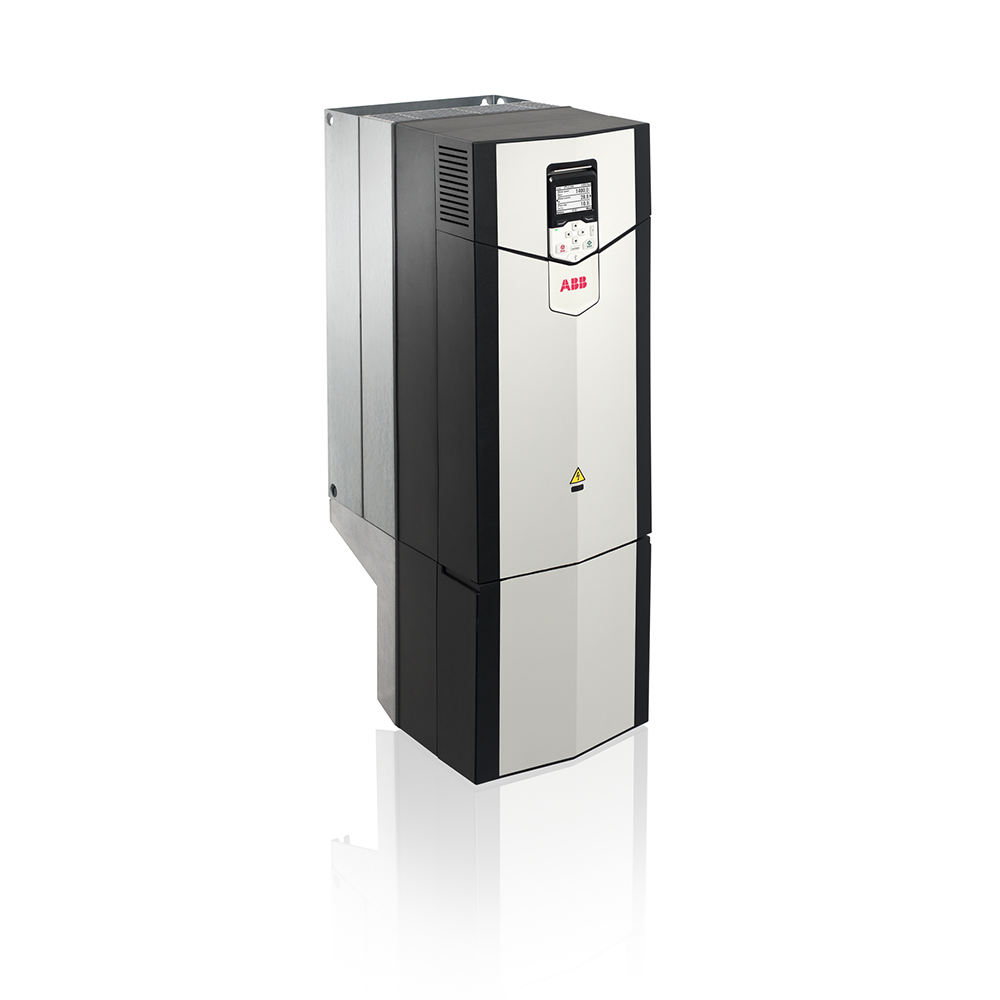

ABB ACS880-01-206A-2 3-Phase Low Voltage Single Drive AC Drive, 208 to 240 VAC Input/240 VAC Output, 206 A, 60 hp, 75 hp, 11.2 in W x 14.4 in D
- CP#:
- Item#: ACS880-01-206A-2
- Mfr#: ACS880-01-206A-2
- UPC: 662348064115
- Compact design for easy installation, commissioning and maintenance
- Integrated safety including safe torque off (STO) as standard and the optional safety functions module (TUV Nord certificate)
- Supports various motor types including synchronous reluctance motors
- Intuitive control panel with USB connection
- Removable memory unit for easy maintenance
- Drive composer PC tool for commissioning and configuration
- Primary control program - common software used throughout the ACS580 drive series
- Control unit supporting a wide range of fieldbuses, feedback devices and input/output options
- Coated boards as standard
- Controllable cooling fan
- Incoming air temperature measurement for protecting the drive from different temperature related failure mechanisms
- Built-in choke
- 75 hp light duty, 60 hp heavy duty horsepower rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Built on ABB all compatible drives architecture you have unprecedented levels of compatibility, flexibility and ease-of-use. Compact wall mounted drives with all important features built-in the drive, saving installation space and time. Enjoy premium control of virtually any type of AC motor with direct torque control (DTC), including permanent magnet motors and synchronous reluctance motors. Flexibility is thanks to universal connectivity and a broad range of internal and external options.
ABB AC Drive, 3-Phase Low Voltage Single Drive, Series: ACS880, 208 to 240 VAC Input/240 VAC Output, 206 A, 60 hp, 75 hp, 11.2 in Width, 14.4 in Depth, 34.66 in Height, UL Type 1/IP21 Enclosure, Local or Remote Mounted Wireless Bluetooth LCD Display and Keypad Display, Wall Mounting, Sheet Steel, Traffic Black, Hot Dipped Zinc
SPECIFICATIONS
| Amperage Rating | : | 206 A |
| Enclosure Type | : | UL Type 1, IP21 |
| Horsepower | : | 60 hp, 75 hp |
| Length | : | 14.4 in |
| Type | : | ACS880 |
| Width | : | 11.2 in |
| Height | : | 34.66 in |
| Mounting Type | : | Wall |
| Supply Voltage | : | 208-240 VAC |
| Display Type | : | Local or Remote Mounted Wireless Bluetooth LCD Display and Keypad |
| Color | : | Traffic Black |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/103/ABB_ACS880_01_014A_5_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/666/IDW_DOCUMENT_d10d93f7be9c078daf559f04729205fedc0730e008083b1a1f8fdc24b7aa8910.pdf
