ACS550-U1-180A-4

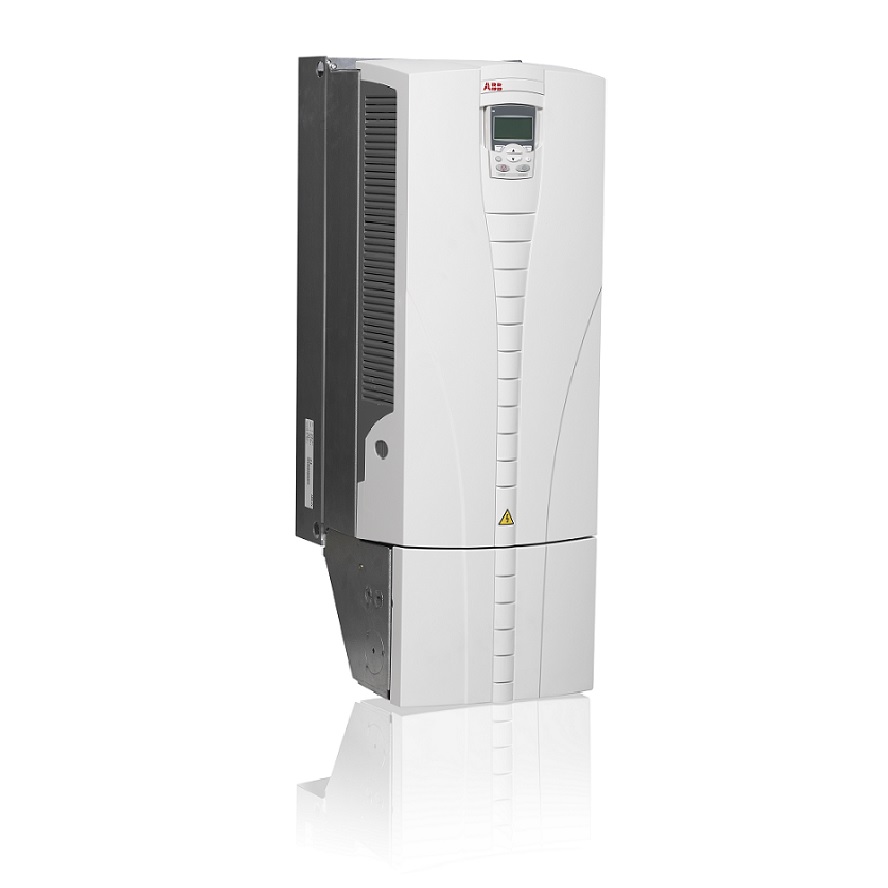

ABB ACS550-U1-180A-4 3-Phase Low Voltage General Purpose AC Drive, 380 to 480 VAC Input/480 VAC Output, 180 A, 125 hp, 150 hp, 11.9 in W x 15.8 in D
- CP#:
- Item#: ACS550-U1-180A-4
- Mfr#: ACS550-U1-180A-4
- UPC: 662348050590
- Advanced control panel permitting intuitive operation
- Many assistants including start-up, drive optimizer, real time clock, diagnostics, maintenance, serial and PID
- Two soft keys that change according to the operator panel state
- Field upgradeable firmware
- Easy connection of cables
- New conduit box is suitable for US and Europe
- Optional plug-in fieldbus modules
- Removable operator panel
- Only Class T fuses required for high speed short circuit protection
- Smaller physical size of internal option slots
- FlashDrop programming (unpowered drive)
- Sensorless vector control
- Integral EMC filter as standard
- Built-in Modbus-RTU and numerous internally mountable fieldbus adapters
- Coated boards for harsh environments
- Reduced size and weight with patented swinging choke - equivalent to a 5% line impedance
- NEMA 12 enclosure does not require derating
- 150 hp normal duty, 125 hp heavy duty horsepower rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB standard drives can be used in a wide range of industries. These drives are ideal in those situations where there is a need for simplicity to install, commission and use and where customizing or special product engineering is not required. The drives include several features as standard, such as swinging choke, EMC filter and control panel. Energy efficiency achieved with ABB standard drives can be easily monitored using the built-in counters, which display energy savings in kilowatt hours, carbon dioxide emissions or local currencies.
ABB AC Drive, 3-Phase Low Voltage General Purpose, Series: ACS550, 380 to 480 VAC Input/480 VAC Output, 180 A, 125 hp, 150 hp, 11.9 in Width, 15.8 in Depth, 35 in Height, NEMA 1/UL Type 1/IP21 Enclosure, Advanced Control Panel Display, Wall Mounting, Sheet Steel, Gray/White, Hot Dipped Zinc
SPECIFICATIONS
| Amperage Rating | : | 180 A |
| Enclosure Type | : | NEMA 1/UL Type 1/IP21 |
| Horsepower | : | 125 hp, 150 hp |
| Type | : | 3-Phase Low Voltage General Purpose |
| Width | : | 11.9 in |
| Height | : | 35 in |
| Mounting Type | : | Wall |
| Display Type | : | Advanced Control Panel |
| Color | : | Gray/White |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/103/ABB_ACS550_PC_011A_6_Catalog.pdf -
Owners/User Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/103/ABB_ACS550_PC_011A_6_User_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/480/IDW_DOCUMENT_86c26b81b67322168b02a99aa16feb125853eac5d95f0a3300af6a921c2cc1c6.pdf
