ACS550-U1-097A-4

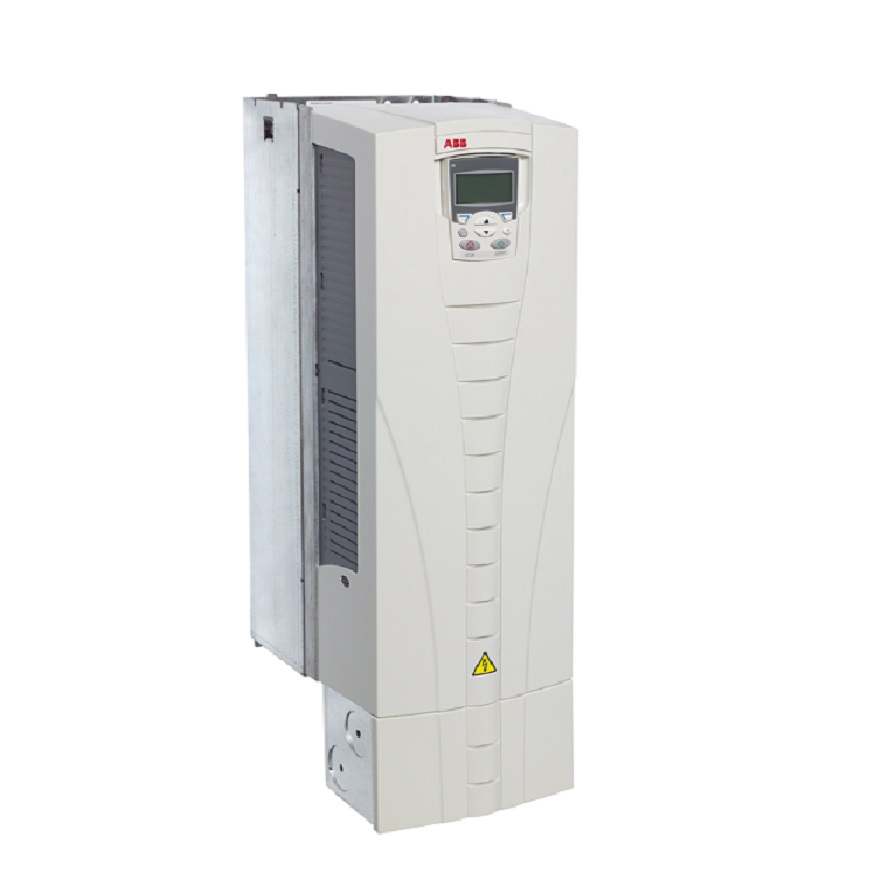

ABB ACS550-U1-097A-4 AC Drive With EMC Filter, 480 VAC, 75 A, 77 hp, 8 in W x 10.3 in D
- CP#:
- Item#: ACS550-U1-097A-4
- Mfr#: ACS550-U1-097A-4
- UPC: 662348049730
- Advanced control panel permitting intuitive operation
- Sensorless vector control
- Integral EMC filter as standard
- Built-in Modbus RTU and numerous internally mountable field bus adapters
- Coated boards for harsh environments
- Advanced control panel
- Reduced installation time, secure cable connections
- Flashdrop faster and easier drive set-up and programming
- Coated boards, longer lifetime in hostile environments - reduced servicing requirements
- 96 A normal duty, 77 A heavy duty
- 75 hp normal duty, 60 hp heavy duty
- R5 frame
- 3 PH input/output
- 5 to 104 deg F, 104 to 122 deg F, No frost allowed, switch 4 KHz, PN and I2 derated to 90% environmental condition ambient temperature
- Rated current available at 0 to 1000 M (3300 ft) Re altitude output current
- 115/230 VAC digital input interface
- Advanced control panel display
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The ABB ACS550 AC drive combines a sophisticated microprocessor with an advanced IGBT power switching technology to deliver V/Hz, Closed Loop Flux Vector and Sensorless Vector control of AC motors. Its intuitive control panel offers numerous benefits making it the most user-friendly panel in the drives industry. The extensive library of pre programmed application macros maximizes convenience and minimizes start-up time. This drive can handle the most demanding industrial applications in an efficient, dependable and economic manner.
ABB AC Drive, Series: ACS550, 480 VAC, 75 A, 77 hp, 8 in Width, 10.3 in Depth, 27.1 in Height, NEMA 1/IP21 Enclosure, LCD, Wall Mount
SPECIFICATIONS
| Amperage Rating | : | 75 A |
| Enclosure Type | : | NEMA 1/IP21 |
| Horsepower | : | 77 hp |
| Width | : | 8 in |
| Height | : | 27.1 in |
| Mounting Type | : | Wall |
| Display Type | : | LCD |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/480/IDW_DOCUMENT_86c26b81b67322168b02a99aa16feb125853eac5d95f0a3300af6a921c2cc1c6.pdf
