- ABB ACS550-U1-012A-4
ACS550-U1-012A-4

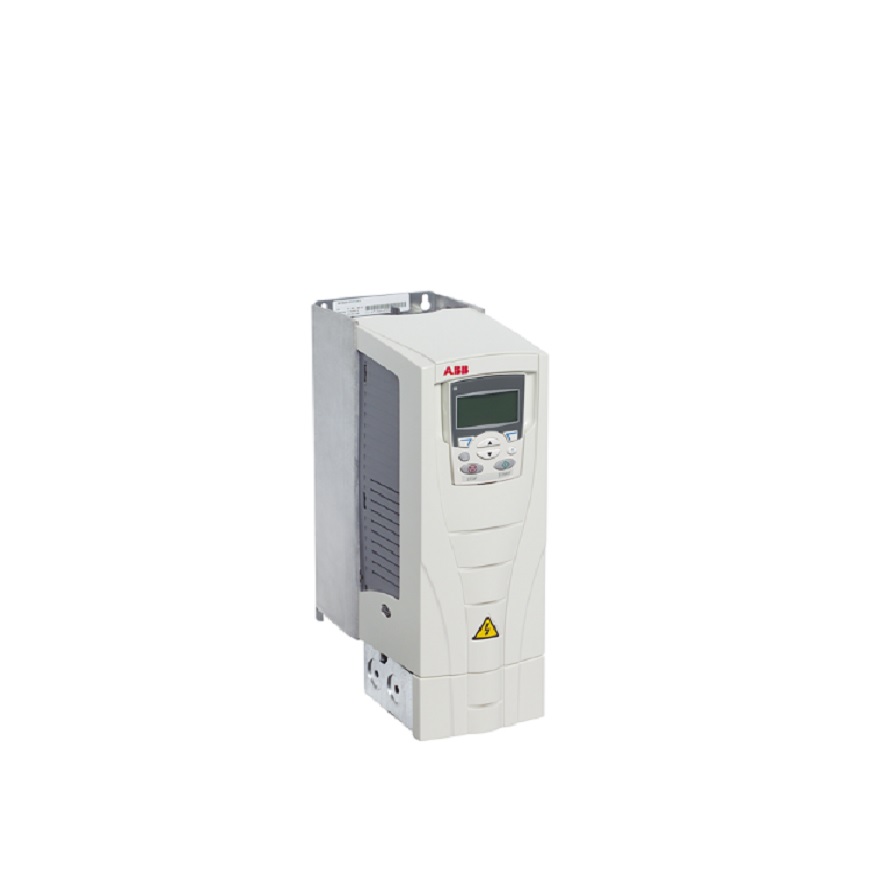

ABB ACS550-U1-012A-4 AC Drive With EMC Filter, 480 VAC, 7.5 A, 8.8 hp, 4.9 in W x 8.3 in D
- CP#:
- Item#: ACS550-U1-012A-4
- Mfr#: ACS550-U1-012A-4
- UPC: 662348046067
- Advanced control panel permitting intuitive operation
- Sensorless vector control
- Integral EMC filter as standard
- Built-in Modbus RTU and numerous internally mountable field bus adapters
- Coated boards for harsh environments
- Advanced control panel
- Reduced installation time, secure cable connections
- Flashdrop faster and easier drive set-up and programming
- Coated boards, longer lifetime in hostile environments - reduced servicing requirements
- 11.9 A normal duty, 8.8 A heavy duty
- 7.5 hp normal duty, 5 hp heavy duty
- R3 frame
- 3 ph input/output
- 5 to 104 deg F, 104 to 122 deg F, No frost allowed, switch 4 KHz, PN and I2 derated to 90% environmental condition ambient temperature
- Rated current available at 0 to 1000 M (3300 ft) Re altitude output current
- 115/230 VAC digital input interface
- Advanced control panel display
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The ABB ACS550 AC drive combines a sophisticated microprocessor with an advanced IGBT power switching technology to deliver V/Hz, Closed Loop Flux Vector and Sensorless Vector control of AC motors. Its intuitive control panel offers numerous benefits making it the most user-friendly panel in the drives industry. The extensive library of pre programmed application macros maximizes convenience and minimizes start-up time. This drive can handle the most demanding industrial applications in an efficient, dependable and economic manner.
ABB AC Drive, Series: ACS550, 480 VAC, 7.5 A, 8.8 hp, 4.9 in Width, 8.3 in Depth, 14-1/2 in Height, NEMA 1/IP21 Enclosure, LCD, Wall Mount
PROP65 - This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SPECIFICATIONS
| Amperage Rating | : | 7.5 A |
| Enclosure Type | : | NEMA 1/IP21 |
| Horsepower | : | 8.8 hp |
| Width | : | 4.9 in |
| Height | : | 14-1/2 in |
| Mounting Type | : | Wall |
| Display Type | : | LCD |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/480/IDW_DOCUMENT_86c26b81b67322168b02a99aa16feb125853eac5d95f0a3300af6a921c2cc1c6.pdf
