ACS380-040S-03A3-4

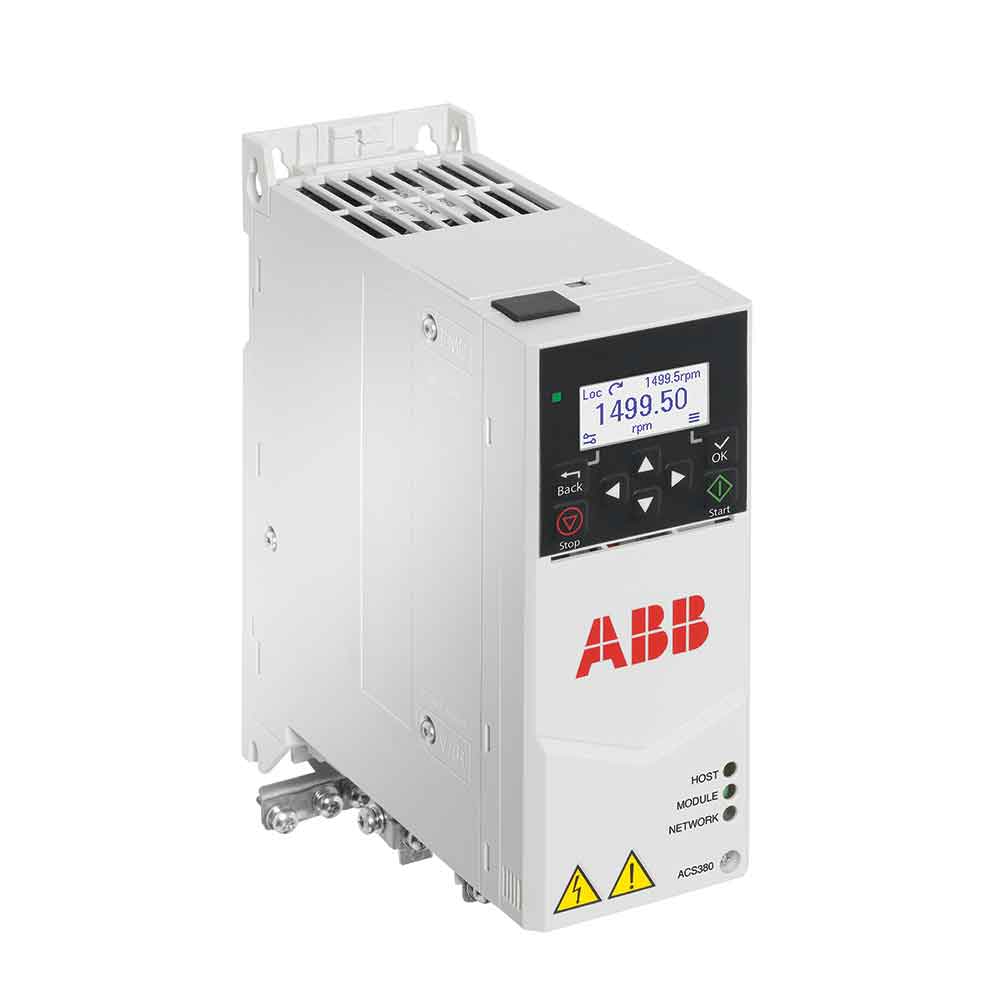

ABB ACS380-040S-03A3-4 3-Phase Low Voltage Machinery AC Drive, 380 to 480 VAC Input/480 VAC Output, 3.3 A, 1 hp, 1-1/2 hp, 2.76 in W x 6.85 in D
- CP#:
- Item#: ACS380-040S-03A3-4
- Mfr#: ACS380-040S-03A3-4
- UPC: 662348087312
- Worldwide availability and service
- High performance motor control with world class connectivity options
- Adaptive programming with sequence programming
- CCA-01 cold configuration tool
- Limit to limit switch control and multiple interfaces for flexible integration
- Graphical icon based integrated control panel
- 3-phase current with sensorless vector control for induction and permanent magnet motors
- Two process PID functions
- Maintenance timers and counters
- Factory configured variants for I/O + Modbus or fieldbus communications
- Torque memory for lifting applications and advanced mechanical brake control
- Three DC bus connections for both common DC applications and resistor braking
- Optimized cooling concept maximizes airflow over IGBT heatsink and capacitors
- Coated boards to protect electronics in dirty/dusty/humid environments
- S-curve for ramping and 599 Hz maximum output frequency
- 1-1/2 hp light duty, 1 hp heavy duty horsepower rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
You focus on designing machines that work precisely and improve application productivity. The pre-configured ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation system. Drive usability is enhanced with the built-in icon based user interface and other optional control panels. Adaptive programming offers an easy alternative for simple programming needs. The drive is suitable for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, cranes and other constant torque applications.
ABB Machinery AC Drive, 3-Phase Low Voltage, Series: ACS380, 380 to 480 VAC Input/480 VAC Output, 3.3 A, 1 hp, 1-1/2 hp, 2.76 in Width, 6.85 in Depth, 8.66 in Height, IP20/Open Enclosure, Integrated Icon-Based LCD Control Panel Display, DIN Rail/Wall Mounting, Extruded Aluminum/Sheet Steel, Gray/White, Hot Dipped Zinc
SPECIFICATIONS
| Amperage Rating | : | 3.3 A |
| Enclosure Type | : | IP20/Open |
| Horsepower | : | 1 hp, 1-1/2 hp |
| Type | : | 3-Phase Low Voltage |
| Width | : | 2.76 in |
| Height | : | 8.66 in |
| Mounting Type | : | DIN Rail/Wall |
| Display Type | : | Integrated Icon-Based LCD Control Panel |
| Color | : | Gray/White |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/103/ABB_ACS380_040C_01A8_4_K454_Catalog.pdf -
Owners/User Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/103/ABB_ACS380_040C_01A8_4_K454_User_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/664/IDW_DOCUMENT_52a313466e2960d161688ce5bcab8b794f03a9fed6fa5ce6a5442689c43debcc.pdf
