ACS355-03U-02A4-4

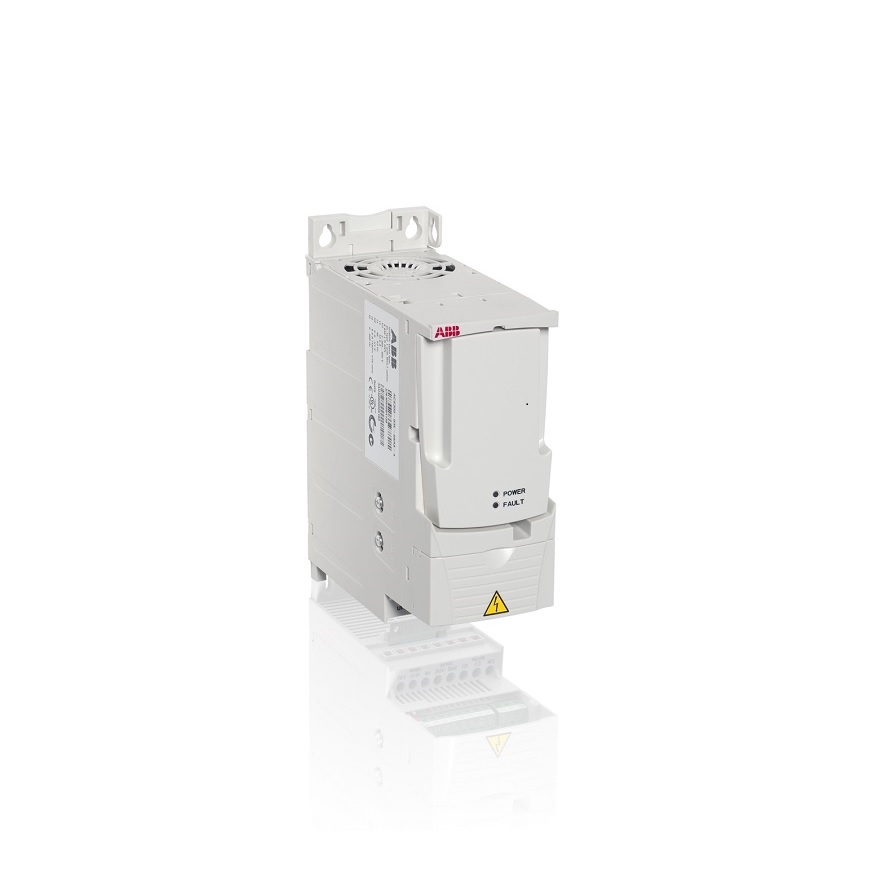

ABB ACS355-03U-02A4-4 Machinery Drive, 480 VAC, 2.4 A, 1 hp, 2.76 in W x 6.34 in D
- CP#:
- Item#: ACS355-03U-02A4-4
- Mfr#: ACS355-03U-02A4-4
- UPC: 662348013670
- -10 to 40 deg c (14 to 104 deg f), no frost allowed 50 deg c (122 deg f) with 10 PCT operating ambient temperature
- Rated current available at 0 to 1000 m (0 to 3281 ft) reduced by 1 PCT per 100 m (328 ft) over 1000 to 2000 m (3281 to 6562 ft) altitude
- Lower than 95 PCT (without condensation) relative humidity
- IP20/optional NEMA 1/ul type 1 enclosure IP66/IP67/UL type 4x as an option up to 7.5 kW, IP69k available for IP66/IP67 variant with compatible cable glands degree of protection
- NCS 1502-Y, RAL 9002, PMS 420 C enclosure color
- IEC721-3-3 no conductive dust allowed contamination levels contamination levels
- Class 1C2 (chemical gases), class 1S2 (solid particles) transportation
- Class 2C2 (chemical gases), class 2S2 (solid particles) storage
- Class 3C2 (chemical gases), class 3S2 (solid particles) operation
- Blank panel, 3 ph input, 3 ph output
- R0 frame
- 48 - 63 Hz frequency rating
- 0.75 kW power
- Built-in braking chopper
- High protection class variants for harsh environments
- Permanent magnet and induction motor control
- Torque memory for lifting applications
- FlashDrop tool
- 169 mm height without fastenings and clamping plate x 202 mm height with fastenings but without clamping plate x 239 mm height With fastenings and clamping plate x 70 mm Width x 161 mm depth
- 3 ph
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
In the ABB machinery drives portfolio, ACS355 rEPResents the micro drive range, meeting requirements like compact Size, being optimized for a lower power range, cost effectiveness and ease of use. By choosing an ABB machinery drive, machine builders not only get all the clever things inside the drive, but also everything outside it - the entire global ABB. This means a full range of products and services designed to support their business.

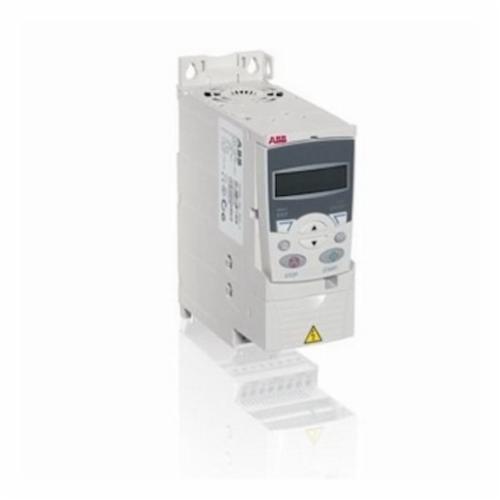

ABB Machinery Drive, Series: ACS355, 480 VAC, 2.4 A, 1 hp, 2.76 in Width, 6.34 in Depth, 9.41 in Height, IP20/Open Enclosure, LCD Display, Cabinet Mounting
SPECIFICATIONS
| Amperage Rating | : | 2.4 A |
| Enclosure Type | : | IP20/Open |
| Horsepower | : | 1 hp |
| Width | : | 2.76 in |
| Height | : | 9.41 in |
| Mounting Type | : | Cabinet |
| Display Type | : | LCD |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/52/ABB_ACS355_01U_07A5_2_Brochure.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/614/IDW_DOCUMENT_4d0fcd79b297dcdce0b81e89a1285d7aa19851add13c5e503e99729a3c0a20c7.pdf
