ABB ACS310-03U-09A7-4
ABB

ABB ACS310-03U-09A7-4

loading
ABB ACS310-03U-09A7-4
ABB
Email Print

ACS310-03U-09A7-4

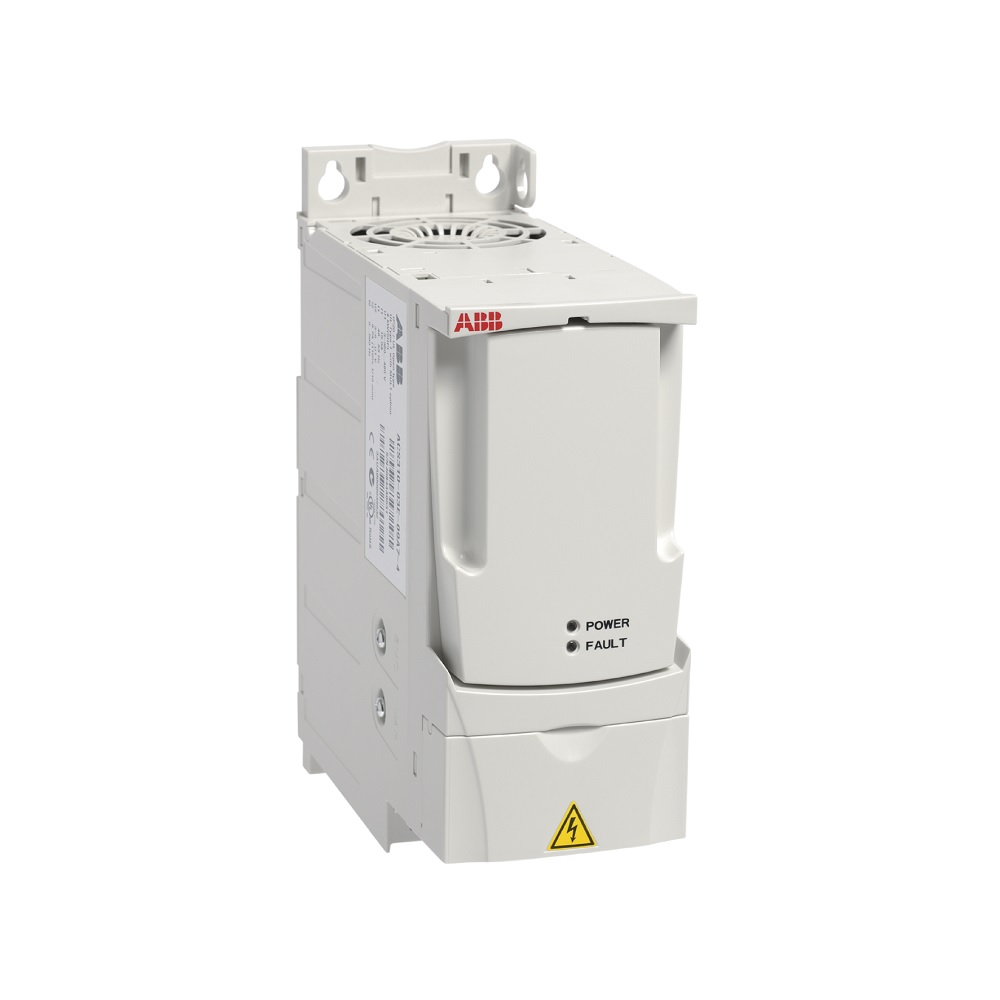

ABB ACS310-03U-09A7-4 AC Drive, 480 VAC, 9.7 A, 5 hp, 2.76 in W x 6.34 in D

  • Item#: ACS310-03U-09A7-4
  • Mfr#: ACS310-03U-09A7-4
  • UPC: 662348003695
    • -10 to 50 deg C (14 to 122 deg F) ambient temperature, no frost followed environmental conditions, output current rated current available at 0 to 1000 M (0 to 3281 ft) reduced by 1 PCT per 100 M (328 ft) over 1000 to 2000 M (3281 to 6562 ft) altitude
    • Lower than 95 PCT (without condensation) relative humidity, IP20/optional NEMA 1 enclosure degree of protection, NCS 1502-Y, RAL 9002, PMS 420 C enclosure color, IEC721-3-3 no conductive dust allowed contamination levels, class 1C2 (chemical gases), class 1S2 (solid particles) transportation, class 2C2 (chemical gases), class 2S2 (solid particles) storage, class 3C2 (chemical gases), class 3S2 (solid particles) operation
    • Pump and fan control (PFC) feature to control pumps and fans in parallel, one drive controls several pumps or fans and eliminates the need for an external programmable logic controller, reduces motor stress and increases lifetime when auxiliary motors are driven according to the needed pump/fan capacity
    • Interlock function enables one motor to be disengaged from the mains supply while others continue operating in parallel, soft pump and fan control feature (SPFC), reduces unwanted pressure peaks in pumps and pipelines when an auxiliary motor is started
    • Reduces inrush current to the power network while connecting new auxiliary motors, Integrated protection and control with pre-programmed features like pipe cleaning, pipe fill, inlet/outlet pressure supervision and detection of under or over load for preventive maintenance pump protection functions
    • Improves process control and system reliability, integrates system protection, improved and optimized system smoother processes, longer life for pump and fan system, reduced maintenance costs, varies the drives performance according to the need of the application PID controllers
    • No need for external field bus options embedded modbus EIA-485 field bus interface, integrated and compact design, cooling fan rotates only when the drive is running on/off cooling fan control, thereby cooling only when needed, fast and easy way to change the phase order of the motor rotation software controlled phase inversion
    • Only the most needed drive parameters are shown on the drives parameter view short parameter menu view, complete parameter view can be changed by setting one parameter, improved motor efficiency with intelligent drive control method, especially while operating on partial centrifugal loads energy optimizer
    • Several counters to illustrate saved energy (kWh), carbon dioxide emissions (CO2) and cost in local currency, full output current at 50 deg C ambient - drive can be operated in ambient temperatures up to 50 deg C without derating the output current energy efficiency counters
    • Load analyzer saves process data, such as current and torque values, which can be used to analyze the process and dimensioning of the drive and motor
    • Drives high power-to-size ratio facilitates efficient cabinet space usage optimum installation layout compact size and flexible mounting options
    • Flexible installation with screw or din rail mounting, drive can be installed sideways or side-by-side, assistant control panel with clear alphanumerical dynamic menus, real time clock and 14 languages user interfaces
    • Basic panel with numerical display, monitors consumed energy (kwh), running hours or motor rotation maintenance assistant
    • Easy set up of parameters for PID controllers, real-time clock, serial communication, drive optimizer and drive startup commissioning assistants
    • Blank panel display
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

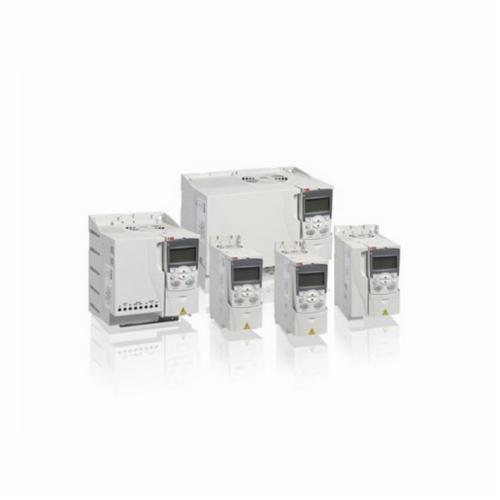

ABB standard drives, ACS310, are dedicated to variable torque applications such as booster pumps and centrifugal fans. The drives dedicated pump and fan features lower operating costs, boost energy efficiency and reduce CO2 emissions. Included among these features are built-in PID controllers and PFC (pump and fan control) that varies the drives performance in response to changes in pressure, flow or other external data. Among the prEPRogrammed protection functions is pump cleaning. This prevents pump and pipes clogging by initiating a sequence of forward and reverse runs of the pump to clean the impeller. Within pumping applications, energy savings up to 50% can be achieved compared to direct-on-line motor-driven systems that use mechanical flow control methods. The ABB standard drives provide built-in features for efficient energy management. Energy savings can be easily monitored using the built-in counters that display energy savings in kilo watt hours and saved carbon dioxide emissions. The savings can also be displayed in local currencies.

ABB AC Drive, Series: ACS310, 480 VAC, 9.7 A, 5 hp, 2.76 in Width, 6.34 in Depth, 9.41 in Height, IP20/Open Enclosure, LCD Display, Panel Mounting

SPECIFICATIONS

Amperage Rating      :      9.7 A
Enclosure Type      :      OPEN, IP20
Horsepower      :      5 hp
Length      :      6.34 in
Type      :      ACS310
Width      :      2.76 in
Height      :      9.41 in
Mounting Type      :      Panel
Display Type      :      LCD

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/20/IDW_DOCUMENT_fd176de3032a5f9e7cae6fd053a5af040fc04d792133ec8fb7f31201c1ffbab5.pdf
  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/49/ABB_ACS310_03U_19A4_2_Catalog_1.pdf
