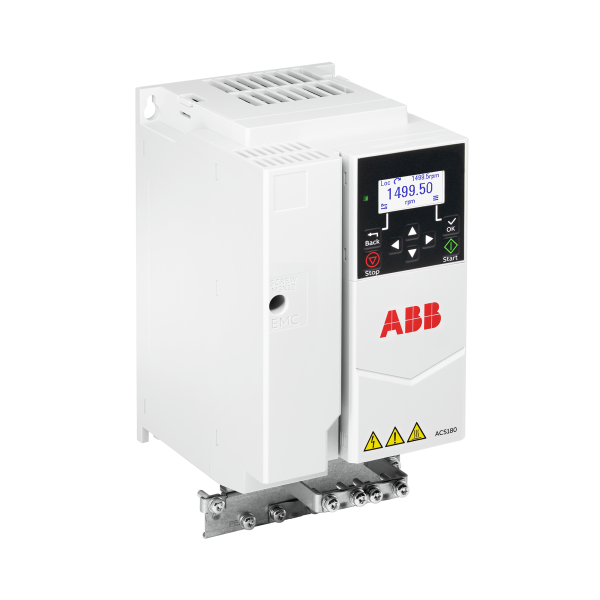

ACS180-04S-17A0-4
ACS180 AC Drive, 3~400V In, 10HP, 16.2A, Type OPEN
- CP#:
- Item#: ACS180-04S-17A0-4
- Mfr#: ACS180-04S-17A0-4
- Worldwide availability and service
- High performance motor control
- World-class connectivity options
- Adaptive programming with sequence programming
- Multiple interfaces for flexible configuration
- Graphical icon-based integrated control panel
- Sensorless vector control for induction and permanent magnet motors
- Two (2) process PID functions
- Maintenance timers and counters
- Optimized cooling concept maximizes airflow over
- IGBT heatsink and capacitors
- Coated boards to protect electronics in dirty/ dusty/humid environments
- S-curve for ramping
- 599 Hz maximum output frequency
- ABB machinery drives are designed to meet the requirements of an extensive range of machinery applications. The drives are ideal for food and beverage, material handling, textile applications.
- Exceptionally compact drives and uniform design
- 50 °C (122 °F) ambient operation, derated up to 60 °C (140 °F)
- Quick commissioning with application macros and panel assistants
- Safe torque off function (SIL3) as standard
- Sensorless vector control
- Built-in brake chopper frames R2 – R4
- Main features
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Exceptionally compact drives designed for fast and easy installation, configuring and start-up.
ACS180 AC Drive, 3~380-480V In, 10HP, 16.2A, Type OPEN, 1.1 overload, Integrated, HxWxD 7.95x4.72x5.63 in, Module
SPECIFICATIONS
| Enclosure Type | : | OPEN, IP20 |
| Horsepower | : | 10 hp |
| Length | : | 5.63 in |
| Type | : | ACS180 |
| Width | : | 4.72 in |
| Height | : | 7.95 in |
| Mounting Type | : | Module |
| Supply Voltage | : | 480 VAC |
| Input Phase | : | 3-Phase |
| Rated Current | : | 16.2 A |
| Frame Size | : | R2 |
| Weight | : | 4.2 lb |
DOCUMENTS
-
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ACS180-PHPB01U-EN_RevA_ACS180_flyer.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ACS180_Catalog_ACS180-PHTC01U-EN_RevA.pdf -
Document https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/EN_ACS180_HW_C.pdf
