ACS150-03U-04A1-4

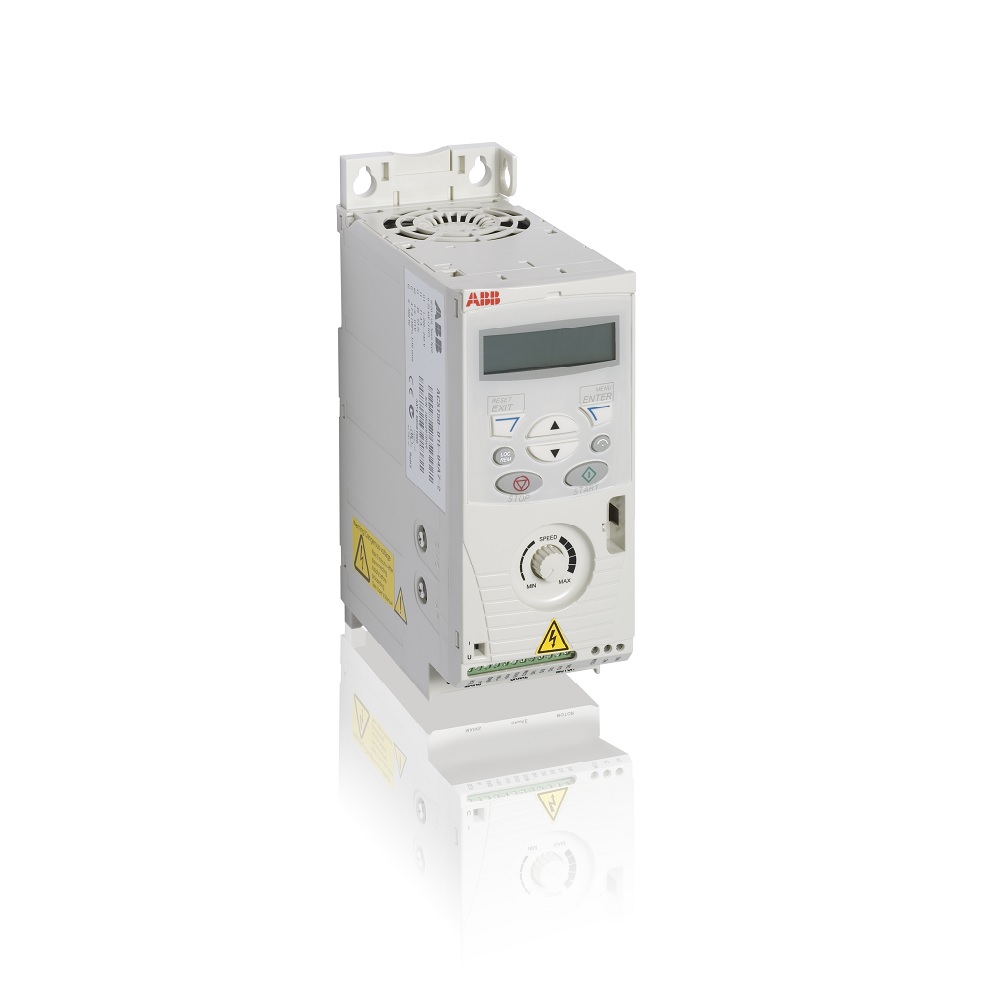

ABB ACS150-03U-04A1-4 Micro Drive With EMC Filter, 480 VAC, 4.1 A, 2 hp, 2.76 in W x 5.59 in D
- CP#:
- Item#: ACS150-03U-04A1-4
- Mfr#: ACS150-03U-04A1-4
- UPC: 662348002537
- Fast and reliable delivery with dedicated support
- User-friendly LCD control panel and integrated potentiometer
- Clear alphanumeric display
- Easy setup and use
- Time savings due to quick setup and simple configuration
- Flexible mounting alternatives
- One drive type can be used in various designs, saving installation costs and time
- High electromagnetic compatibility
- Low EMC emissions in selected environments
- Built-in brake chopper as standard
- FlashDrop tool
- PID control varies the drives performance according to the need of the application
- Coated boards protects the electronics from hazards including static discharge and airborne contaminates, including moisture
- Integrated user interface and potentiometer
- Built-in EMC filter for 2nd environment
- 3 ph input/output
- R1 frame
- 14 to 104 deg F (-10 to 40 deg C) ambient temperature, no frost allowed, 122 deg F (50 deg C) with 10 PCT operating environmental conditions
- Output current rated current available at 0 to 3281 ft (0 to 1000 M) reduced by 1 PCT per 328 ft
- Integrated control panel display
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ACS150 variable frequency drives feature an integrated control panel with LCD display and built-in speed potentiometer. For easy setup and commissioning, the drives include a variety of predefined I/O configuration macros including - ABB standard, 3-wire control, Digital input control, PID control, Hand/Auto control and a PLC interface. User defined macros can also be created. The ACS150 drive has an extensive list of programmable drive parameters that are used to achieve high performance with maximum versatility in many applications. ACS150 micro drives are compact with multiple mounting positions and options. The built-in DIN rail mounting capability makes them ideal for panel builders. Rapid programming and commissioning are possible using the on board setup macros. The DrivePM (Drive Parameter Manager) software tool can be used to create, edit and copy parameter sets using the MFDT-01 FlashDrop tool.
ABB Micro Drive, Series: ACS150, 480 VAC, 4.1 A, 2 hp, 2.76 in Width, 5.59 in Depth, 9.41 in Height, IP20/Open Enclosure, LCD Display, DIN Rail/Wall Mounting
SPECIFICATIONS
| Amperage Rating | : | 4.1 A |
| Enclosure Type | : | IP20/Open |
| Horsepower | : | 2 hp |
| Width | : | 2.76 in |
| Height | : | 9.41 in |
| Mounting Type | : | DIN Rail/Wall |
| Display Type | : | LCD |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/107/ABB_ACS150_03U_04A1_4_Catalog_1.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/280/IDW_DOCUMENT_8828abb06cfd93cfb420f4d98dd32180e9c3711100789d9bac8b4102910b7607.pdf
