A9-30-01-84

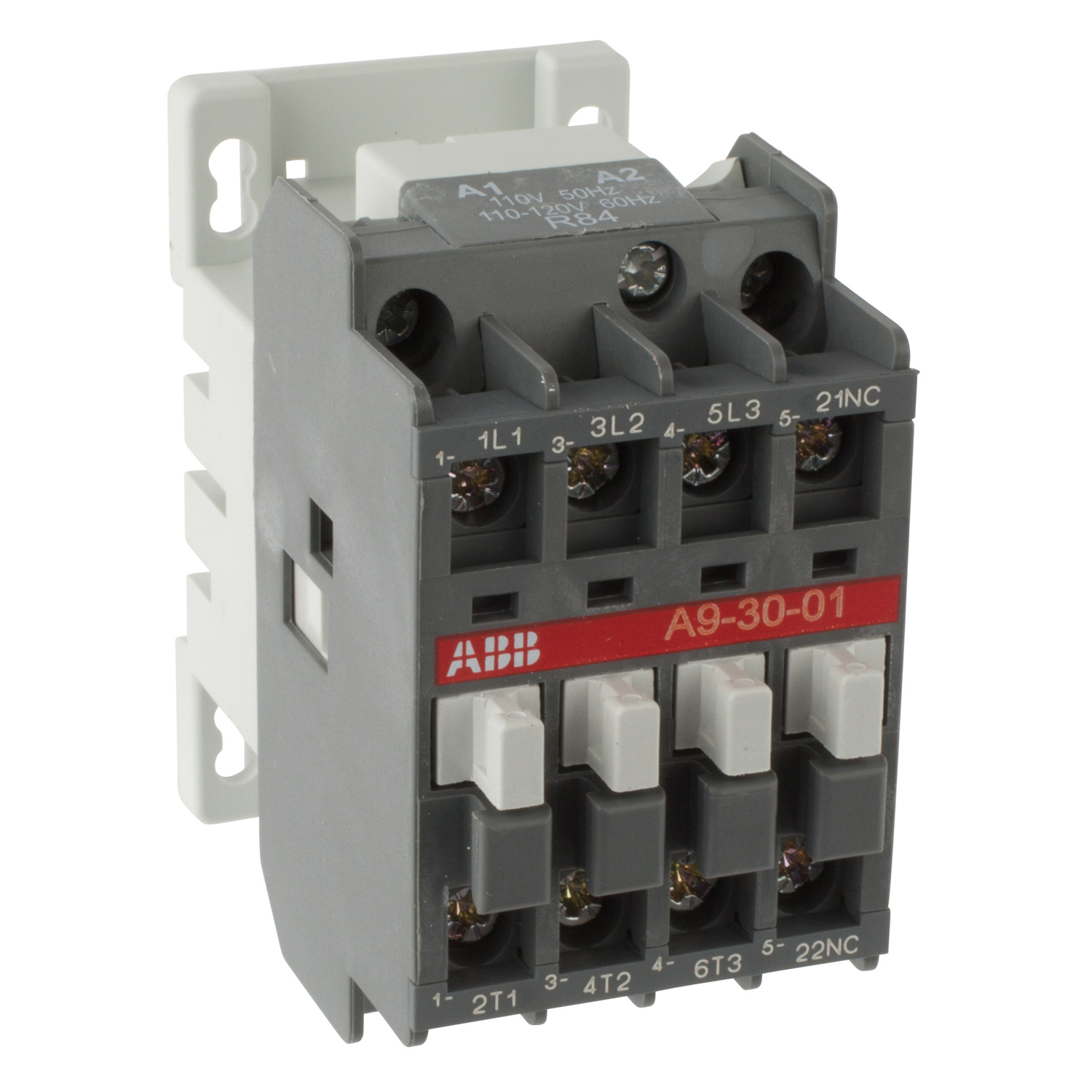

ABB A9-30-01-84 A9 Magnetic Contactor, 110 to 120 VAC V Coil, 21 A, 3NO Contact, 3 Poles
- CP#:
- Item#: A9-30-01-84
- Mfr#: A9-30-01-84
- UPC: 662019880716
- Compact, space saving design
- Double break contact design
- Easy coil change
- Touch safe design, all connection terminals are protected against accidental touch
- Terminals supplied open for ease of wiring
- Operates over an extended voltage range of 85 to 110% of rated control voltage
- Screwdriver guide holes
- 70/74 VA pull-in, 8 VA holding coil power rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB, A9-30-01-84, Contactor, Magnetic, Series: A9, 110 to 120 VAC Coil, 21 A Maximum Load Current, 8/70/74 VA Coil, 3 Pole, 50/60 Hz Frequency, 5.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NC Auxiliary Contacts, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -40 to 70 deg C Operating, Snap-On/DIN Rail Mounting, 74 mm H x 44 mm W x 74 mm D Dimensions
SPECIFICATIONS
| Mounting Type | : | Snap-On/DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP20 |
| Type | : | Magnetic |
| Coil Voltage | : | 110 to 120 VAC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -40 to 70 deg C |
| Dimensions | : | 74 mm H x 44 mm W x 74 mm D |
| Terminal Type | : | Screw |
| Wattage | : | 5.5 kW |
| Contact Type | : | Non-Reversing |
| Coil Power Rating | : | 8/70/74 VA |
| Contact Rating | : | 690 VAC |
| Operating Cycles | : | 3600 Cycles |
| Series | : | A9 |
| Number of Auxiliary Contacts | : | 1NC |
| Maximum Load Current | : | 21 A |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/259/IDW_DOCUMENT_64ca7277f4355ca4ed65f611423d5ac1a0ae7b3f31eb3b8d1d1f6c9fbf83079b.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/380/ABB_A260_30_11_84_Catalog_1.pdf
