A26-30-10-81

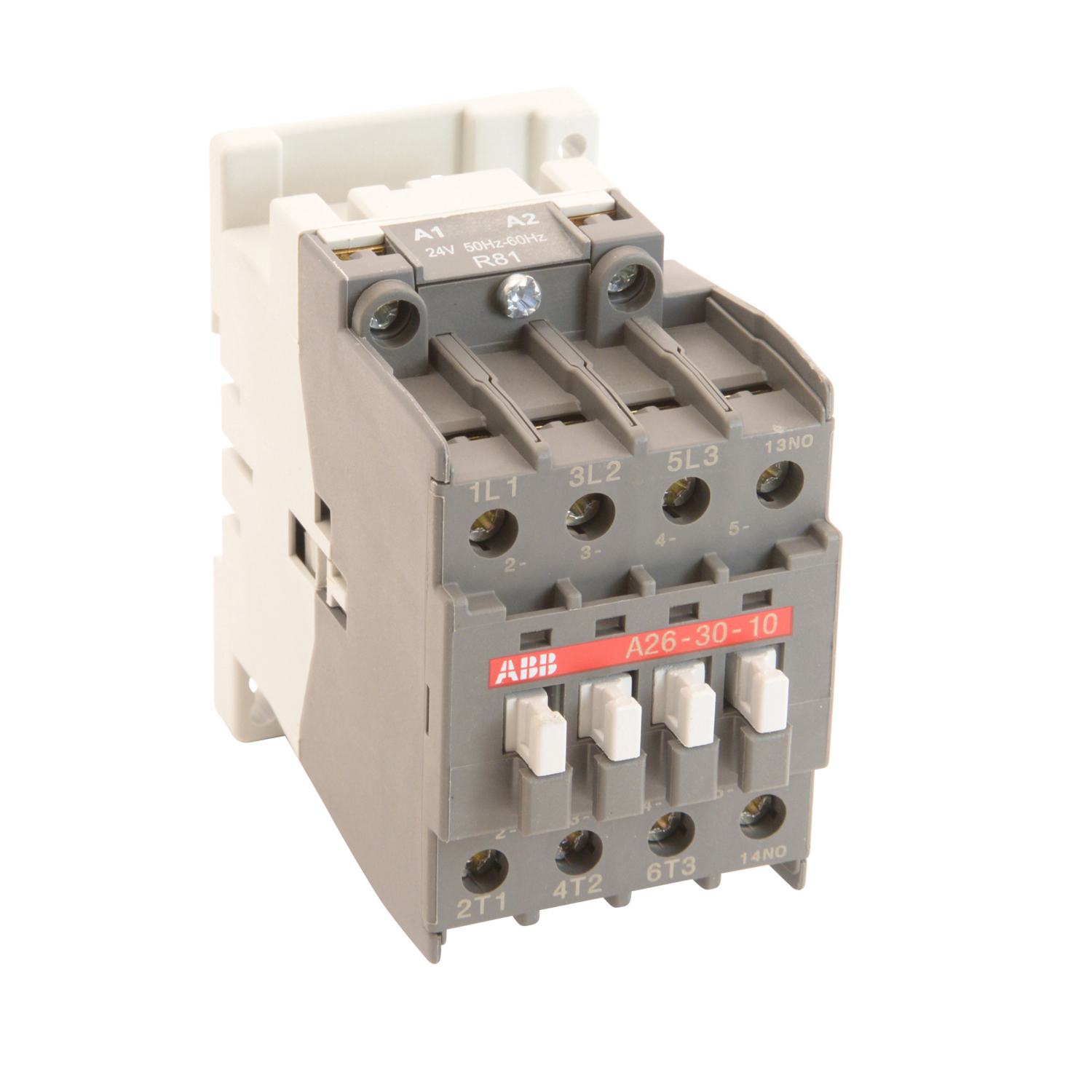

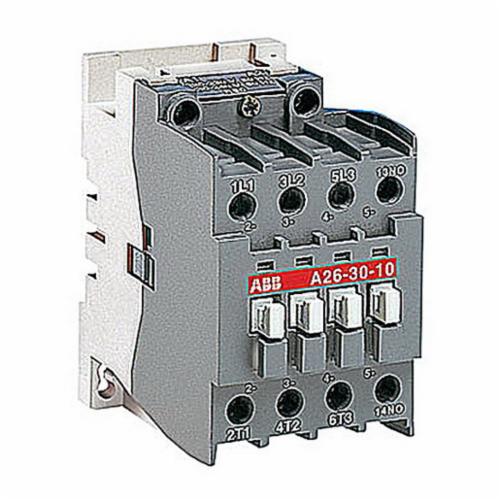

ABB A26-30-10-81 Magnetic Contactor, 24 VAC V Coil, 45 A, 3NO Contact, 3 Poles
- CP#:
- Item#: A26-30-10-81
- Mfr#: A26-30-10-81
- UPC: 662019879918
- Compact, space saving design
- Double break contact design
- Easy coil change
- Touch safe design, all connection terminals are protected against accidental touch
- Terminals supplied open for ease of wiring
- Operates over an extended voltage range of 85 to 110% of rated control voltage
- Screwdriver guide holes
- Non-reversing across the line contactor
- 120/140/125 VA Pull-In, 12 VA holding coil power rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Contactor, Magnetic, Series: A26, 24 VAC Coil, 45 A Maximum Load Current, 12/120/125/140 VA Coil, 3 Pole, 50/60 Hz Frequency, 11 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO Auxiliary Contacts, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -40 to 70 deg C Operating, Snap-On/DIN Rail Mounting, 90 mm H x 54 mm W x 93.6 mm D Dimensions
SPECIFICATIONS
| Mounting Type | : | Snap-On/DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP20 |
| Type | : | Magnetic |
| Coil Voltage | : | 24 VAC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -40 to 70 deg C |
| Dimensions | : | 90 mm H x 54 mm W x 93.6 mm D |
| Terminal Type | : | Screw |
| Wattage | : | 11 kW |
| Contact Type | : | Non-Reversing |
| Coil Power Rating | : | 12/120/125/140 VA |
| Contact Rating | : | 690 VAC |
| Operating Cycles | : | 3600 Cycles |
| Series | : | A26 |
| Number of Auxiliary Contacts | : | 1NO |
| Maximum Load Current | : | 45 A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/380/ABB_A260_30_11_84_Catalog_1.pdf
