- ABB A210-30-11-84
A210-30-11-84

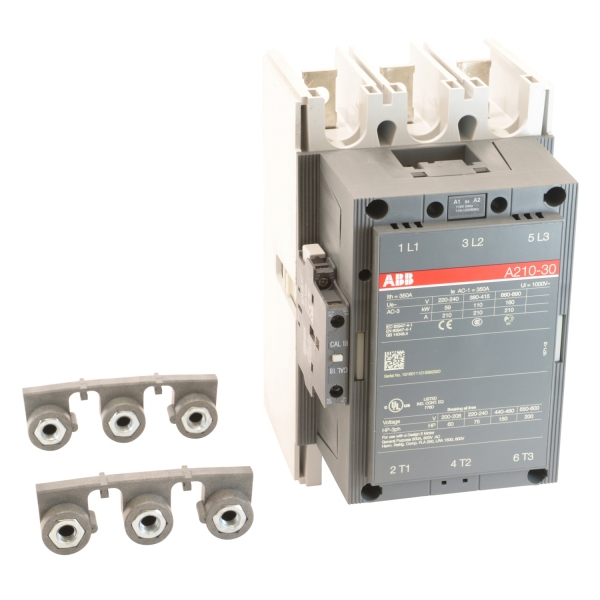

ABB A210-30-11-84 Magnetic Contactor, 110 to 120 VAC V Coil, 300 A, 3NO Contact, 3 Poles
- CP#:
- Item#: A210-30-11-84
- Mfr#: A210-30-11-84
- UPC: 662019879802
- Compact, space saving design
- Reliable in all networks
- Built-in surge suppression
- Coil terminal access in the front
- Easy-to-use accessories
- Contactors ensure positive safety between their auxiliary contact blocks
- Easy maintenance of main contacts and coil inspection
- Can be mounted in any position
- Operates over an extended voltage range of 85 to 110 % of rated control voltage
- 1350/1550/1700 VA pull-in, 60/65/80 VA holding coil power rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Contactor, Magnetic, Series: A210, 110 to 120 VAC Coil, 300 A Maximum Load Current, 60/65/80/1350/1550/1700 VA Coil, 3 Pole, 50/60 Hz Frequency, 160 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, Screw Terminal, NEMA 00/3 Enclosure, 3600 Cycles Operating Cycles, -40 to 70 deg C Operating, Snap-On/DIN Rail Mounting, 227 mm H x 140 mm W x 180.5 mm D Dimensions
SPECIFICATIONS
| Mounting Type | : | Snap-On/DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | NEMA 00/3 |
| Type | : | Magnetic |
| Coil Voltage | : | 110 to 120 VAC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -40 to 70 deg C |
| Dimensions | : | 227 mm H x 140 mm W x 180.5 mm D |
| Terminal Type | : | Screw |
| Wattage | : | 160 kW |
| Contact Type | : | Non-Reversing |
| Coil Power Rating | : | 60/65/80/1350/1550/1700 VA |
| Contact Rating | : | 600 VAC |
| Operating Cycles | : | 3600 Cycles |
| Series | : | A210 |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 300 A |
