- ABB A145-30-11-84
A145-30-11-84

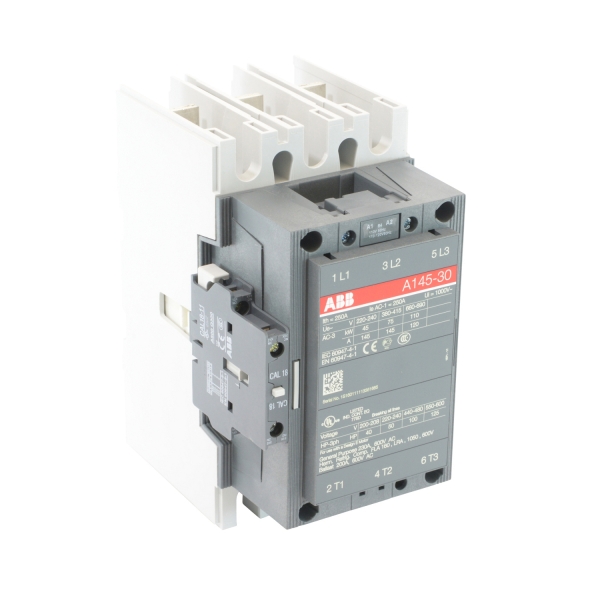

ABB A145-30-11-84 Magnetic Contactor, 110 to 120 VAC V Coil, 230 A, 3NO Contact, 3 Poles
- CP#:
- Item#: A145-30-11-84
- Mfr#: A145-30-11-84
- UPC: 662019879406
- Non-reversing across the line contactor
- 550/600/700/650 VA pull-in, 35/40/44 VA holding coil power rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Contactor, Magnetic, Series: A145, 110 to 120 VAC Coil, 230 A Maximum Load Current, 35/40/44/550/600/650/700 VA Coil, 3 Pole, 50/60 Hz Frequency, 110 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, Screw Terminal, NEMA 00/3 Enclosure, -40 to 70 deg C Operating, Snap-On/DIN Rail Mounting, 196 mm H x 111.5 mm W x 160 mm D Dimensions
SPECIFICATIONS
| Mounting Type | : | Snap-On/DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | NEMA 00/3 |
| Type | : | Magnetic |
| Coil Voltage | : | 110 to 120 VAC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -40 to 70 deg C |
| Dimensions | : | 196 mm H x 111.5 mm W x 160 mm D |
| Terminal Type | : | Screw |
| Wattage | : | 110 kW |
| Contact Type | : | Non-Reversing |
| Coil Power Rating | : | 35/40/44/550/600/650/700 VA |
| Contact Rating | : | 600 VAC |
| Series | : | A145 |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 230 A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_A260_30_11_84_Catalog_1.pdf
