A110-30-11-84

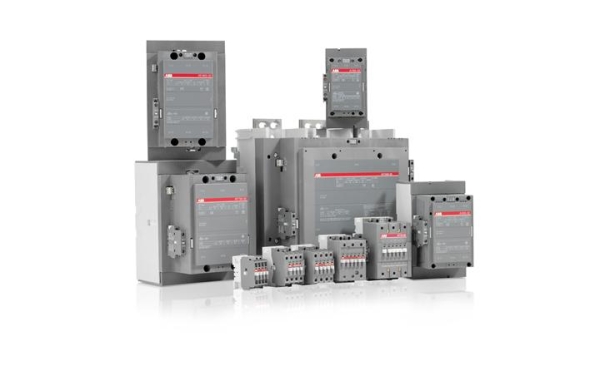

ABB A110-30-11-84 Magnetic Contactor, 110 to 120 VAC V Coil, 160 A, 3NO Contact, 3 Poles
- CP#:
- Item#: A110-30-11-84
- Mfr#: A110-30-11-84
- UPC: 662019879239
- Compact, space saving design
- Double break contact design
- Easy coil change
- Touch safe design, all connection terminals are protected against accidental touch
- Terminals supplied open for ease of wiring
- Operates over an extended voltage range of 85 to 110% of rated control voltage
- Screwdriver guide holes
- Non-reversing across the line contactor
- 350/450/410/365 VA pull-in, 22/26/27 VA holding coil power rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Contactor, Magnetic, Series: A110, 110 to 120 VAC Coil, 160 A Maximum Load Current, 22/26/27/350/365/410/450 VA Coil, 3 Pole, 50/60 Hz Frequency, 55 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -40 to 70 deg C Operating, Snap-On/DIN Rail Mounting, 148 mm H x 102 mm W x 123.5 mm D Dimensions
SPECIFICATIONS
| Mounting Type | : | Snap-On/DIN Rail |
| Frequency Rating | : | 50/60 Hz |
| Enclosure Type | : | IP20 |
| Type | : | Magnetic |
| Coil Voltage | : | 110 to 120 VAC |
| Contact Configuration | : | 3NO |
| Number of Poles | : | 3 |
| Operating Temperature | : | -40 to 70 deg C |
| Dimensions | : | 148 mm H x 102 mm W x 123.5 mm D |
| Terminal Type | : | Screw |
| Wattage | : | 55 kW |
| Contact Type | : | Non-Reversing |
| Coil Power Rating | : | 22/26/27/350/365/410/450 VA |
| Contact Rating | : | 690 VAC |
| Operating Cycles | : | 3600 Cycles |
| Series | : | A110 |
| Number of Auxiliary Contacts | : | 1NO-1NC |
| Maximum Load Current | : | 160 A |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_A260_30_11_84_Catalog_1.pdf
