ABB
2TLA010028R2000

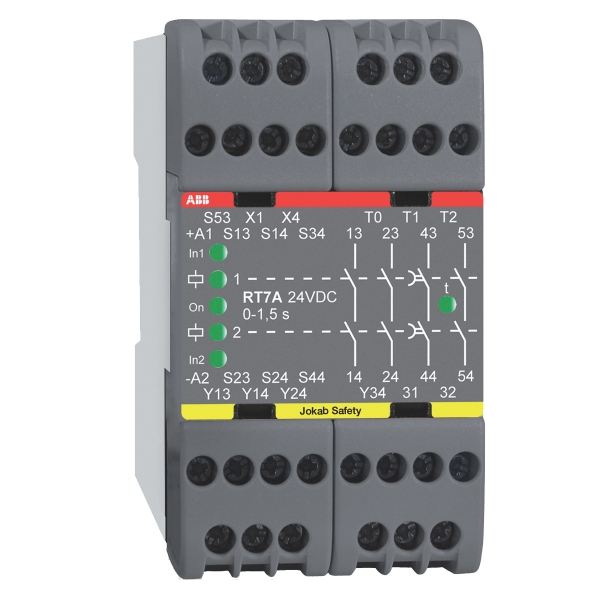

ABB 2TLA010028R2000 RT7 Safety Relay, 2NO-1NC Contact, 24 VDC V Coil
- Item#: 2TLA010028R2000
- Mfr#: 2TLA010028R2000
- UPC: 888614093645
- Meets safety category 1 to 4
- Automatic or manual supervised reset
- Test input for monitoring of external positive guided relays or contactors
- 6 LED indicators
- 1NC information output and 3 potential free transistor information outputs
- Quick release terminal blocks
- 35 mm DIN rail mounting
- With 24 VDC power supply
- Meets safety category 4
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Safety Relay, Series: RT7, 4.6 W Power, 24 VDC Coil, 2NO-1NC Contact Form, DIN Rail Mounting, Screw Clamp Terminal, IP20/IP40 Enclosure, 84 mm H x 45 mm W x 120 mm D Dimensions
SPECIFICATIONS
| Dimensions | : | 84 mm H x 45 mm W x 120 mm D |
| Enclosure Type | : | IP20/IP40 |
| Mounting Type | : | DIN Rail |
| Power Rating | : | 4.6 W |
| Series | : | RT7 |
| Terminal Type | : | Screw Clamp |
| Contact Form | : | 2NO-1NC |
| Coil Voltage | : | 24 VDC |
