ABB
2TLA010015R0000

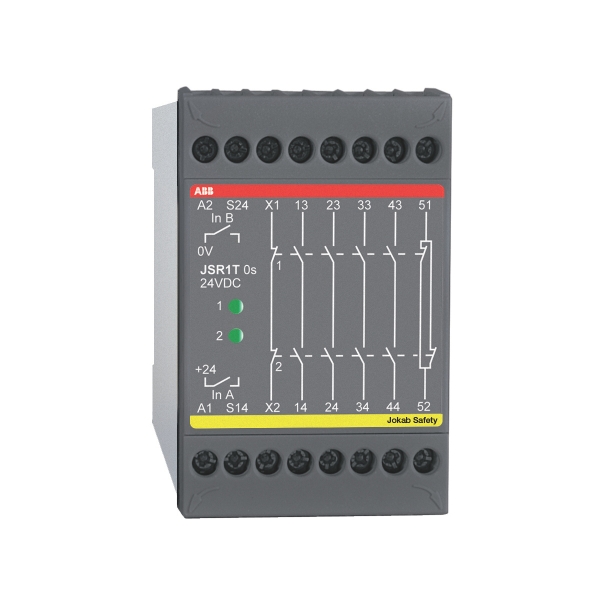

ABB 2TLA010015R0000 JSR1T Expansion Relay, 0.25 A, 1NC-4NO Contact, 24 VDC V Coil
- Item#: 2TLA010015R0000
- Mfr#: 2TLA010015R0000
- UPC: 888614093553
- The JSR1T has twin stop functions, that is, 2-relays with mechanically operated contacts
- A monitored stop function is achieved by connecting the test output (terminals X1 and X2) to the test or reset input on the safety relay which is being expanded
- 22.5 mm width dimension
- LED indication of output
- Quick release connector blocks
- Ag/Au flash contact material
- 5 A gL/gG fuses output
- 6 A gG conditional short-circuit current
- 2.5 kV impulse withstand voltage
- 150 Ohm maximum input wire resistance at nominal voltage
- 0 sec timing delay
- One condition for a safe delayed stop is that the delay time cannot Increase in the event of a fault
- Single and dual channel
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The JSR series are used for expanding the outputs of safety relays. Stop signals can be delayed and outputs are also provided for function indication.
ABB Expansion Relay, Series: JSR1T, 0.25 A, 1.2 W Power, 24 VDC Coil, 1NC-4NO Contact Form, DIN Rail Mounting, Screw Terminal, LED Display, IP20/IP40 Enclosure, -10 to 55 deg C, 74 mm L x 45 mm W x 120 mm D Dimensions
SPECIFICATIONS
| Dimensions | : | 74 mm L x 45 mm W x 120 mm D |
| Display Type | : | LED |
| Enclosure Type | : | IP20/IP40 |
| Mounting Type | : | DIN Rail |
| Power Rating | : | 1.2 W |
| Series | : | JSR1T |
| Temperature Rating | : | -10 to 55 deg C |
| Terminal Type | : | Screw |
| Amperage Rating | : | 0.25 A |
| Contact Form | : | 1NC-4NO |
| Coil Voltage | : | 24 VDC |
