ABB
1SVR500100R0000

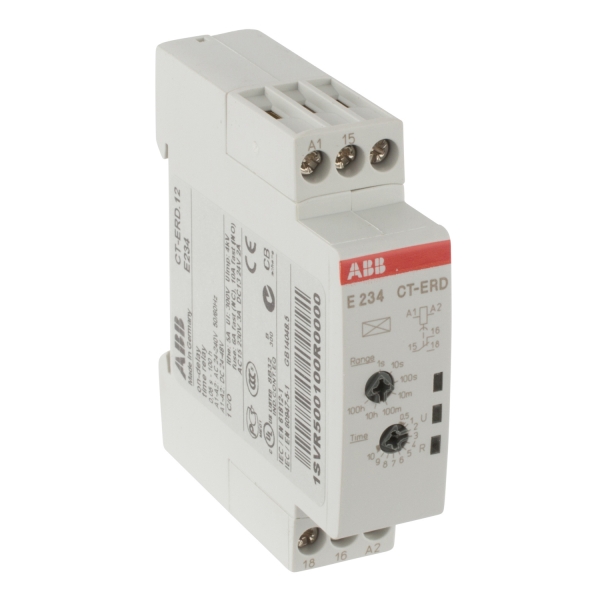

ABB 1SVR500100R0000 CT-D Electronic Timing Relay, 0.05 s to 100 hr Setting, 1CO/SPDT Contact
- Item#: 1SVR500100R0000
- Mfr#: 1SVR500100R0000
- UPC: 662019107196
- With their MDRC profile and 17.5 mm W, the CT-D range timers are ideally suited for installation in distribution panels as well as for industrial applications where compact dimensions are required
- Single-function timer on delay
- 7 time ranges (0.05 s to 100 hr) in one device
- Light gray enclosure in RAL 7035
- 2 LEDs for the indication of operational states
- Screw terminal type
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Timing Relay, Electronic, Series: CT-D, Operation Mode: On-Delay, 1CO/SPDT Contact Form, 0.05 s to 100 hr Time Setting, 24 to 240 VAC, 24 to 48 VDC Coil, LED Display, IP20/IP50 Enclosure, -20 to 60 deg C, DIN Rail Mounting, 70 mm H x 17.5 mm W x 63 mm D Dimensions
SPECIFICATIONS
| Coil Voltage | : | 24 to 240 VAC, 24 to 48 VDC |
| Dimensions | : | 70 mm H x 17.5 mm W x 63 mm D |
| Display Type | : | LED |
| Enclosure Type | : | IP20/IP50 |
| Mounting Type | : | DIN Rail |
| Operation Mode | : | On-Delay |
| Series | : | CT-D |
| Temperature Rating | : | -20 to 60 deg C |
| Type | : | Electronic |
| Time Setting | : | 0.05 s to 100 hr |
| Contact Form | : | 1CO/SPDT |
