1SVR500020R1100

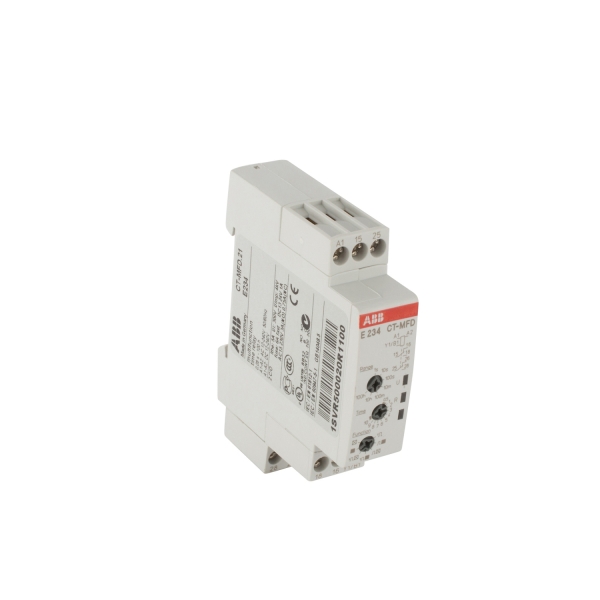

ABB 1SVR500020R1100 CT-D Electronic Timing Relay, 0.05 s to 100 hr Setting, 2CO-SPDT Contact
- CP#:
- Item#: 1SVR500020R1100
- Mfr#: 1SVR500020R1100
- UPC: 804325195584
- With their MDRC profile and a width of only 17.5 mm, the CT-D range timers are ideally suited for installation in distribution panels as well as for industrial applications where compact dimensions are required
- Multifunction timer with 7-timing functions-on-delay, off-delay with auxiliary voltage impulse-on, impulse-off with auxiliary voltage flasher starting with on, flasher starting with off, pulse former
- Control input voltage related triggering, polarized, capable of switching a parallel load
- Light-gray enclosure in RAL 7035
- 2 LEDs for the indication of operational states
- Screw terminal type
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB Timing Relay, Electronic, Series: CT-D, Operation Mode: On-Delay/Off-Delay/Impulse On/Impulse Off, 2CO-SPDT Contact Form, 0.05 s to 100 hr Time Setting, 12 to 240 VAC/VDC Coil, LED Display, IP20/IP50 Enclosure, -20 to 60 deg C, DIN Rail Mounting, 80 mm H x 17.5 mm W x 63 mm D Dimensions
SPECIFICATIONS
| Coil Voltage | : | 12 to 240 VAC/VDC |
| Dimensions | : | 80 mm H x 17.5 mm W x 63 mm D |
| Display Type | : | LED |
| Enclosure Type | : | IP20/IP50 |
| Mounting Type | : | DIN Rail |
| Operation Mode | : | On-Delay/Off-Delay/Impulse On/Impulse Off |
| Series | : | CT-D |
| Temperature Rating | : | -20 to 60 deg C |
| Type | : | Electronic |
| Time Setting | : | 0.05 s to 100 hr |
| Contact Form | : | 2CO-SPDT |
DOCUMENTS
-
Datasheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ABB_1SVR500020R1100_Datasheet.pdf
