1SVR405651R3100

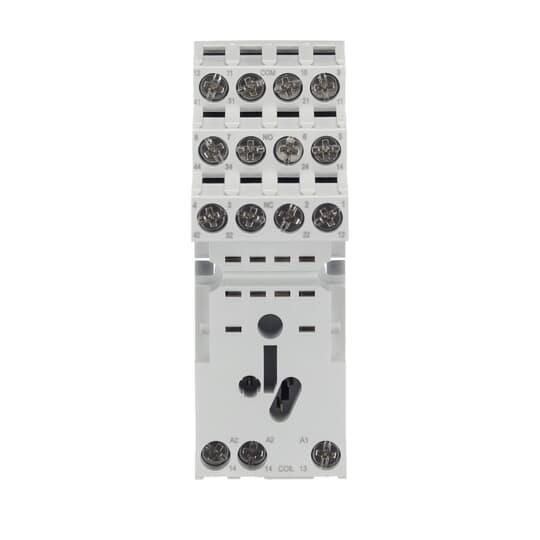

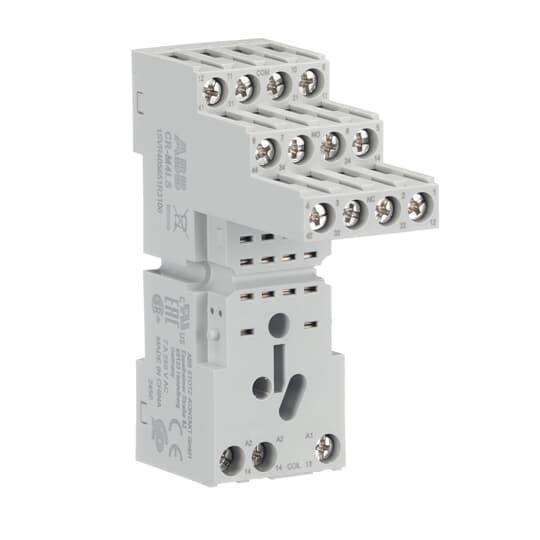

ABB 1SVR405651R3100 CR-M Logical Socket, 250 VAC/VDC, 7 A, For Use With 2CO or 4CO SPDT Plug-In Control CR-M Relay, 4 Poles
- CP#:
- Item#: 1SVR405651R3100
- Mfr#: 1SVR405651R3100
- UPC: 662019362144
- Position of connection terminals: coil connection (A1-A2) on lower side of the socket, all contact connections (common contacts, n/o and n/c contacts) on the upper side of the socket
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The CR-M4LS socket is from the CR-M (miniature) relay range. The logical socket is suitable for CR-M relays with 4 C/O (SPDT) output contacts. The socket has screw connection terminals. Pluggable function modules, holder and marker are available as accessories.
ABB, 1SVR405651R3100, Logical Socket, Series: CR-M, 250 VAC/VDC, 7 A, 4 Pole, -40 to 70 deg C, For Use With: 2CO or 4CO SPDT Plug-In Control CR-M Relay, DIN Rail Mounting, Screw Terminal, IP20 Enclosure, 82 mm L x 27 mm W x 61 mm H Dimensions
SPECIFICATIONS
| Dimensions | : | 82 mm L x 27 mm W x 61 mm H |
| Enclosure Type | : | IP20 |
| Mounting Type | : | DIN Rail |
| Series | : | CR-M |
| Temperature Rating | : | -40 to 70 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 250 VAC/VDC |
| Amperage Rating | : | 7 A |
| Suitable For Use With | : | 2CO or 4CO SPDT Plug-In Control CR-M Relay |
| Number of Poles | : | 4 |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1019/ABB_1SVR405651R3100_Specification_Sheet.pdf
