ABB 1SVR405651R1000
ABB

ABB 1SVR405651R1000

loading
ABB 1SVR405651R1000
ABB
Email Print

1SVR405651R1000

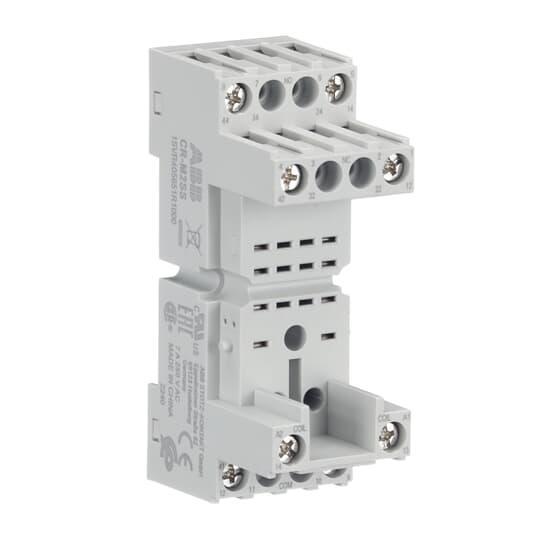

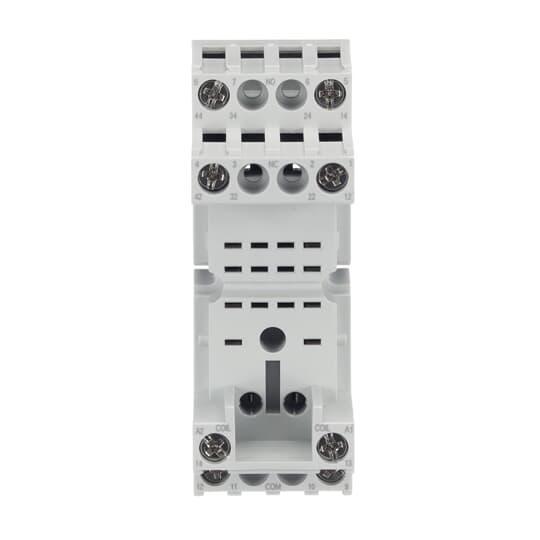

ABB 1SVR405651R1000 CR-M Standard Relay Socket, For Use With 2CO DPDT Plug-In Control Relay Contact

  • Item#: 1SVR405651R1000
  • Mfr#: 1SVR405651R1000
  • UPC: 662019214030
    • Coil connection (A1-A2) on lower socket side, contact connections (1NO-1NC) on the lower and upper socket side
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

ABB, 1SVR405651R1000, Relay Socket, Standard, Series: CR-M, -40 to 70 deg C, For Use With: 2CO DPDT Plug-In Control Relay Contact, Screw Terminal, IP40 Enclosure, 82 mm L x 27 mm W x 42.5 mm H Dimensions

SPECIFICATIONS

Dimensions      :      82 mm L x 27 mm W x 42.5 mm H
Enclosure Type      :      IP40
Series      :      CR-M
Temperature Rating      :      -40 to 70 deg C
Terminal Type      :      Screw
Type      :      Standard
Suitable For Use With      :      2CO DPDT Plug-In Control Relay Contact

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1019/ABB_1SVR405651R1000_Specification_Sheet.pdf
