1SVR405613R1100

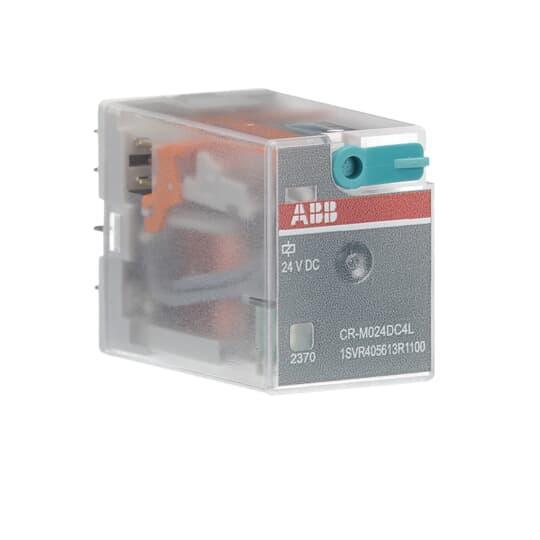

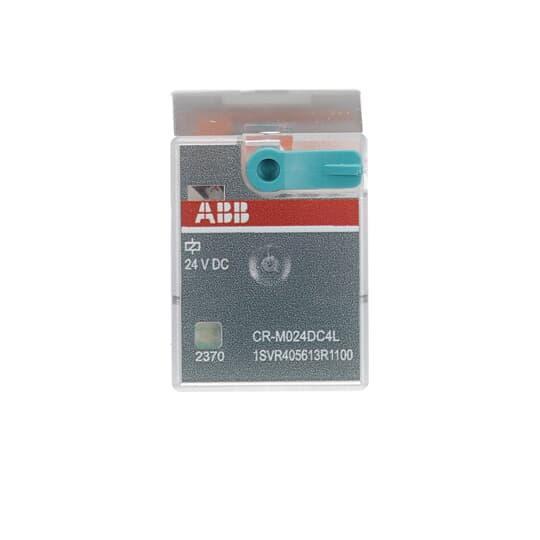

ABB 1SVR405613R1100 CR-M Pluggable Miniature Relay, 6 A, 4CO-SPDT Contact, 24 VDC V Coil
- CP#:
- Item#: 1SVR405613R1100
- Mfr#: 1SVR405613R1100
- UPC: 662019363882
- Standard miniature relays with mechanical status indication
- Integrated test button for manual actuation and locking of output contacts (DC coil = blue, AC coil = orange) that can be removed if necessary
- Cadmium-free contact material
- Suited for logical and standard sockets
- Interface relays link the electronic controlling, e.g. PLC, PC or filed bus system to the sensor/actuator level
- General purpose relay
- Integrated test button for manual actuation and locking of the output contacts (blue = DC, orange = AC) that can be removed if necessary
- With or without integrated LED
- Logical or standard sockets
- 27 mm width on socket
- Reverse polarity prediction/free wheeling diode
- LED indication
- RC elements
- Overvoltage prediction
- For applications where low current control voltage is used to switch higher current or voltage loads
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The CR-M024DC4L pluggable interface relay is from the CR-M (miniature) relay range. This relay operates with a 24 VDC rated control supply voltage and has a 4 C/O (SPDT) output with contacts rated at 250 V/6 A. The relay has an integrated blue test button for manual actuation and locking of the output contacts and an integrated LED. Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories.
ABB, 1SVR405613R1100, Relay, Pluggable Miniature, Series: CR-M, 6 A, 1500 W Power, 24 VDC Coil, 4CO-SPDT Contact Form, 6 A at 250 V Contact, Socket Mounting, LED Display, IP40 Enclosure, -40 to 70 deg C, 21.2 mm W x 27.5 mm D x 35.6 mm H Dimensions
SPECIFICATIONS
| Contact Rating | : | 6 A at 250 V |
| Dimensions | : | 21.2 mm W x 27.5 mm D x 35.6 mm H |
| Display Type | : | LED |
| Enclosure Type | : | IP40 |
| Mounting Type | : | Socket |
| Power Rating | : | 1500 W |
| Series | : | CR-M |
| Temperature Rating | : | -40 to 70 deg C |
| Type | : | Pluggable Miniature |
| Amperage Rating | : | 6 A |
| Contact Form | : | 4CO-SPDT |
| Coil Voltage | : | 24 VDC |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1019/ABB_1SVR405613R1100_Specification_Sheet.pdf
