ABB
1SVR040006R0100

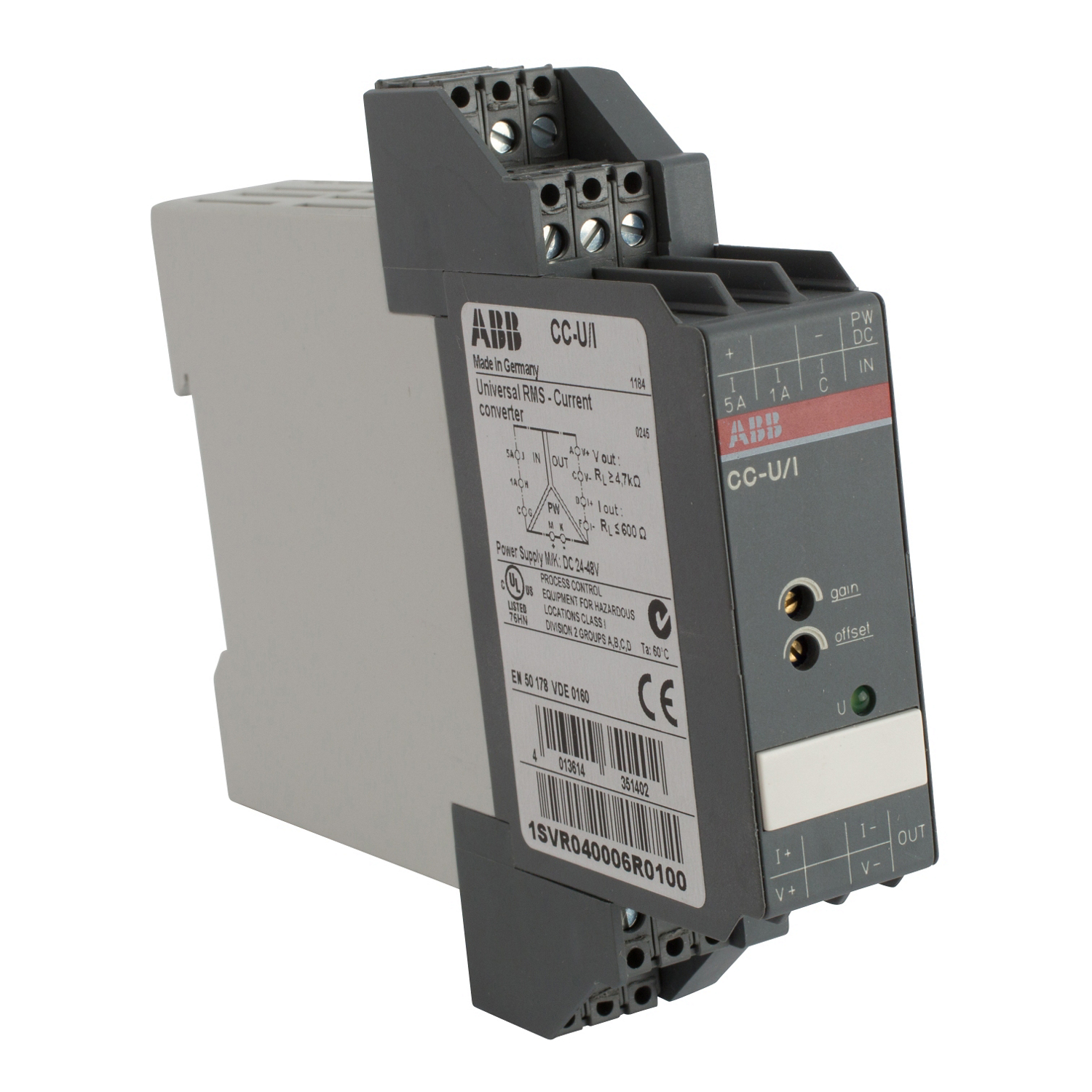

ABB 1SVR040006R0100 CC-U RMS Current Converter With 3-Way Electrical Isolation, 2 W Power Rating, Current Input
- Item#: 1SVR040006R0100
- Mfr#: 1SVR040006R0100
- UPC: 662019104478
- RMS converter for current signals up to 1 A and up to 5 A of any wave form (DC, DC with superimposed AC components, pure sinusoidal, triangular, phase angle controlled and more in a measuring range of 0 to 600 Hz)
- Adjustment and operating elements on the front
- Short circuit proof signal outputs
- Plug-in connecting terminals for inputs, outputs and supply
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
ABB RMS Current Converter, Series: CC-U, Current Input, 0 to 1/0 to 5 A Input Current, 2 W, DIN Rail Mount, -20 to 60 deg C, 150 ms Response, 24 VAC/24 to 48 VDC Supply Voltage, 105 mm H x 22.5 mm W
SPECIFICATIONS
| Dimensions | : | 105 mm H x 22.5 mm W |
| Input Current | : | 0 to 1/0 to 5 Input Type |
| Mounting Type | : | DIN Rail |
| Response Time | : | 150 ms |
| Series | : | CC-U |
| Specifications | : | 24 VAC/24 to 48 VDC Supply Voltage |
| Temperature Rating | : | -20 to 60 deg C |
| Power Rating | : | 2 W |
| Input Type | : | Current |
