HRS050-AF-20

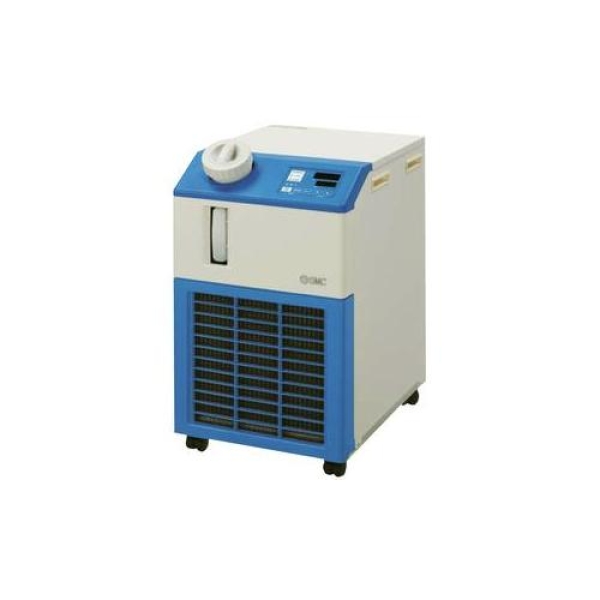

SMC® HRS050-AF-20 HRS Standard Thermo Chiller, 4700/5100 W Cooling, Power Source: 200 to 230 VAC, 1 ph, 50 to 60 Hz
- CP#:
- Item#: HRS050-AF-20
- Mfr#: HRS050-AF-20
- Cooling capacities are 1.3 kW, 1.9 kW, 2.4 kW, 3.2 kW, 4.2 kW, 5.1 kW, 5.9 kW (at 60Hz)
- Temperature range setting 5 to 40 deg C
- Temperature stability ±0.1 deg C
- Power supply requirement single phase 200 to 230 VAC, 50/60Hz
- Circulating fluid Tap water or 15% ethylene glycol, 30% Dowcal100, ControXic 1642, Hexid A4, Coolflow IGE, NALCOCCL105
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, HRS050-AF-20, Thermo Chiller, Standard, Series: HRS, 4700/5100 W Cooling, 200 to 230 VAC, 1 ph, 50 to 60 Hz Power Source, 23/28 Lpm Flow Rate, Digital Control, R-410A Refrigerant, 5 to 40 deg C, 65/68 dB Sound Level, 976 mm H x 377 mm W x 592 mm D Dimensions
SPECIFICATIONS
| Control Type | : | Digital |
| Dimensions | : | 976 mm H x 377 mm W x 592 mm D |
| Flow Rate | : | 23/28 Lpm |
| Refrigerant Type | : | R-410A |
| Series | : | HRS |
| Sound Level | : | 65/68 dB |
| Temperature Rating | : | 5 to 40 deg C |
| Type | : | Standard |
| Cooling Capacity | : | 4700/5100 W |
| Power Source | : | 200 to 230 VAC, 1 ph, 50 to 60 Hz |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_HRS050_AN_20_Catalog.pdf
