SYJ5140-5MZ

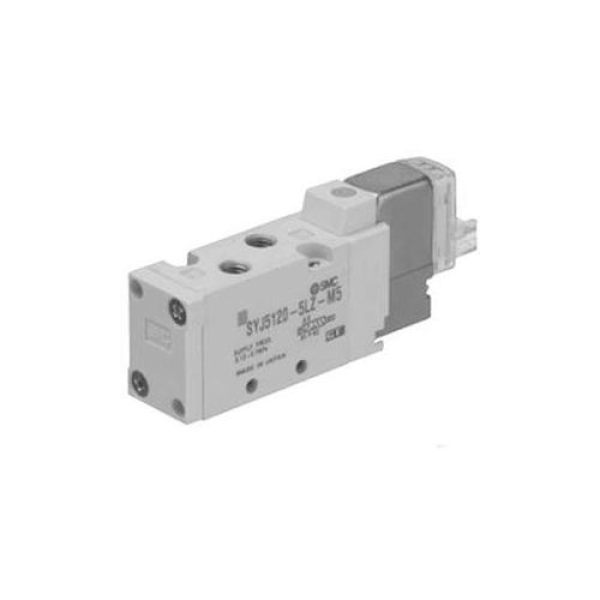

SMC® SYJ5140-5MZ SYJ5000 5-Port Solenoid Valve, 0.15 to 0.7 MPa Pressure, 0.21 Cv Flow Rate, Die Cast Aluminum Body
- CP#:
- Item#: SYJ5140-5MZ
- Mfr#: SYJ5140-5MZ
- Fluid air Operating pressure range from 0.1 - 0.7MPa
- Cv factor, body ported range 0.17 - 0.2; base mounted 0.25
- Coil rated voltage 3, 5, 6, 12, 24VDC; 100, 110, 200, 220VAC
- Ambient and fluid temperature is 50 deg C
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, SYJ5140-5MZ, Solenoid Valve, 5-Port, Series: SYJ5000, 0.15 to 0.7 MPa Pressure, -10 to 50 deg C, 0.21 Cv Flow Rate, Media: Air, 2-Position Actuator, Die Cast Aluminum Body, H-NBR Softgoods, White, 68.2 mm H x 32 mm W x 65.9 mm L Dimensions
SPECIFICATIONS
| Actuator Type | : | 2-Position |
| Color | : | White |
| Dimensions | : | 68.2 mm H x 32 mm W x 65.9 mm L |
| Media | : | Air |
| Series | : | SYJ5000 |
| Softgoods Material | : | H-NBR |
| Temperature Rating | : | -10 to 50 deg C |
| Type | : | 5-Port |
| Pressure Rating | : | 0.15 to 0.7 MPa |
| Flow Rate | : | 0.21 Cv |
| Body Material | : | Die Cast Aluminum |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_SS5YJ5_42_02_01T_Catalog.pdf
