VQZ312-5YZ1-02T

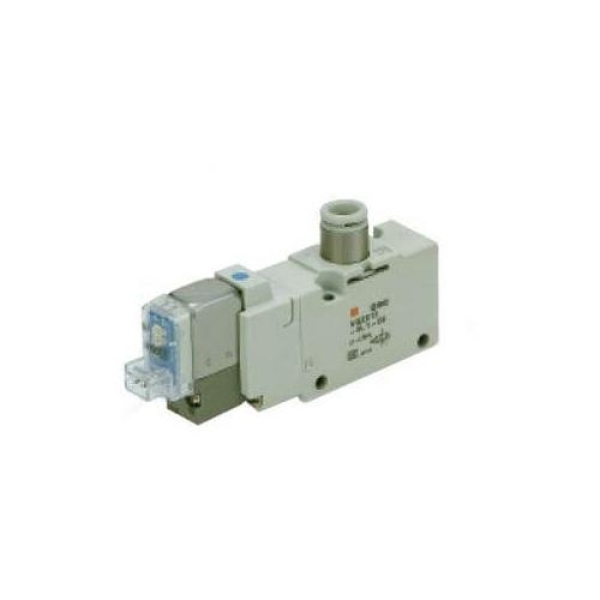

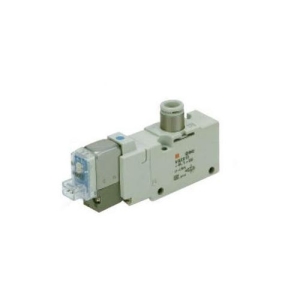

SMC® VQZ312-5YZ1-02T VQZ 3-Port Solenoid Valve, 0.1 to 0.7 MPa Pressure, Aluminum Body
- CP#:
- Item#: VQZ312-5YZ1-02T
- Mfr#: VQZ312-5YZ1-02T
- Operating pressure range 0.1 to 0.7 MPa
- Cv factor VQZ200 0.4 to 0.6; VQZ300 0.75 to 0.9
- Coil rated voltage 12, 24 VDC; 100, 110, 200, 220 VAC
- Response time VQZ200 metal seal 14 ms or less; rubber seal 15 ms or less; VQZ300 metal seal 17 ms or less; rubber seal 25 ms or less
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
SMC®, VQZ312-5YZ1-02T, Solenoid Valve, 3-Port, Series: VQZ, 0.1 to 0.7 MPa Pressure, Class B Pressure Class, 14 to 122 deg F, Media: Air/Inert Gas, 2-Position Actuator, Aluminum Body, Rubber Seal Softgoods, 38.5 mm H x 18 mm W x 75.5 mm L Dimensions
SPECIFICATIONS
| Actuator Type | : | 2-Position |
| Dimensions | : | 38.5 mm H x 18 mm W x 75.5 mm L |
| Media | : | Air/Inert Gas |
| Pressure Class | : | Class B |
| Series | : | VQZ |
| Softgoods Material | : | Rubber Seal |
| Temperature Rating | : | 14 to 122 deg F |
| Type | : | 3-Port |
| Pressure Rating | : | 0.1 to 0.7 MPa |
| Body Material | : | Aluminum |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/SMC_VQZ115_5M1_N7_PR_Catalog.pdf
