03018OT3E286T-G

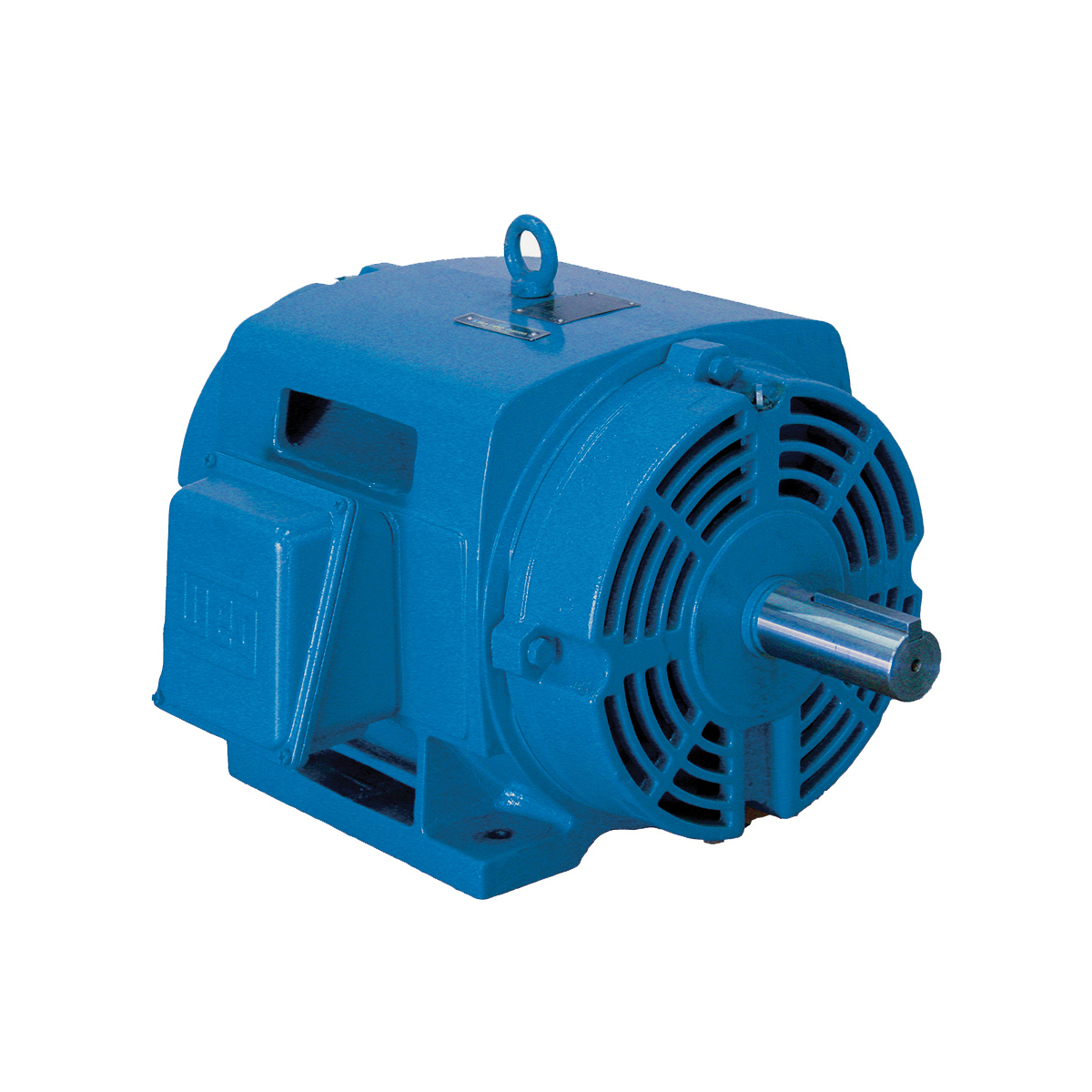

WEG 03018OT3E286T-G Continuous-Duty AC Motor With Internal AEGIS® Ring, Open Drip-Proof Enclosure, 30 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 286T Frame, 1770 rpm Speed, Footed Mount
- CP#:
- Item#: 03018OT3E286T-G-P01
- Mfr#: 03018OT3E286T-G
- High starting torque
- New ventilation system for improved thermal performance
- Robust design
- Regreasable bearings
- Motor frame painting system 500 hr salt spray resistant
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, Air Handling Motors, General Purpose HVAC Motors Application, 30 hp, 208/230/460 VAC, 78.3 to 70.8/35.4 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, Open Drip-Proof Enclosure, 286T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 87.8 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 24.882 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 30 hp |
| Torque Rating | : | 87.8 ft-lb |
| Material | : | Cast Iron |
| Amperage Rating | : | 78.3 to 70.8/35.4 A |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 24.882 in L |
| Rotation | : | CW/CCW |
| Application Type | : | Air Handling Motors, General Purpose HVAC Motors |
| Phase | : | 3 |
| Frame | : | 286T |
| Speed | : | 1770 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Open Drip-Proof |
DOCUMENTS
-
Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/569/WEG_03018OT3E286T_G_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/569/WEG_03018OT3E286T_G_Specification_Sheet.pdf -
Warranty https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/607/WEG_3336OT1BW56_S_Warranty.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/729/WEG_1218OS1B48_S_Catalog.pdf
