00118ES1E143JP

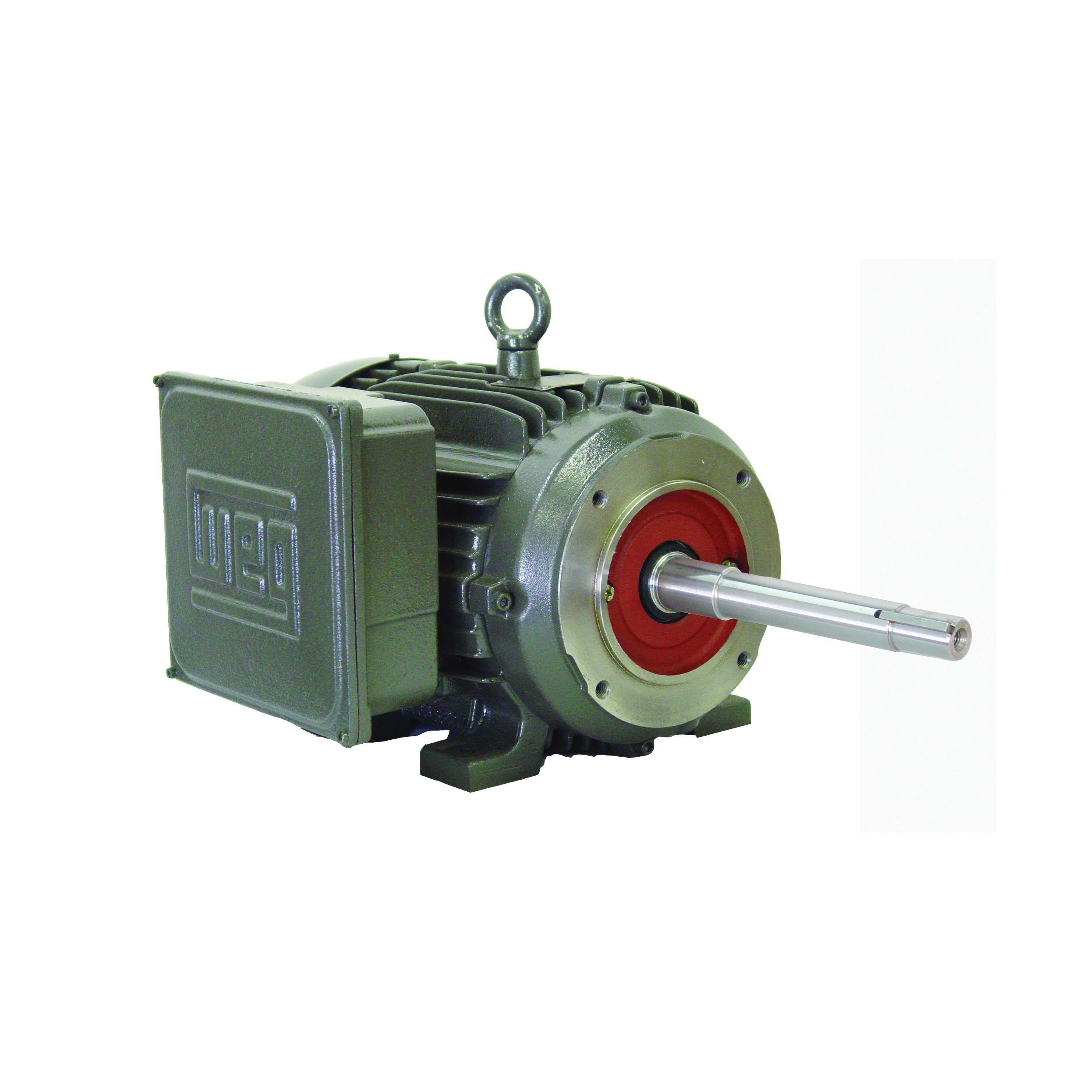

WEG 00118ES1E143JP Closed Couple Pump Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 208/230/460 VAC, 60 Hz, 1 ph Phase, 143JP Frame, 1800 rpm Speed, C-Face Footed Mount
- CP#:
- Item#: 00118ES1E143JP-P01
- Mfr#: 00118ES1E143JP
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Gasketed conduit box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 1 hp, 208/230/460 VAC, 2.65 A, 60 Hz Frequency, 1 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 143JP Frame, 1.15 Service Factor, 2.94 ft-lb Torque, C-Face Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 18.519 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 1 hp |
| Torque Rating | : | 2.94 ft-lb |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 2.65 A |
| Type | : | Closed Couple Pump Continuous-Duty |
| Insulation Class | : | Class F |
| Temperature Rating | : | 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 18.519 in L |
| Application Type | : | Jet Pump (JM/JP) Motors |
| Phase | : | 1 |
| Frame | : | 143JP |
| Speed | : | 1800 rpm |
| Mounting Type | : | C-Face Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/123/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/123/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/123/WEG_05018ET3E326JPW22G_Catalog.pdf
