06018OT3E364JM

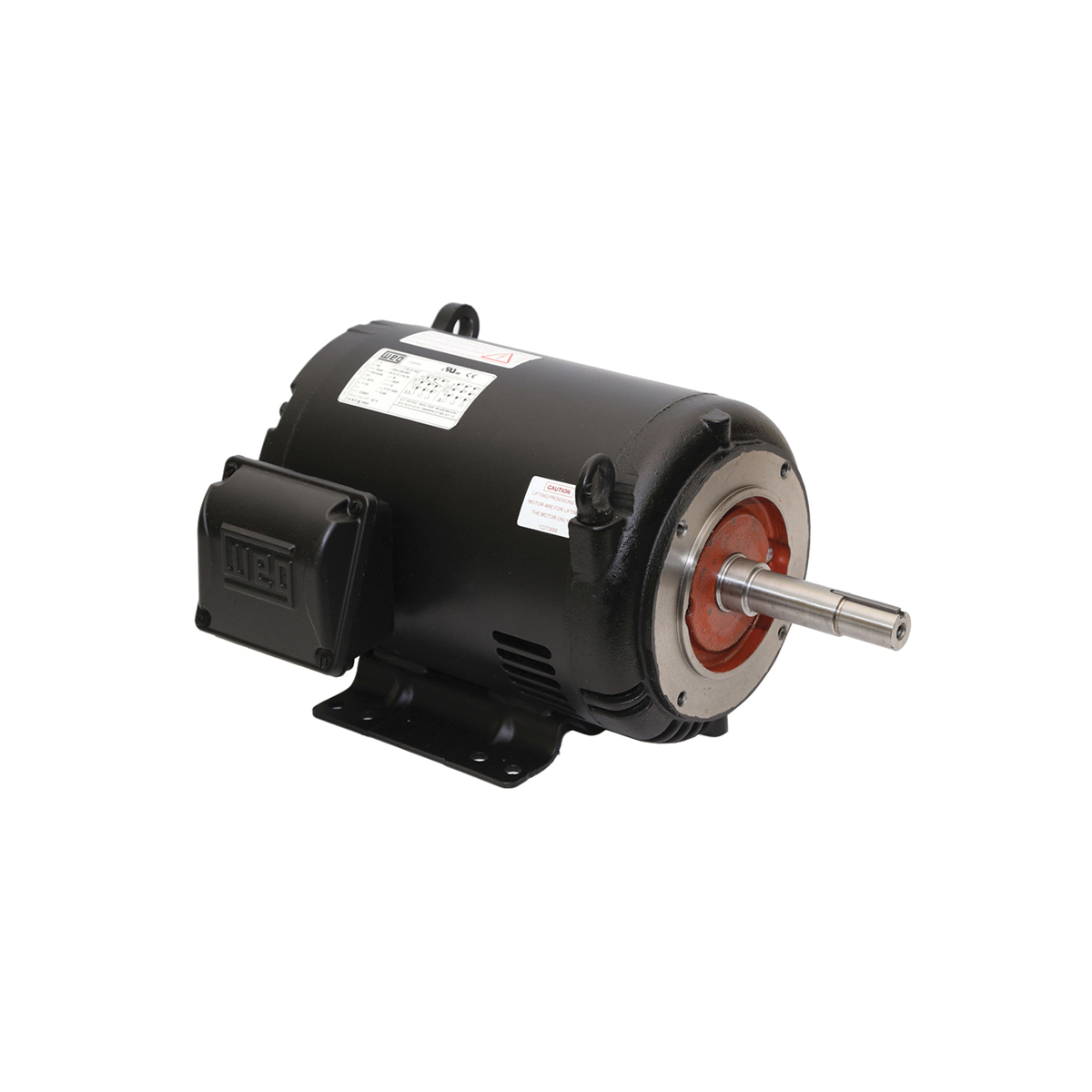

WEG 06018OT3E364JM Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 60 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 364/5JM Frame, 1780 rpm Speed, Footed Mount
- CP#:
- Item#: 06018OT3E364JM-P01
- Mfr#: 06018OT3E364JM
- Stainless steel nameplate laser etched with high contrast background
- Regreasable bearings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 60 hp, 208/230/460 VAC, 154 to 140/69.9 A, 60 Hz Frequency, 3 ph ph, 1780 rpm Speed, Open Drip-Proof Enclosure, 364/5JM Frame, 1-1/4 in Dia x 5-1/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 175 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 29.139 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 60 hp |
| Torque Rating | : | 175 ft-lb |
| Variable Torque Speed Range | : | 1000:1 |
| Material | : | Cast Iron |
| Amperage Rating | : | 154 to 140/69.9 A |
| Type | : | Closed Couple Pump Continuous-Duty |
| Shaft Size | : | 1-1/4 in Dia x 5-1/4 in L |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 29.139 in L |
| Rotation | : | CW/CCW |
| Application Type | : | Jet Pump (JM/JP) Motors |
| Phase | : | 3 |
| Frame | : | 364/5JM |
| Speed | : | 1780 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Open Drip-Proof |
DOCUMENTS
-
Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/559/WEG_06018OT3E364JM_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/559/WEG_06018OT3E364JM_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/607/WEG_05018ET3E326JP_W22G_Catalog.pdf -
Warranty https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/607/WEG_3336OT1BW56_S_Warranty.pdf
