- WEG 00152ES1E182T
00152ES1E182T

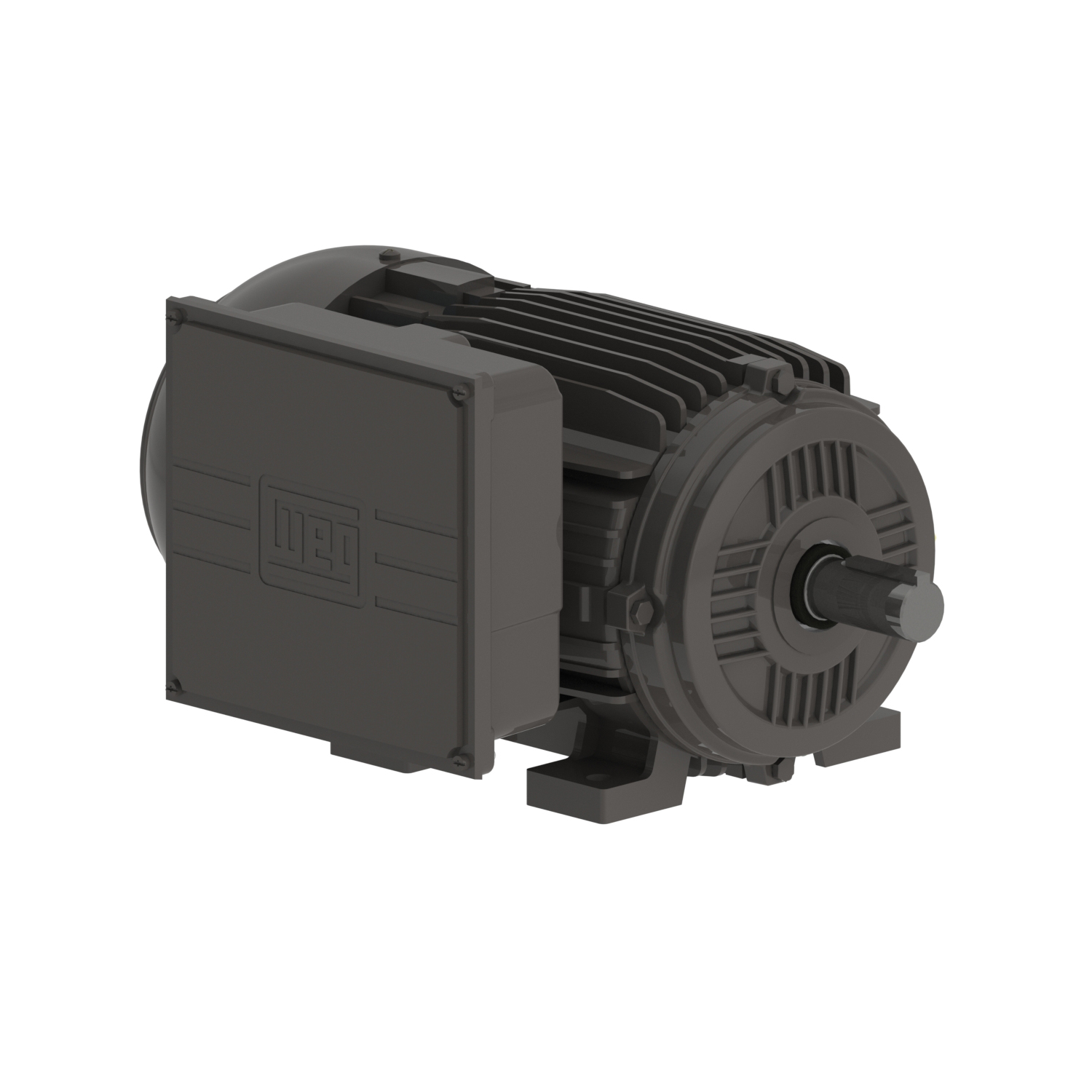

WEG 00152ES1E182T Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 208/230/460 VAC, 60 Hz, 1 ph Phase, 182T Frame, 1145 rpm Speed, Footed Mount
- CP#:
- Item#: 00152ES1E182T-P01
- Mfr#: 00152ES1E182T
- V-ring seals
- NPT threaded terminal box
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for severe duty use.
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 1.5 hp, 208/230/460 VAC, 10.5 to 9.8/4.9 A, 60 Hz Frequency, 1 ph ph, 1145 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 182T Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 6.61 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 16.05 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 1.5 hp |
| Torque Rating | : | 6.61 ft-lb |
| Material | : | Cast Iron |
| Amperage Rating | : | 10.5 to 9.8/4.9 A |
| Type | : | Continuous-Duty |
| Shaft Size | : | 1-1/8 in Dia x 2-3/4 in L |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 16.05 in L |
| Rotation | : | CW/CCW |
| Application Type | : | General Purpose AC Motors |
| Phase | : | 1 |
| Frame | : | 182T |
| Speed | : | 1145 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Fan Cooled |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/123/WEG_01018ET3ER215TCW22_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/123/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/123/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/629/WEG_00152ES1E182T_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/629/WEG_00152ES1E182T_Specification_Sheet.pdf
