00118ES1BPFD56

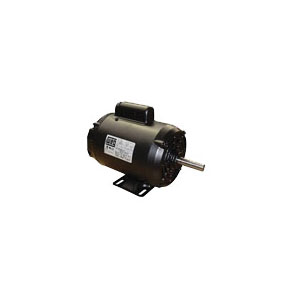

WEG 00118ES1BPFD56 Continuous-Duty AC Motor, Totally Enclosed Air Over Enclosure, 1 hp, 115/208/230 VAC, 60 Hz, 1 ph Phase, D56 Frame, 1760 rpm Speed, Footed Mount
- CP#:
- Item#: 00118ES1BPFD56-P01
- Mfr#: 00118ES1BPFD56
- High starting torque
- New ventilation system for improved thermal performance
- Robust design
- Regreasable bearings
- Motor frame painting system 500 hr salt spray resistant
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, Air Handling Motors, Farm Duty Motors Application, 1 hp, 115/208/230 VAC, 14/6.7 to 7 A, 60 Hz Frequency, 1 ph ph, 1760 rpm Speed, Totally Enclosed Air Over Enclosure, D56 Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 2.94 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class B, Rolled Steel, 12.283 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 1 hp |
| Torque Rating | : | 2.94 ft-lb |
| Material | : | Rolled Steel |
| Amperage Rating | : | 14/6.7 to 7 A |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class B |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 12.283 in L |
| Rotation | : | CW/CCW |
| Application Type | : | Air Handling Motors, Farm Duty Motors |
| Phase | : | 1 |
| Frame | : | D56 |
| Speed | : | 1760 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Totally Enclosed Air Over |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/123/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/123/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/521/WEG_00118ES1BPFD56_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/521/WEG_00118ES1BPFD56_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/789/WEG_5018EP3ESS56CFL_Catalog.pdf
