QT15/16

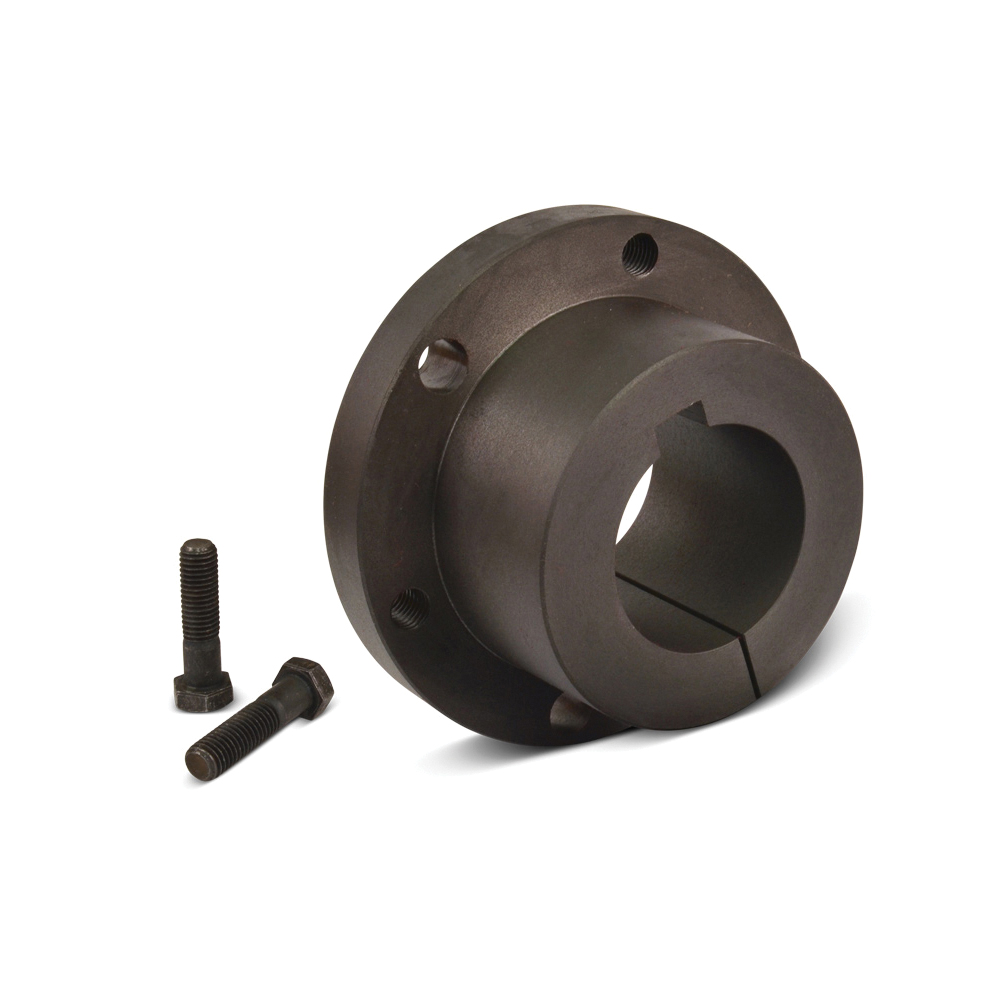

TB Wood's® Sure-Grip® QT15/16 Standard QD Bushing, 15/16 in Dia Bore, 1-5/8 in Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Steel
- CP#:
- Item#: QT15/16-P01
- Mfr#: QT15/16
- UPC: 698672190275
- Size QT bushing
- 6-hole drilling makes installation and removal quick and easy
- Keyseat 180 deg from split, precise taper provides proper wedging action
- Saw cut through flange and taper to provide a true clamp fit
- Cap screws used to secure bushings to sheave and to remove bushing from sheave
- Permit four-way mounting
- Easy installation and removal
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
TB Wood's® Sure-Grip® QD Bushing, Standard, 15/16 in Bore Dia, 1-5/8 in Barrel Dia, 2 in Bolt Circle, 2-1/2 in Flange Dia, 1/4 in Flange Thickness, 2 Bolt Holes, 1/4-20 x 1 in Screw, 1750 in-lb, 1-1/4 in Overall Length, 1/4 x 1/8 in Keyway, Steel
SPECIFICATIONS
| Torque Rating | : | 1750 in-lb |
| Flange Thickness | : | 1/4 in |
| Keyway Size | : | 1/4 x 1/8 in |
| Bore Diameter | : | 15/16 in |
| Overall Length | : | 1-1/4 in |
| Material | : | Steel |
| Type | : | Standard |
| Bolt Circle Diameter | : | 2 in |
| Number of Bolt Holes | : | 2 |
| Screw Size | : | 1/4-20 x 1 in |
| Barrel Diameter | : | 1-5/8 in |
| Flange Diameter | : | 2-1/2 in |
