- WEG 02518OT3P284T
02518OT3P284T

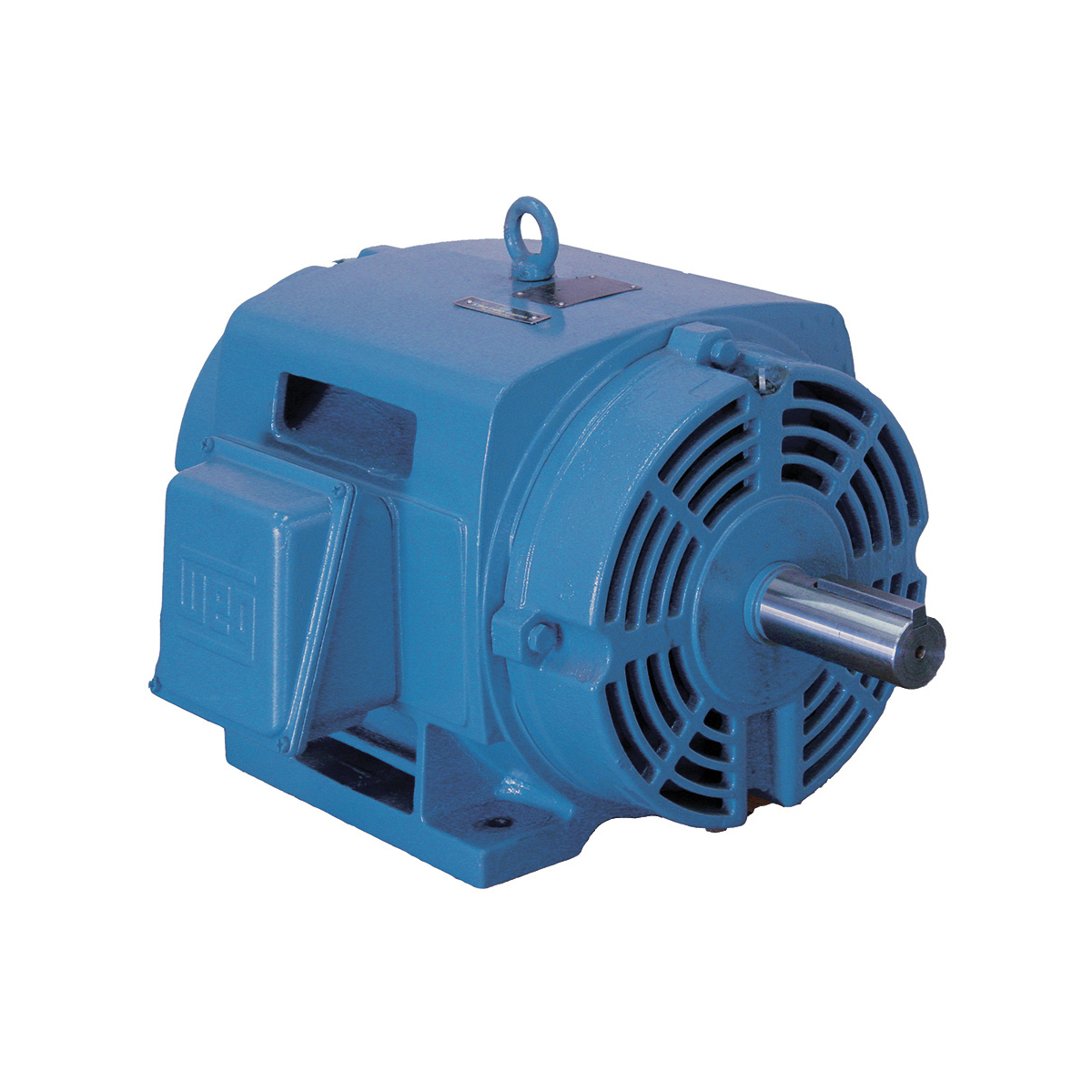

WEG 02518OT3P284T Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 25 hp, 200 VAC, 60 Hz, 3 ph Phase, 284T Frame, 1770 rpm Speed, Footed Mount
- CP#:
- Item#: 02518OT3P284T-P01
- Mfr#: 02518OT3P284T
- Aluminum endshields
- Cast iron flanges for improved strength
- Internal bolts, giving a clean surface to the motor
- Double shielded ball bearings
- Robust design
- IP55 rating
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 25 hp, 200 VAC, 68.8 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, Open Drip-Proof Enclosure, 284T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 73.2 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 23.386 in L Dimensions
SPECIFICATIONS
| Horsepower | : | 25 hp |
| Torque Rating | : | 73.2 ft-lb |
| Material | : | Cast Iron |
| Amperage Rating | : | 68.8 A |
| Type | : | Continuous-Duty |
| Insulation Class | : | Class F |
| Bearing Type | : | Ball |
| Temperature Rating | : | -20 to 40 deg C |
| Service Factor | : | 1.15 |
| Dimensions | : | 23.386 in L |
| Rotation | : | CW/CCW |
| Application Type | : | General Purpose AC Motors |
| Phase | : | 3 |
| Frame | : | 284T |
| Speed | : | 1770 rpm |
| Mounting Type | : | Footed |
| Enclosure Type | : | Open Drip-Proof |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/29/WEG_00518ET3EBMQ184TC_W2_Catalog.pdf -
Warranty https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/607/WEG_3336OT1BW56_S_Warranty.pdf -
Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/789/WEG_02518OT3P284T_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/789/WEG_02518OT3P284T_Specification_Sheet.pdf
