ABB E92/32
ABB
Email Print

E92/32

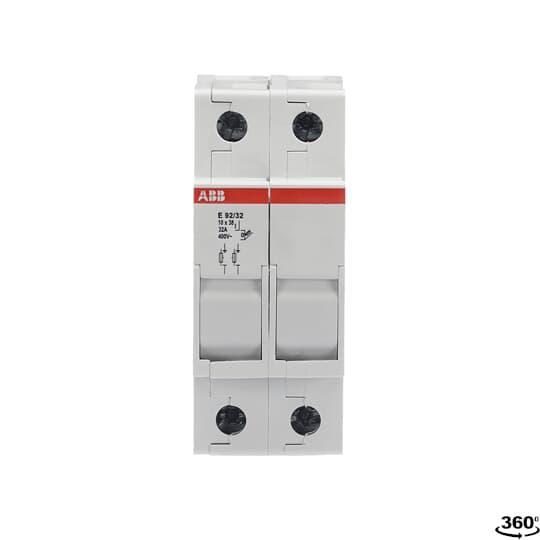

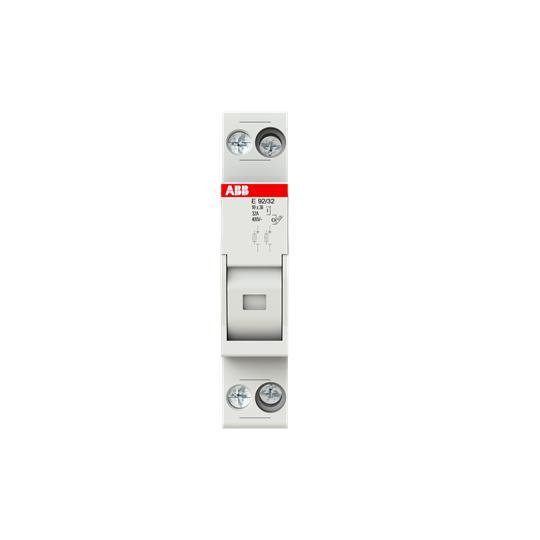

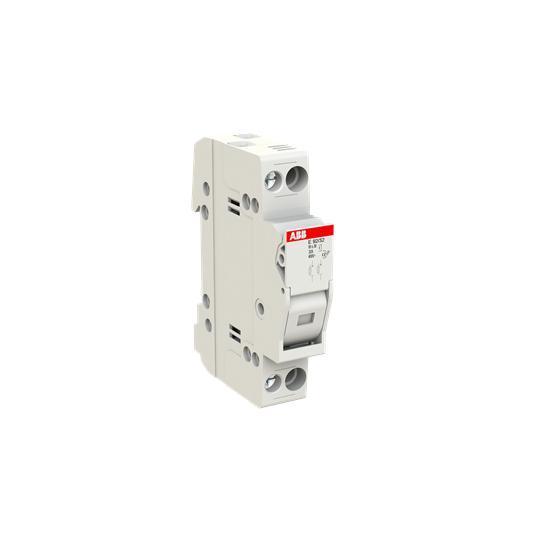

ABB E92/32 Fuse Switch Disconnector, 690 VAC, 32 A, 2 Poles

  • Item#: E92/32
  • Mfr#: E92/32
  • UPC: 804325553773
    • AC-22B up to 400 V according to IEC 60947-3
    • Compact design
    • High temperature performance thanks to venting grooves and cooling chambers that improve heat dissipation also for multipole configurations
    • Sealable in closed position and pad lockable in open position
    • Without blown fuse indicator
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

E 90 fuse disconnectors are designed for switching under load, ensuring isolation and protection against short circuit and overload, in compliance with the IEC 60947-3 Standard.

ABB Fuse Switch Disconnector, Series: E 90, 690 VAC, 32 A, 2 Pole, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, For Use With: Switchboards, 0.064 m L x 0.035 m W x 0.085 m H

SPECIFICATIONS

Dimensions      :      0.064 m L x 0.035 m W x 0.085 m H
Fuse Diameter      :      10 mm
Fuse Length      :      38 mm
Mounting Type      :      DIN Rail
Series      :      E 90
Suitable For Use With      :      Switchboards
Voltage Rating      :      690 VAC
Amperage Rating      :      32 A
Number of Poles      :      2

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/99/ABB_E9130CCS_Catalog.pdf
  • pdf
    RoHS     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/99/ABB_E9130CCS_RoHS.pdf
