- Brennan 6801-12-12-NWO-FG
6801-12-12-NWO-FG

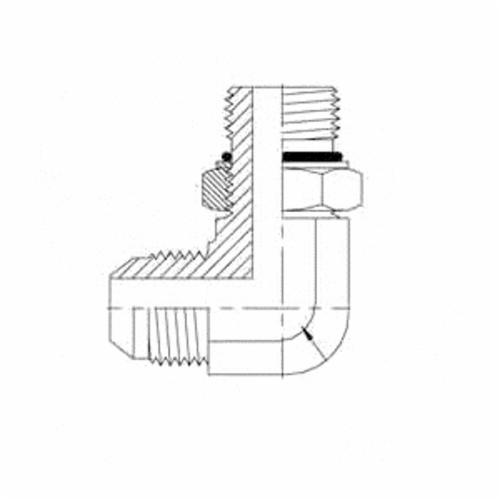

Brennan 6801-12-12-NWO-FG 6801-NOW-FG Tube Elbow, 3/4 in x 1-1/16-12 Nominal, 37 deg Male JIC Flare x Male ORB, Steel
- CP#:
- Item#: 6801-12-12-NWO-FG
- Mfr#: 6801-12-12-NWO-FG
- 2-ports
- 0.609 in drill, 1.062 in Y flats
- This fitting is made of steel for weldability and rust resistance and is forged to increase the material's strength and resistance to mechanical shock and vibration
- It is for use with tubing that is flared 37 degrees to provide a tight seal
- It is a joint industrial Council (JIC) design that meets Society of automotive Engineers (SAE) specification 070220 and military specification 51527 for quality assurance
- Fitting connects to tubing on one end and a male straight thread o-ring boss on the other
- It connects to tubing on one end and a male straight thread o-ring boss on the other
- This elbow fitting, also called "ell," connects two pipes at a 90-degree angle to change the direction of flow between pipes
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Brennan Tube Elbow, Series: 6801-NOW-FG, Fitting/Connector Type: 90 deg Elbow, 3/4 in x 1-1/16-12 Nominal, 37 deg Male JIC Flare x Male ORB, 1-1/4 in Hex, 6000 psi, -63 to 400 deg F, Steel, 1.94 in L, Forged
SPECIFICATIONS
| Dimensions | : | 1.94 in L |
| Hex Size | : | 1-1/4 in |
| Method of Manufacture | : | Forged |
| Pressure Rating | : | 6000 psi |
| Series | : | 6801-NOW-FG |
| Temperature Rating | : | -63 to 400 deg F |
| Fitting/Connector Type | : | 90 deg Elbow |
| Nominal Size | : | 3/4 in x 1-1/16-12 |
| End Style | : | 37 deg Male JIC Flare x Male ORB |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_2404_16_16_Catalog.pdf
