6004-RS

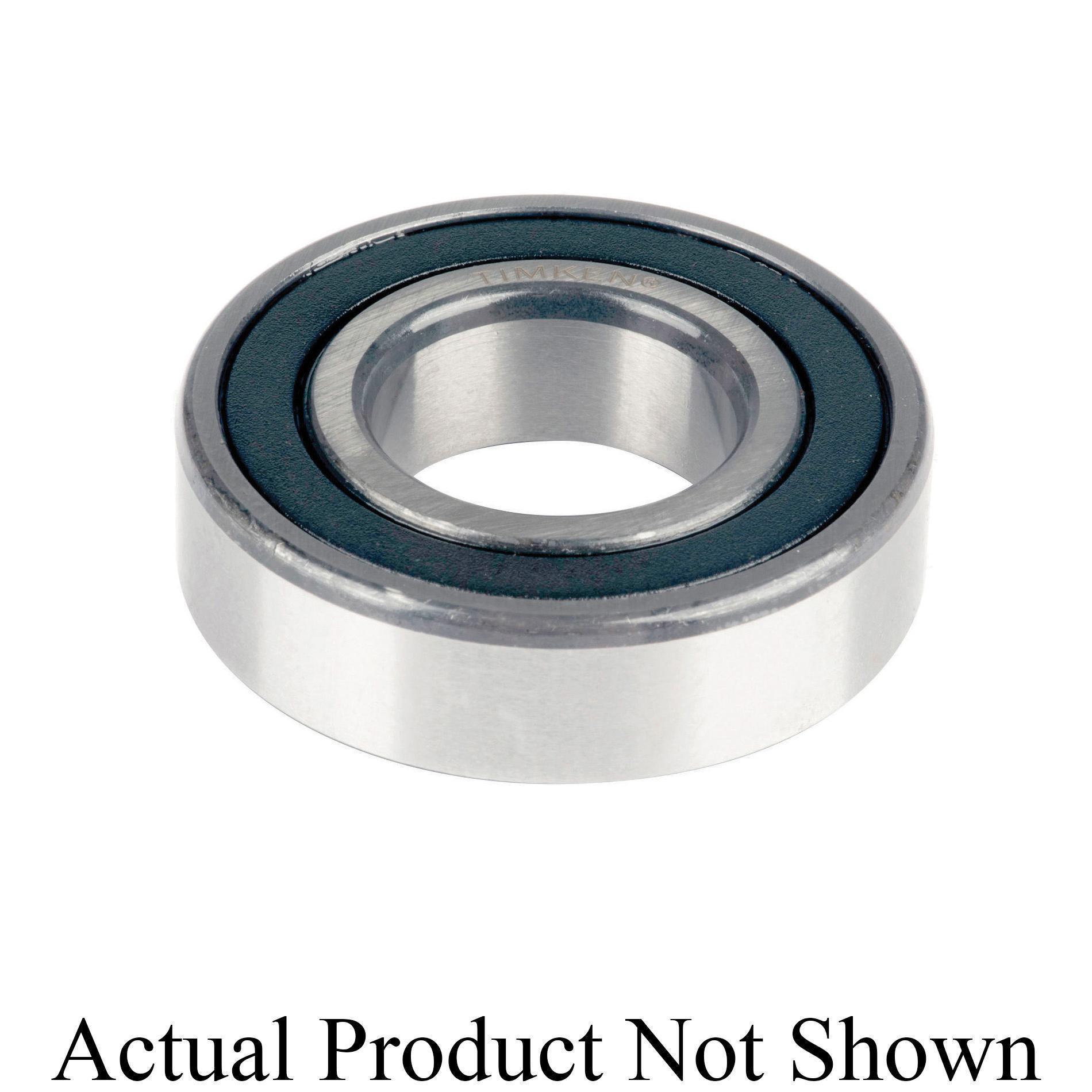

Timken® 6004-RS 6000 Extra Light Standard Straight Bore ISO Deep Groove Radial Ball Bearing, 20 mm Dia Bore, 42 mm Dia Outside, 1 Rows, 12 mm W, 2113.204 lb Dynamic/1124 lb Static4471221595 Load
- CP#:
- Item#: 6004 RS TIM
- Mfr#: 6004-RS
- UPC: 053893720722
- Super finished raceways
- Quiet operation
- ISO standard interchangeable dimensions
- Electric motor quality (EMQ)
- Contact seals offer superior lubricant retention and bearing protection from contaminants
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 6004-RS, ISO Deep Groove Radial Ball Bearing, Extra Light Standard Straight Bore, Series: 6000, 20 mm Bore, 42 mm OD, 1 Rows, 12 mm Width, Single Contact Seal Closure, 2113.204 lb Dynamic/1124 lb Static4471221595 Load, Nitrile Rubber Seal, Cold Rolled Steel Cage, 17000 rpm Grease/25000 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | 6000 |
| Bearing Material | : | Steel |
| Load Capacity | : | 2113.204 lb Dynamic/1124 lb Static4471221595 |
| Maximum Speed | : | 17000 rpm Grease/25000 rpm Oil |
| Outside Diameter | : | 42 mm |
| Number of Rows | : | 1 |
| Seal Material | : | Nitrile Rubber |
| Inside Diameter | : | 20 mm |
| Mounted | : | No |
| Measurement System | : | Metric |
| Width | : | 12 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/10000/Timken_16012_C3_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/10000/Timken_6004_RS_Specification_Sheet.pdf
