HUB CITY REDUCER

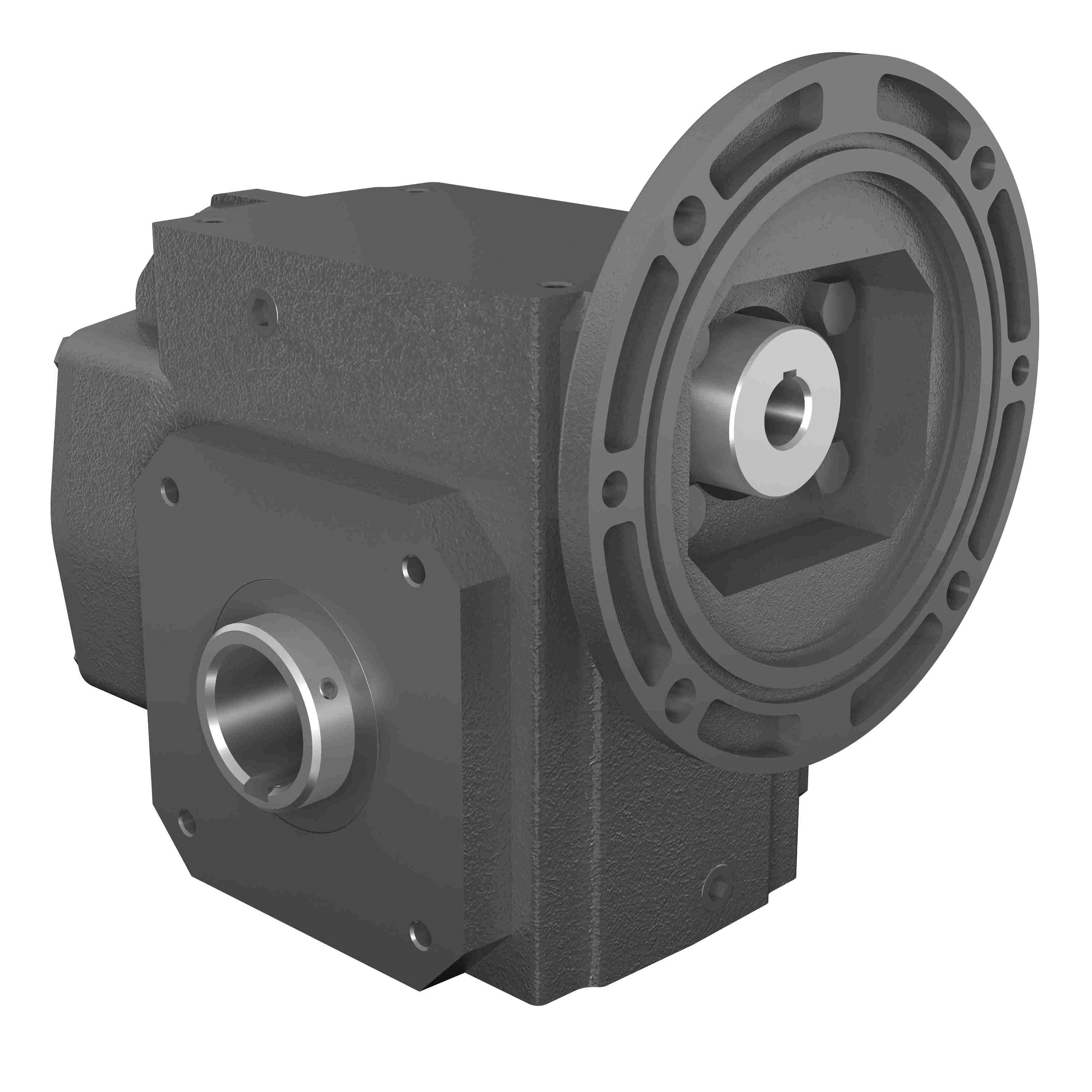

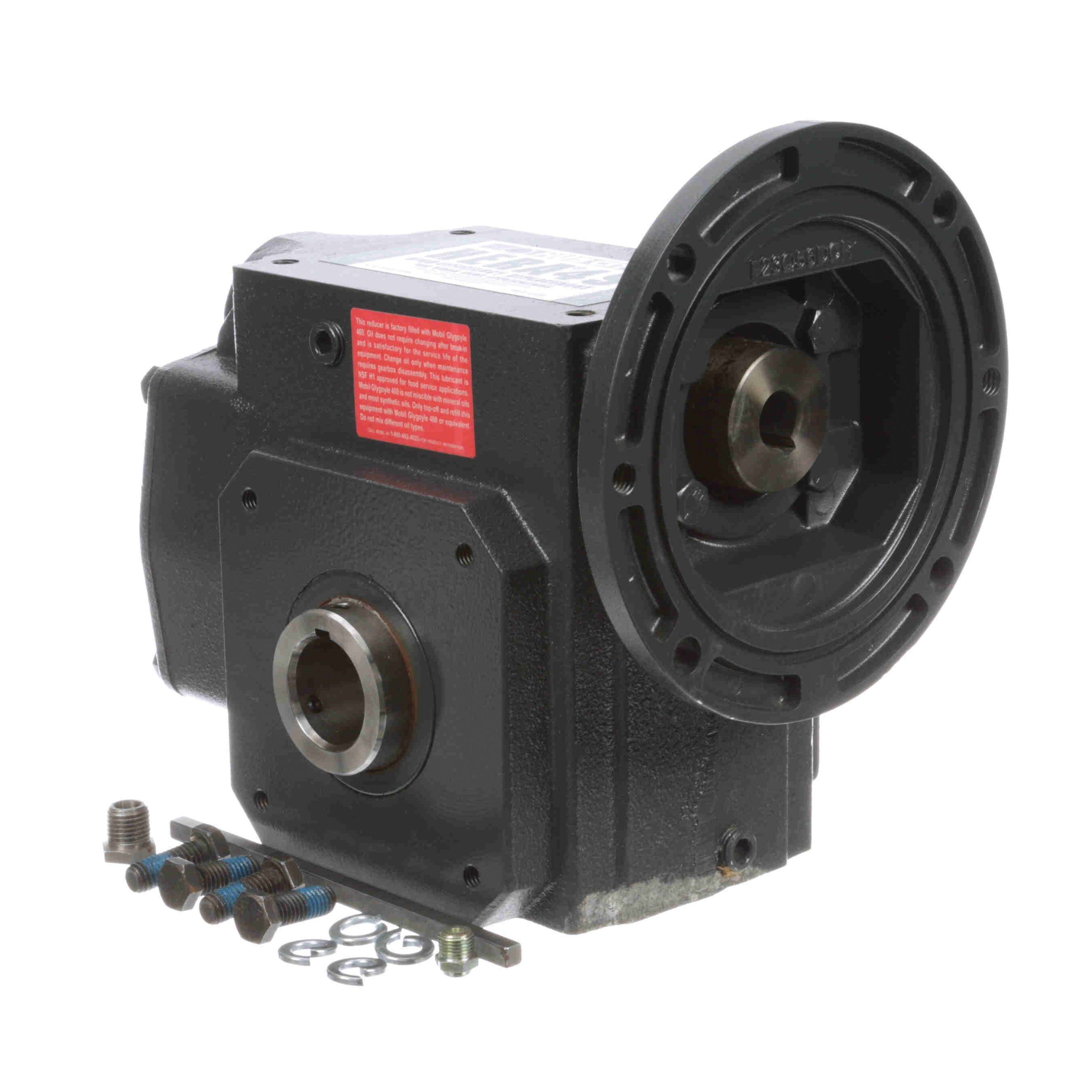

Hub City® 0250-54038 HERA®45 Double Reduction High Efficiency Right Angle Helical Hypoid Reducer, C-Face Quill Input, Hollow Bore Output, 2.01 hp, 39.98:1 Gear, 43.8 rpm Maximum Output, 2600 in-lb Torque Rating
- CP#:
- Item#: 0250-54038
- Mfr#: HUB CITY REDUCER
- UPC: 662798733432
-
90% Efficiency-Up to 2x TorqueFour sizes can replace up to twelve sizes of worm speed reducersCast iron housingRolling action gearing (helical and hypoid)Over-sized bearingsViton® sealsBronze bushing quill linerFactory lubricated with Food Grade synthetic lubricant - USDA H1HubLoc® keyless bushing system is available on hollow output bore HERA gear drives.
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Hub City® Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: HERA®45, 39.98:1 Gear Ratio, 2.01 hp, C-Face Quill Input, Hollow Bore Output, 0.626 in Dia Input, 1.438 in Dia Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2600 in-lb, 3.263 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 1/8 in Output Keyway, 90 % Efficiency, CCW/CW, PAG Synthetic Oil Lubrication, Cast Iron, 8 in L x 6.25 in W x 6.938 in H
SPECIFICATIONS
| Material | : | Cast Iron |
| Frame Size | : | 56C |
| Output Size | : | 1.438 in Dia |
| Input Size | : | 0.626 in Dia |
| Series | : | HERA®45 |
| Input Type | : | C-Face Quill |
| Output Type | : | Hollow Bore |
| Gear Ratio | : | 39.98:1 |
| Rotation Type | : | CCW/CW |
| Input Maximum Speed | : | 1750 rpm |
| Keyway Size | : | 3/16 x 3/32 in Input, 3/8 x 1/8 in Output |
| Type | : | Double Reduction High Efficiency Right Angle |
| Lubrication Type | : | PAG Synthetic Oil |
| Dimensions | : | 8 in L x 6.25 in W x 6.938 in H |
| Efficiency | : | 90 % |
| Horsepower | : | 2.01 hp |
| Output Maximum Speed | : | 43.8 rpm |
| Torque Rating | : | 2600 in-lb |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_HERA45ES78056C1000_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_HERA45ES78056C1000_Manual.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/Installation%20Manual_Hub_City_HERA_HCLI-10-A.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4821/10075E_Hub_City_No_8_HERA35-45_series.pdf
