HUB CITY GEARBOX

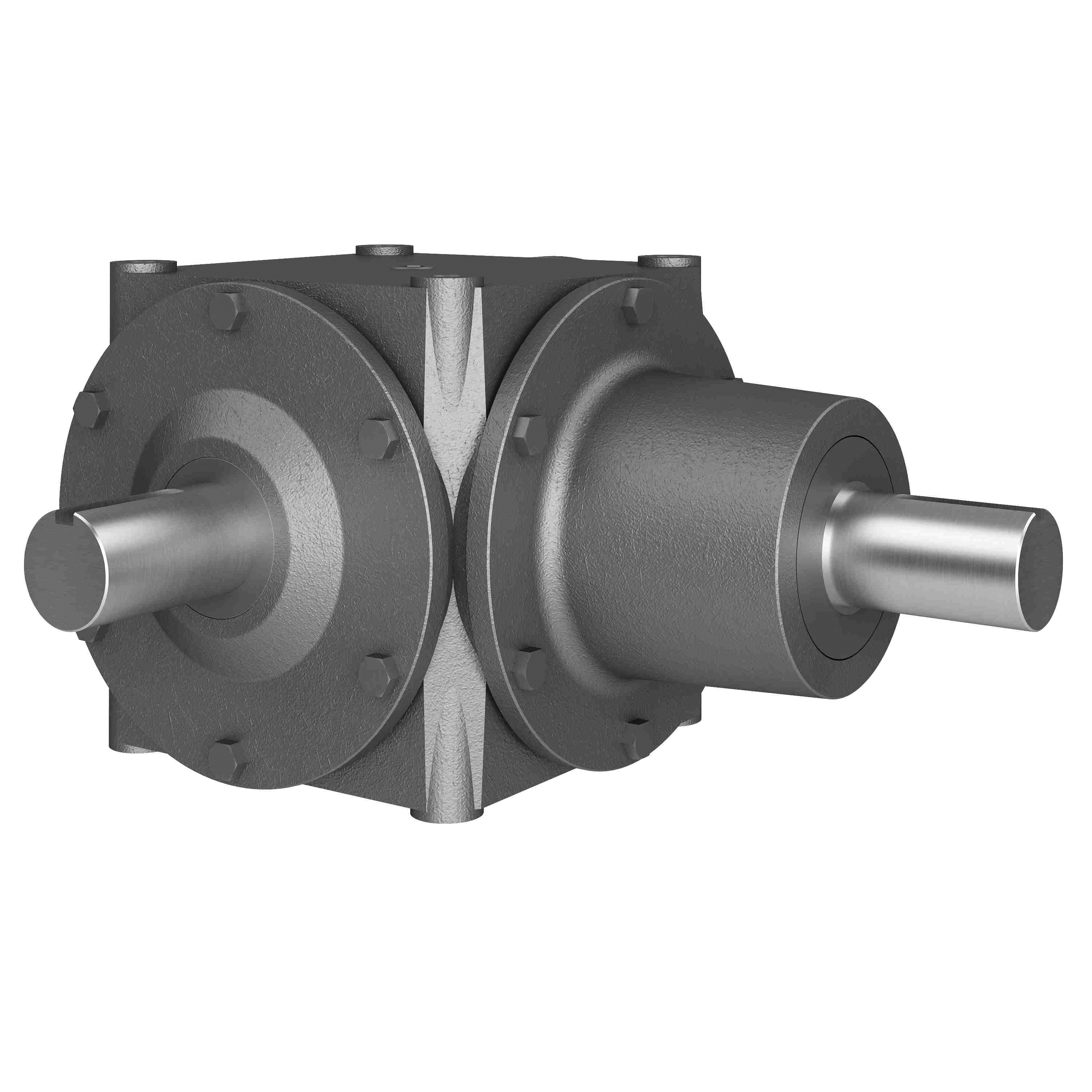

Hub City® 0220-59458 810 Right Angle Spiral Single Reduction Style C F Bevel Gear Reducer, Shaft Input, Shaft Output, 30.69 hp, 3:1 Gear, 583.3 rpm Maximum Output, 3316 in-lb Torque Rating
- CP#:
- Item#: 0220-59458
- Mfr#: HUB CITY GEARBOX
- UPC: 662798021300
-
Rugged ductile iron housingUniversal Mounting DimensionsSpiral Bevel (SP) or Straight Bevel (ST) gearingAlloy shaftingHeavy-duty industrial seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.
Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style C F, Series: 810, 3:1 Gear Ratio, 30.69 hp, Shaft Input, Shaft Output, 1-3/4 in Dia x 3-1/16 in L Input, 1-3/4 in Dia x 3-3/32 in L Output, 583.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 3316 in-lb, 11-1/2 in Centre Distance, 3/8 x 3/16 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Ductile Iron, 15-21/32 in D x 8-3/16 in H
SPECIFICATIONS
| Series | : | 810 |
| Output Size | : | 1-3/4 in Dia x 3-3/32 in L |
| Input Size | : | 1-3/4 in Dia x 3-1/16 in L |
| Mounting Type | : | Four-Bolt Surface |
| Material | : | Ductile Iron |
| Input Type | : | Shaft |
| Output Type | : | Shaft |
| Gear Ratio | : | 3:1 |
| Lubrication Type | : | Conventional Oil |
| Efficiency | : | 97.5 % |
| Dimensions | : | 15-21/32 in D x 8-3/16 in H |
| Input Maximum Speed | : | 1750 rpm |
| Keyway Size | : | 3/8 x 3/16 in Input |
| Type | : | Right Angle Spiral Single Reduction Style C F |
| Horsepower | : | 30.69 hp |
| Output Maximum Speed | : | 583.3 rpm |
| Torque Rating | : | 3316 in-lb |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22000101_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22059301_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/Installation_Manual_Hub_City_Bevel_HCLI-BG-03.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4820/10075E_Hub_City_Engineering_Manual_No_8_Catalog_D32-33.pdf
