HUB CITY REDUCER

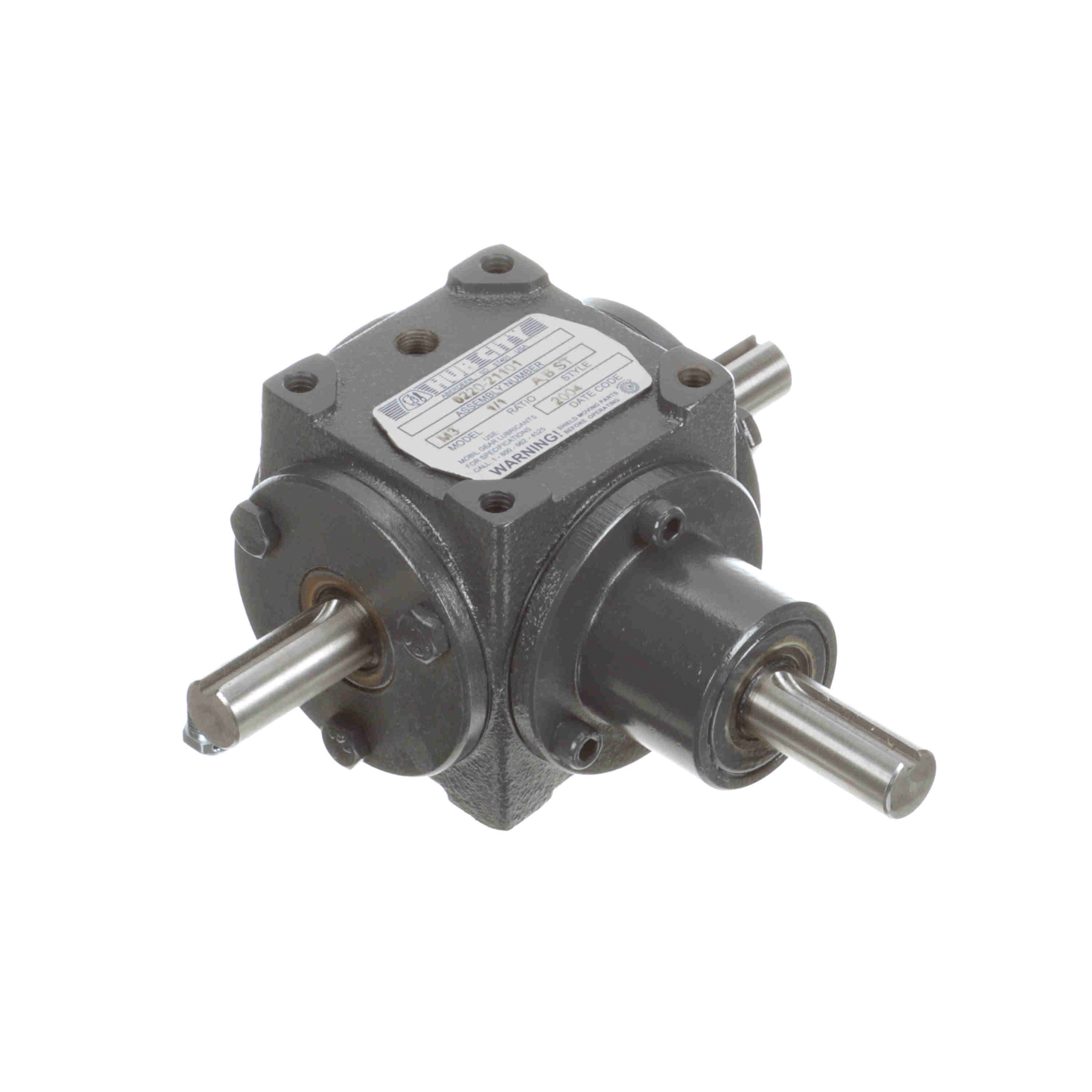

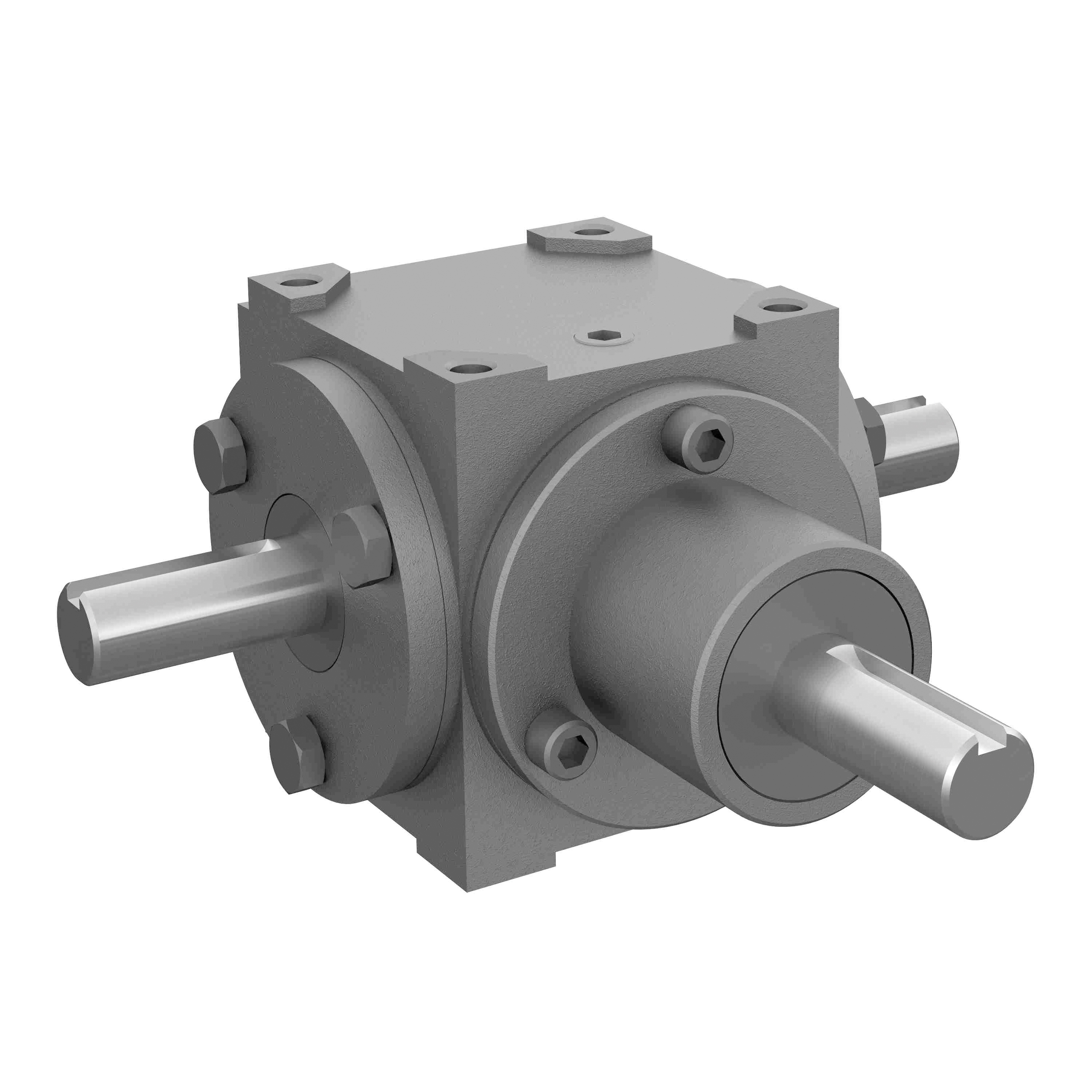

Hub City® 0220-21101 Right Angle Straight Single Reduction Style A B Bevel Gear Reducer, Shaft Input, Shaft Output, 2-1/4 hp, 1:1 Gear, 1750 rpm Maximum Output, 81 in-lb Torque Rating
- CP#:
- Item#: 0220-21101
- Mfr#: HUB CITY REDUCER
- UPC: 662798010830
-
Rugged cast iron housingUniversal Mounting DimensionsSpiral Bevel (SP) or Straight Bevel (ST) gearingAlloy shaftingHeavy-duty industrial seals
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.
Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style A B, Series: M3, 1:1 Gear Ratio, 2-1/4 hp, Shaft Input, Shaft Output, 5/8 in Dia x 1-17/32 in L Input, 5/8 in Dia x 1-1/2 in L Output, 1750 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 81 in-lb, 4-9/16 in Centre Distance, 3/16 x 3/32 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 6-15/32 in W x 6-3/16 in D x 3-3/16 in H
SPECIFICATIONS
| Series | : | M3 |
| Output Size | : | 5/8 in Dia x 1-1/2 in L |
| Input Size | : | 5/8 in Dia x 1-17/32 in L |
| Mounting Type | : | Four-Bolt Surface |
| Material | : | Cast Iron |
| Input Type | : | Shaft |
| Output Type | : | Shaft |
| Gear Ratio | : | 1:1 |
| Lubrication Type | : | Conventional Oil |
| Efficiency | : | 97.5 % |
| Dimensions | : | 6-15/32 in W x 6-3/16 in D x 3-3/16 in H |
| Input Maximum Speed | : | 1750 rpm |
| Keyway Size | : | 3/16 x 3/32 in Input |
| Type | : | Right Angle Straight Single Reduction Style A B |
| Horsepower | : | 2-1/4 hp |
| Output Maximum Speed | : | 1750 rpm |
| Torque Rating | : | 81 in-lb |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22000101_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Hub_City_22021101_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4402/Installation_Manual_Hub_City_Bevel_HCLI-BG-03.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdnmedia.regalbeloit.com/images/d120001/medias/docus/4820/10075E_Hub_City_Engineering_Manual_No_8_Catalog_D12-13.pdf
