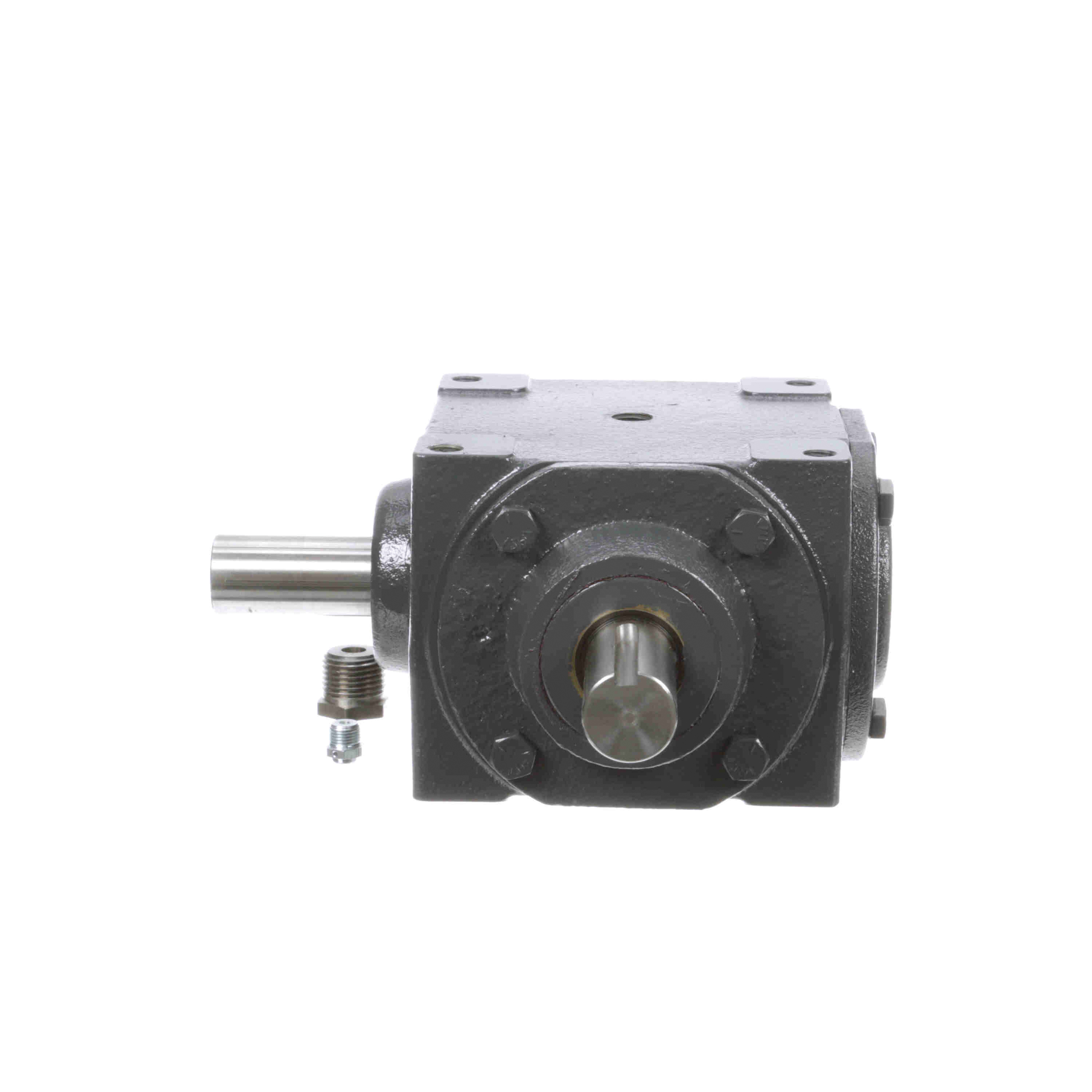

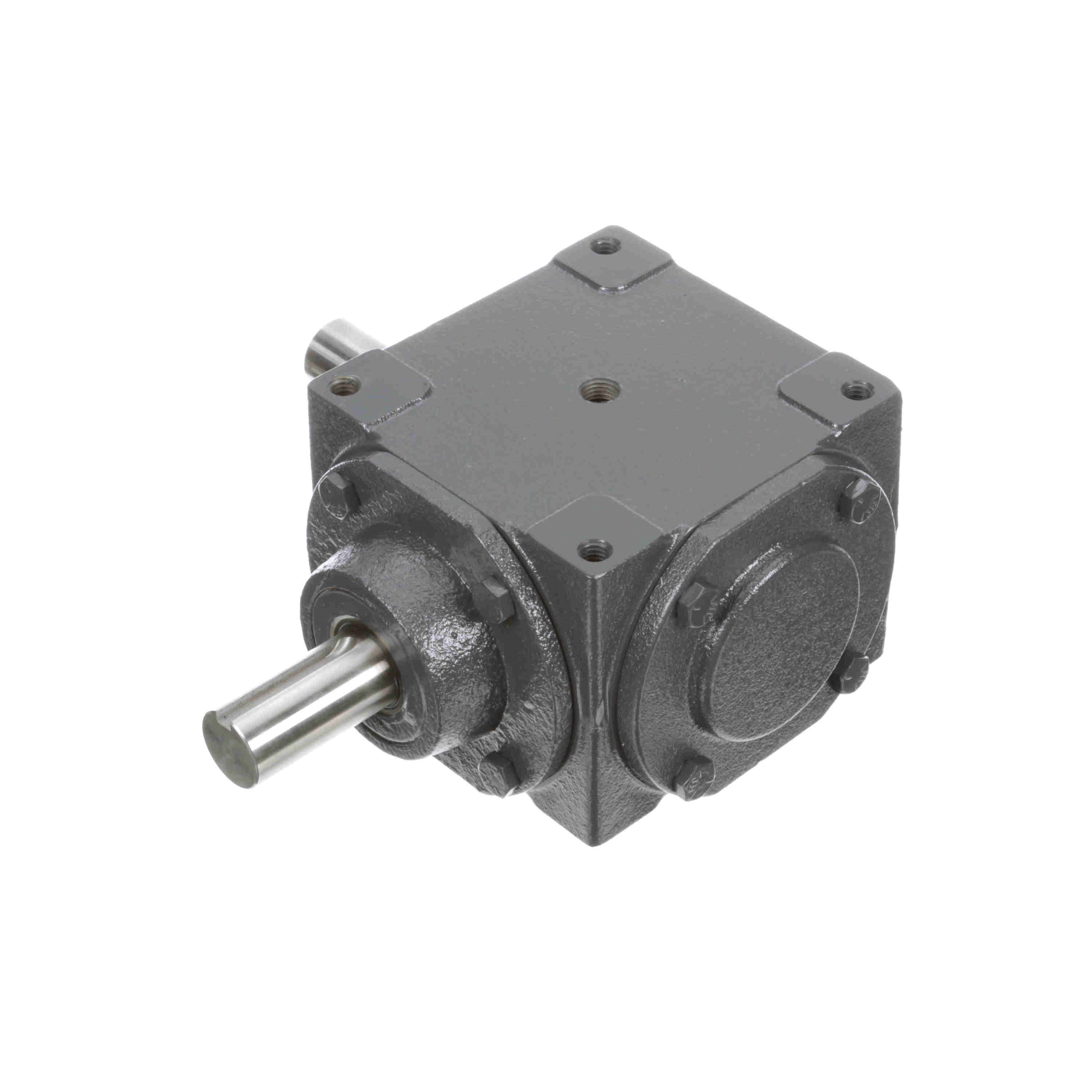

Hub City® 0220-00803 150 Right Angle Straight Single Reduction Style D E Bevel Gear Reducer, Shaft Input, Shaft Output, 12 hp, 1:1 Gear, 1150 rpm Maximum Output, 660 in-lb Torque Rating

  • Item#: 0220-00803-150
  • Mfr#: 0220-00803
  • UPC: 662798004419
  • Rugged cast iron housing
  • Universal mounting dimensions
  • Alloy shafting
  • Heavy duty industrial seals
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style D E, Series: 150, 1:1 Gear Ratio, 12 hp, Shaft Input, Shaft Output, 1 in Dia x 2 in L Input, 1 in Dia Output, 1150 rpm Output Maximum Speed, 1150 rpm Input Maximum Speed, 660 in-lb, 5-23/32 in Centre Distance, 1/4 x 1/8 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 8-9/32 in D x 4-1/8 in H

SPECIFICATIONS

Centre Distance      :      5-23/32 in
Dimensions      :      8-9/32 in D x 4-1/8 in H
Efficiency      :      97.5 %
Input Maximum Speed      :      1150 rpm
Input Size      :      1 in Dia x 2 in L
Keyway Size      :      1/4 x 1/8 in Input
Lubrication Type      :      Conventional Oil
Material      :      Cast Iron
Mounting Type      :      Four-Bolt Surface
Output Size      :      1 in Dia
Series      :      150
Type      :      Right Angle Straight Single Reduction Style D E
Input Type      :      Shaft
Output Type      :      Shaft
Horsepower      :      12 hp
Gear Ratio      :      1:1
Output Maximum Speed      :      1150 rpm
Torque Rating      :      660 in-lb
