FFC404

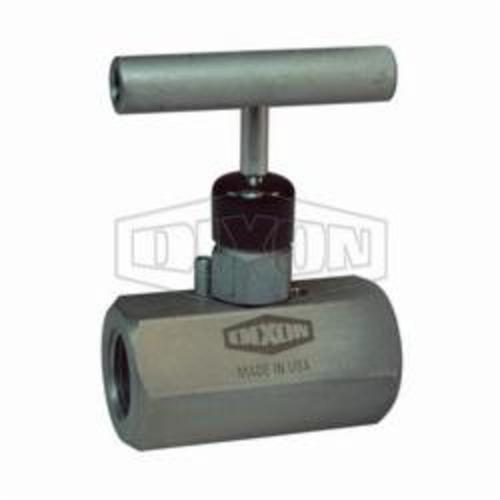

Dixon® FFC404 Mini Needle Valve, 1/2-14 Nominal, FNPT End Style, Steel Body
- CP#:
- Item#: FFC404
- Mfr#: FFC404
- 0.42 flow co-efficient
- FKM o-ring seal and PTFE back-up ring below the threads protects from corrosion and galling
- Stem threads are rolled for strength and ease of operation
- Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/S at 200 psi
- 10000 psi at 200 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Mini Needle Valve, 1/2-14 Nominal, FNPT, 10000 psi, T-Handle Actuator, Steel Body, Nickel Plated
⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
SPECIFICATIONS
| Actuator Type | : | T-Handle |
| Finish | : | Nickel Plated |
| Pressure Rating | : | 10000 psi |
| Nominal Size | : | 1/2-14 |
| End Style | : | FNPT |
| Body Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_ADPW_Catalog.pdf
