FFC102

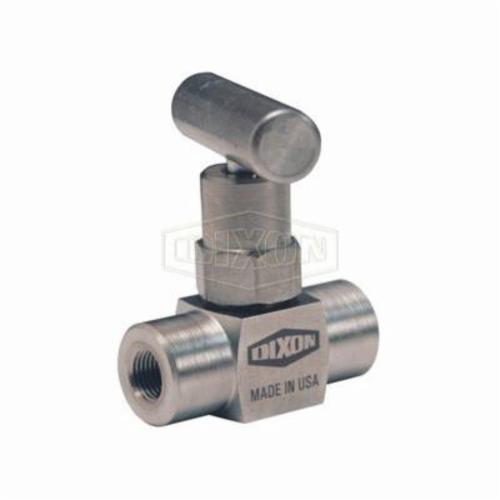

Dixon® FFC102 Mini Needle Valve, 1/4-18 Nominal, FNPT End Style, Steel Body

  • Item#: FFC102
  • Mfr#: FFC102
    • 0.42 flow co-efficient
    • FKM o-ring seal and PTFE back-up ring below the threads protects from corrosion and galling
    • Stem threads are rolled for strength and ease of operation
    • Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/S at 200 psi
    • 10000 psi at 200 deg F pressure
    • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
    • Do not use in connection with drinking water
    • Wash hands after handling
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Dixon® Mini Needle Valve, 1/4-18 Nominal, FNPT, 10000 psi, T-Handle Actuator, Steel Body, Nickel Plated, 1-13/16 in L x 3/4 in W x 2-1/4 in H

⚠ WARNING: This product can expose you to chemicals including one or more chemicals which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SPECIFICATIONS

Actuator Type      :      T-Handle
Dimensions      :      1-13/16 in L x 3/4 in W x 2-1/4 in H
Finish      :      Nickel Plated
Pressure Rating      :      10000 psi
Nominal Size      :      1/4-18
End Style      :      FNPT
Body Material      :      Steel

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_ADPW_Catalog.pdf
