8WF8-B

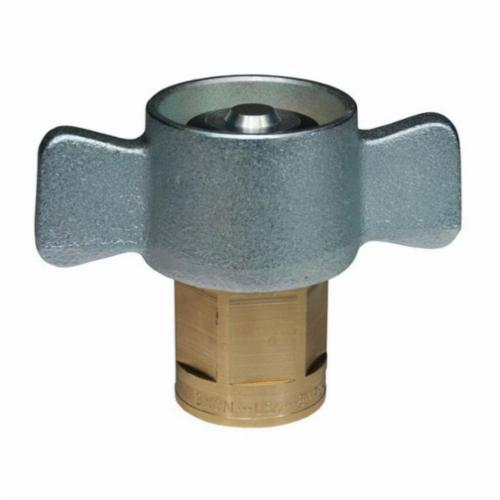

Dixon® 8WF8-B W Series Wing Style Hydraulic Interchange Coupler, 1 in x 1-11-1/2 Nominal, Quick-Connect x Female NPTF, Brass Body/Buna-N Seal, Domestic
- CP#:
- Item#: 78-800
- Mfr#: 8WF8-B
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant trivalent chrome
- Couplings have a TPC-ET back-up ring on the valve sleeve to extend service life
- Rugged steel wing nut for threaded connect and disconnect operation
- Main coupler valve has a bonded face seal to improve seal integrity during pressurized connection/disconnection
- Redundant o-ring on the coupler body will engage nipple for secondary sealing support
- Full hex - ease of installation
- Compact body profile - reduction of side-load stress
- Bonded flange valve - improved impulse performance
- O-ring 'full-connection' indicator - improved connection efficiency
- 12000 psi burst
- 4.49 in OD max
- 1-15/32 in hex
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Dixon® Hydraulic Interchange Coupler, Wing Style, Series: W Series, 1 in x 1-11-1/2 Nominal, Quick-Connect x Female NPTF, 3.33 in Length, 3000 psi, -40 to 250 deg F, Brass Body/Buna-N Seal, Domestic
SPECIFICATIONS
| Length | : | 3.33 in |
| Pressure Rating | : | 3000 psi |
| Series | : | W Series |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | Wing Style |
| Nominal Size | : | 1 in x 1-11-1/2 |
| End Style | : | Quick-Connect x Female NPTF |
| Material | : | Brass Body/Buna-N Seal |
| Domestic/Import | : | Domestic |
