MM9313WI 5H DUH

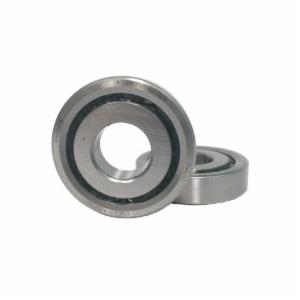

Fafnir® MM9313WI 5H DUH MM9-H Imperial Ball Screw Support Bearing, 2-1/4 in Dia Bore, 3.5433 in OD, 1 Row, 5/8 in W, 9300 lb Dynamic/13700 lb Static Load
- CP#:
- Item#: MM9313WI 5H DUH
- Mfr#: MM9313WI 5H DUH
- UPC: 087796073654
- Designed for maximum axial rigidity, low drag torque and extreme control of lateral eccentricity
- Manufactured to ABEC 9 axial tolerances
- Non-separable angular contact type design (60 deg contact angle)
- Manufactured to ABEC 7 radial and envelope tolerances
- Maximum complement of balls
- Supplied pre-lubricated with heavy duty grease NLGI No.2
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance.
Fafnir® Ball Screw Support Bearing, Imperial, Series: MM9-H, 2-1/4 in Bore Dia, 3.5433 in Outside Dia, 1 Row, 5/8 in W, Open Closure, 9300 lb Dynamic/13700 lb Static, Steel Bearing, Nylon 6/6 Cage, 2200 rpm Maximum, Uncoated
SPECIFICATIONS
| Series | : | MM9-H |
| Bearing Material | : | Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 9300 lb Dynamic/13700 lb Static |
| Maximum Speed | : | 2200 rpm |
| Outside Diameter | : | 3.5433 in |
| Number of Rows | : | 1 |
| Inside Diameter | : | 2-1/4 in |
| Mounted | : | No |
| Measurement System | : | Imperial |
| Width | : | 5/8 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/167/Fafnir_MM9313WI_5H_DUH_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/64/Fafnir_5215_Catalog.pdf
