6003-ZZ

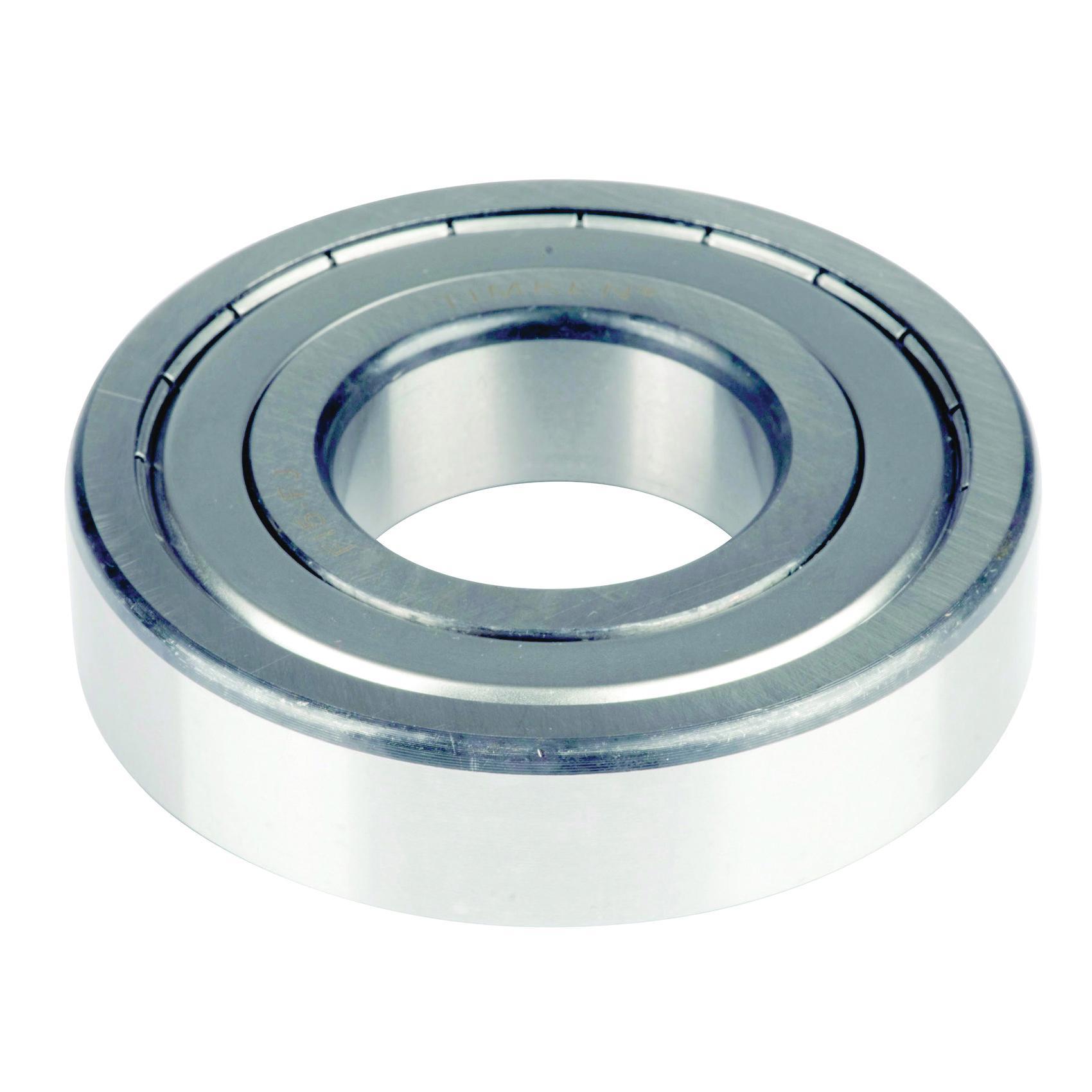

Timken® 6003-ZZ 6000 Standard Straight Bore ISO Deep Groove Radial Ball Bearing, 17 mm Dia Bore, 35 mm Dia Outside, 1 Rows, 10 mm W, 1348.854 lb Dynamic/741.87 lb Static Load
- CP#:
- Item#: 6003 ZZ BEARING
- Mfr#: 6003-ZZ
- UPC: 087796292413
- Super finished raceways
- Quiet operations
- ISO standard interchangeable dimensions
- Shields provides some contamination protection and lubricant retention
- Used in high speed applications like electric motors
- Premium grease for high performance, low torque and less noise
- C0 normal internal clearance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability and capability to run at high speeds. Most bearings in the 6000 series up to 60 mm bore can be made available in stainless steel (AISI 440C material) upon request.
Timken®, 6003-ZZ, ISO Deep Groove Radial Ball Bearing, Standard Straight Bore, Series: 6000, 17 mm Bore, 35 mm OD, 1 Rows, 10 mm Width, Dual Shield Closure, 1348.854 lb Dynamic/741.87 lb Static Load, Steel Bearing, 19000 rpm Grease/28000 rpm Oil Maximum, -50 to 120 deg C
SPECIFICATIONS
| Series | : | 6000 |
| Bearing Material | : | Steel |
| Load Capacity | : | 1348.854 lb Dynamic/741.87 lb Static |
| Maximum Speed | : | 19000 rpm Grease/28000 rpm Oil |
| Outside Diameter | : | 35 mm |
| Number of Rows | : | 1 |
| Inside Diameter | : | 17 mm |
| Mounted | : | No |
| Measurement System | : | Metric |
| Width | : | 10 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/10000/Timken_16004_C3_Catalog.pdf
