03018ET3ER286TC-W22

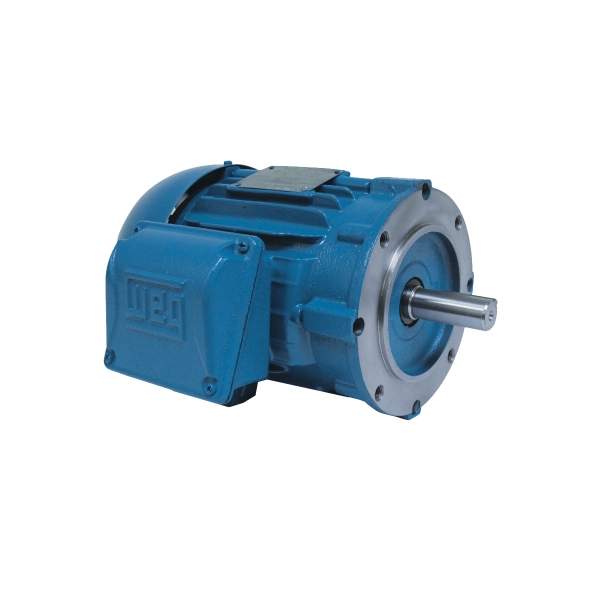

WEG 03018ET3ER286TC-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 30 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 286TC Frame, 1765 rpm Speed, C-Face Footless Mount
- CP#:
- Item#: 572437
- Mfr#: 03018ET3ER286TC-W22
- Regreasable bearings
- Gasketed conduit box
- All cast iron construction, including terminal box and fan cover
- IP55 rating
- Corrosion proof drains
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 30 hp, 208/230/460 VAC, 77.6 to 70.2/35.1 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 286TC Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 88.1 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 30.173 in L Dimensions
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Manual_N.pdf -
Warranty Information https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_01018ET3ER215TCW22_Warranty_N.pdf -
Full Engineering Drawing https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_03018ET3ER286TC_W22_Full_Engineering_Drawing.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/WEG_03018ET3ER286TC_W22_Specification_Sheet.pdf
